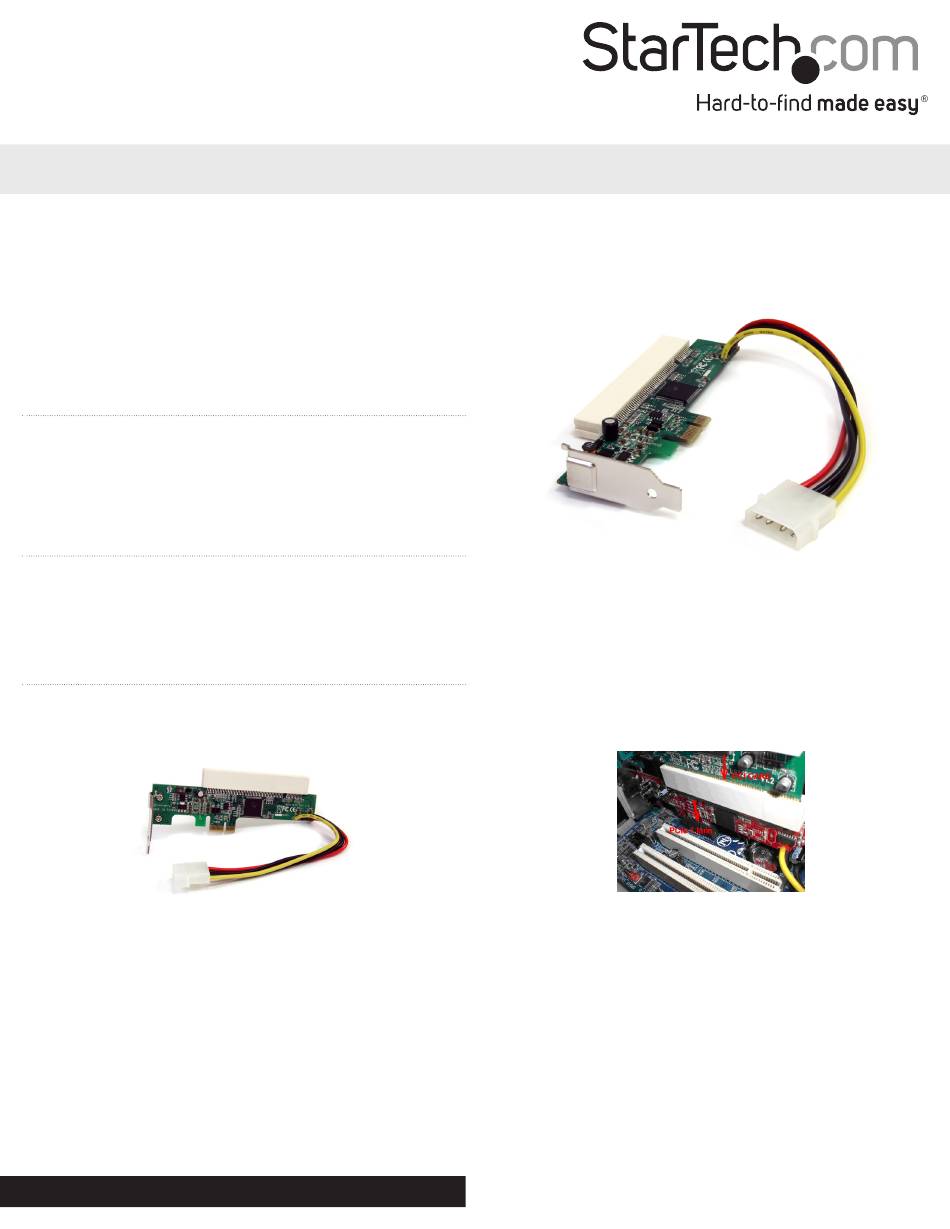

StarTech.com PEX1PCI1 Instruction Manual

Instruction Manual
PCI Express to PCI Card
PEX1PCI1
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1x PCI Express to PCI Card
• 1x Spare Full Profile Bracket
• 1x Instruction Manual
System Requirements
• PCI Express enabled computer system
• Microsoft Windows® 2000/XP/Vista/7
Installation
NOTE: If the spare PCIe bracket is used, the bracket on the PCI card
must be removed. Full profile PCI cards may not fit in the system.
1. Insert the low profile PCI card into the white PCI Slot connector on
the top of the adapter card.
2. Install the adapter card into the motherboard PCIe x1 slot.
For the most up-to-date information, please visit: www.startech.com
NOTE: PCIe slots are backwards compatible with smaller PCIe cards,
so a x4 or greater slot can be used.
*Installation photos are for
3. Connect the 4 pin power connector to the computer power supply.
4. Power on the computer and load the operating system.
NOTE: No drivers are needed to install the adapter card. It only acts
as a bridge adapter for the PCI card.
*actual product may vary from photos
reference only*
Manual Revision: 12/12/2018
