Instruction Manual
16 Port Low Profile RS232 PCI Express Serial
Card & Cable
PEX16S952LP
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 12/07/2011
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com PEX16S952LP
Summary of Contents for StarTech.com PEX16S952LP
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 12/07/2011...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................1 Jumper Configuration ..........................1 Hardware Installation ..........................2 Driver Installation ..................3 Windows 2000/XP/Server 2003 ......................3 Windows Vista ............................3 Verifying Installation ................4 Windows 2000/XP/Vista/7 ........................4 Pinout .......................4 Specifications ..................5 Technical Support ..................8... -
Page 4: Introduction

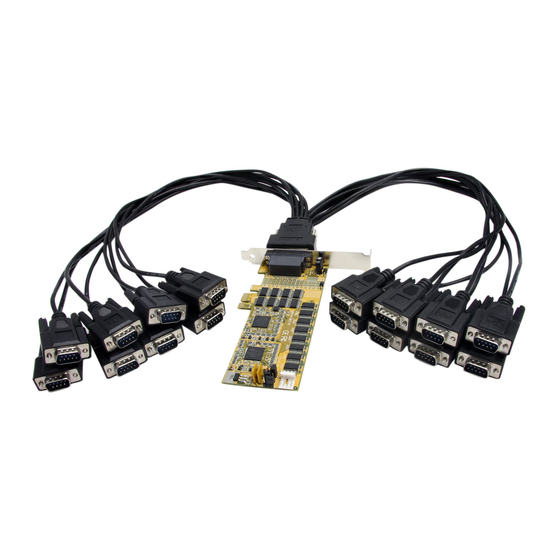

Introduction The PEX16S952LP PCI Express serial card (16950 UART) lets you turn a low profile PCIe slot into sixteen RS232 (DB9) serial connections. Packaging Contents • PEX16S952LP card • 16-port breakout cable • Full Profile bracket • Driver CD • Instruction Manual System Requirements • PCI Express enabled computer system with available slot... -
Page 5: Hardware Installation
JP1 and JP3 - Power over Serial (pin-9) Enable or disable power output on pin 9 for the DB9 serial ports S1 to S8 (JP1) and S9 to S16 (JP3). Disable power output on pin-9 of the DB9 connector (Default) Enable power output on pin-9 of the DB connector JP2 - Power over Serial Voltage Selector Internal 12V: 12V power is drawn from the PCIe bus... -
Page 6: Driver Installation
4. Insert the card into the open PCI Express slot and fasten the bracket to the rear of the case. 5. Place the cover back onto the computer case. 6. Insert the power cable into the socket on the power supply and reconnect all other connectors removed in Step 1. -
Page 7: Verifying Installation
Verifying Installation Windows 2000/XP/Vista/7 From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. Double-click on the Ports (COM & LPT) option. The appropriate number of additional COM ports should be visible. -
Page 8: Specifications
Specifications Bus Interface PCI Express rev 1.1 16 x DB9 male Connectors (via breakout cable) Chipset ID PLX/Oxford OXPCIe958 Serial Protocol RS-232 Serial UART 16C950 Maximum Data Transfer Rate 921.6 Kbps Operating Temperature 0°C ~ 55°C (32°F ~ 131°F) Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F) Humidity 5~95% RH... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
