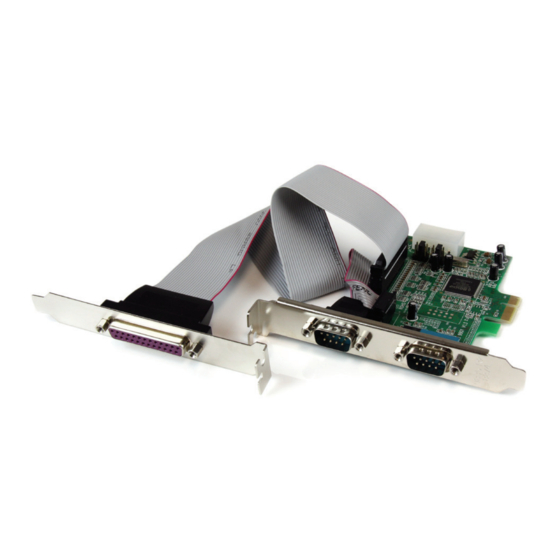

Dual Profile PCI-Express RS232 Serial Adapter Card
(2 Port Serial, 1 Port Parallel)
PEX1S553/ PEX1S553LP
PEX2S553/ PEX2S553LP
PEX2S5531P
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 10/24/2012
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com PEX1S553
Summary of Contents for StarTech.com PEX1S553
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/24/2012...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ...............................1 Features ................................1 Package Contents .............................1 Hardware Guide ...............................2 Installation................................2 Setting Power Mode ..........................3 Hardware Installation ..........................3 Software Installation ..........................4 Verifying Installation ..........................5 Specifications ..............................6 Technical Support ............................7 Warranty Information ............................7 Instruction Manual... -
Page 4: Introduction
Introduction Thank you for your purchase of a StarTech.com Dual Profile PCI Express I/O card. This convenient I/O solution utilizes a native, single-chip design for maximum performance and reliability, and includes an optional low profile bracket that allows the card to be installed in virtually any size/ form factor case. -
Page 5: Hardware Guide
Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 6: Setting Power Mode
Setting Power Mode This card is specially designed to allow for power output from the ninth pin of the DB9 connector(s) for devices that support power over serial. This card allows users to set each port with 5V, 12V, or RI (no power). Users can also choose to draw the necessary power from the system power supply by connecting to the LP4 power connector. -
Page 7: Software Installation
Software Installation When the computer is booted up following the physical installation of the PCI Express card, the operating system will detect the presence of the card within the computer system and prompt for software installation: 1. The Found New Hardware Wizard will appear. When asked if you want Windows to search for software, select No, not this time, then click Next to continue: 2. -
Page 8: Verifying Installation
Verifying Installation To verify that the installation was successful in Windows 2000/XP/Vista: 1. Right-click on My Computer and select Manage to open the Computer Management window. 2. In the left pane, select Device Manager. 3. In the right pane, click on Ports (COM & LPT). You should see the newly added port(s) listed here: Instruction Manual... -
Page 9: Specifications
Specifications PEX1S553 PEX2S553 PEX2S5531P PEX1S553LP PEX2S553LP Bus Type PCI Express x1 Moschip Chipset ID Moschip MCS9922CV-AA MCS9901CV-CC Parallel: Maximum 2.7 Mbps Serial: Serial: Data Transfer 460.8 Kbps 460.8 Kbps Serial: Rate 460.8 Kbps ® Windows 2000/XP/2003/Vista/7 ® OS Support Linux Kernel 2.6.11 and above... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
