Instruction Manual
1S1P Mini PCI Express Serial Parallel Card
with 16950 UART
PEX1S1PMINI
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/01/2012
Advertisement
Table of Contents
Related Manuals for StarTech.com PEX1S1PMINI
Summary of Contents for StarTech.com PEX1S1PMINI

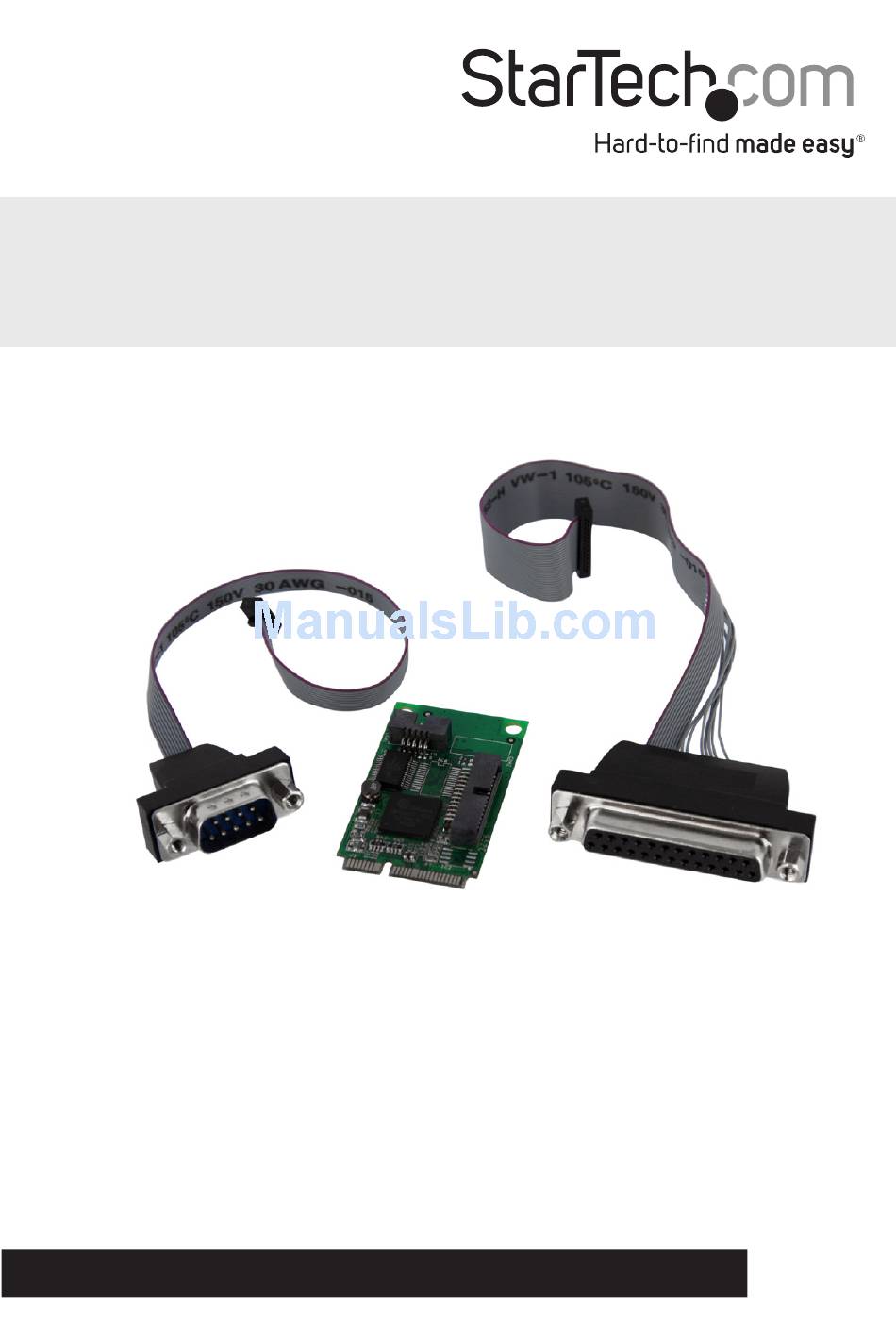

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/01/2012...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ................................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation................................2 Hardware Installation ..........................2 Driver Installation ............................2 Verifying the Installation ........................2 Specifications ..............................3 Technical Support ............................4 Warranty Information ............................4 Instruction Manual... -
Page 4: Introduction

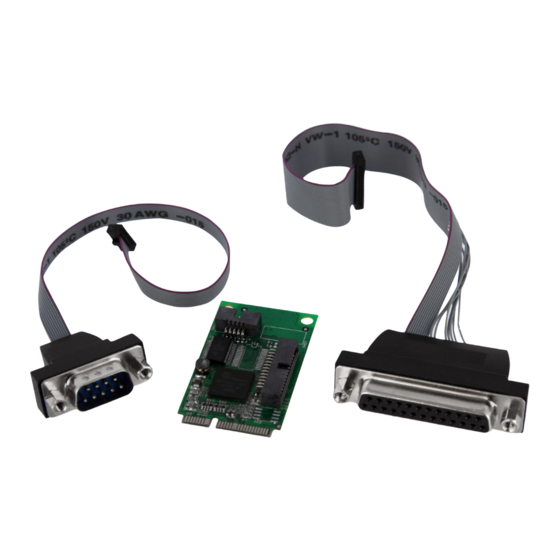

Introduction The PEX1S1PMINI 1S1P Mini PCI Express Serial Parallel Card w/ 16950 UART turns a mini PCIe slot into 1 RS232 (DB9) Serial port and 1 Parallel port. A native PCI Express single chip design allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the CPU load by as much as 48% over conventional bridge chip cards. -
Page 5: Installation
Installation Hardware Installation 1. Connect both of the adapter cables in the respective header connectors on the Mini PCI Express adapter card. 2. Line up and install the Mini PCI Express adapter card with the Mini PCI Express slot on the motherboard. -
Page 6: Specifications
Specifications Host Interface PCI Express rev 1.1 (3.3V) 1 x DB25 female External Connectors 1 x DB9 male 2x5-pin header (serial) Internal Connectors 2x13-pin header (parallel) Chipset Oxford OXPCIe952 UART 16C950 Serial: RS-232 Operating Modes Parallel: SPP/EPP/ECP - IEEE1284 Dimensions 50.0mm x 30.0mm Windows®... -
Page 7: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 8 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
