Summary of Contents for StarTech.com PEX1000MMSC

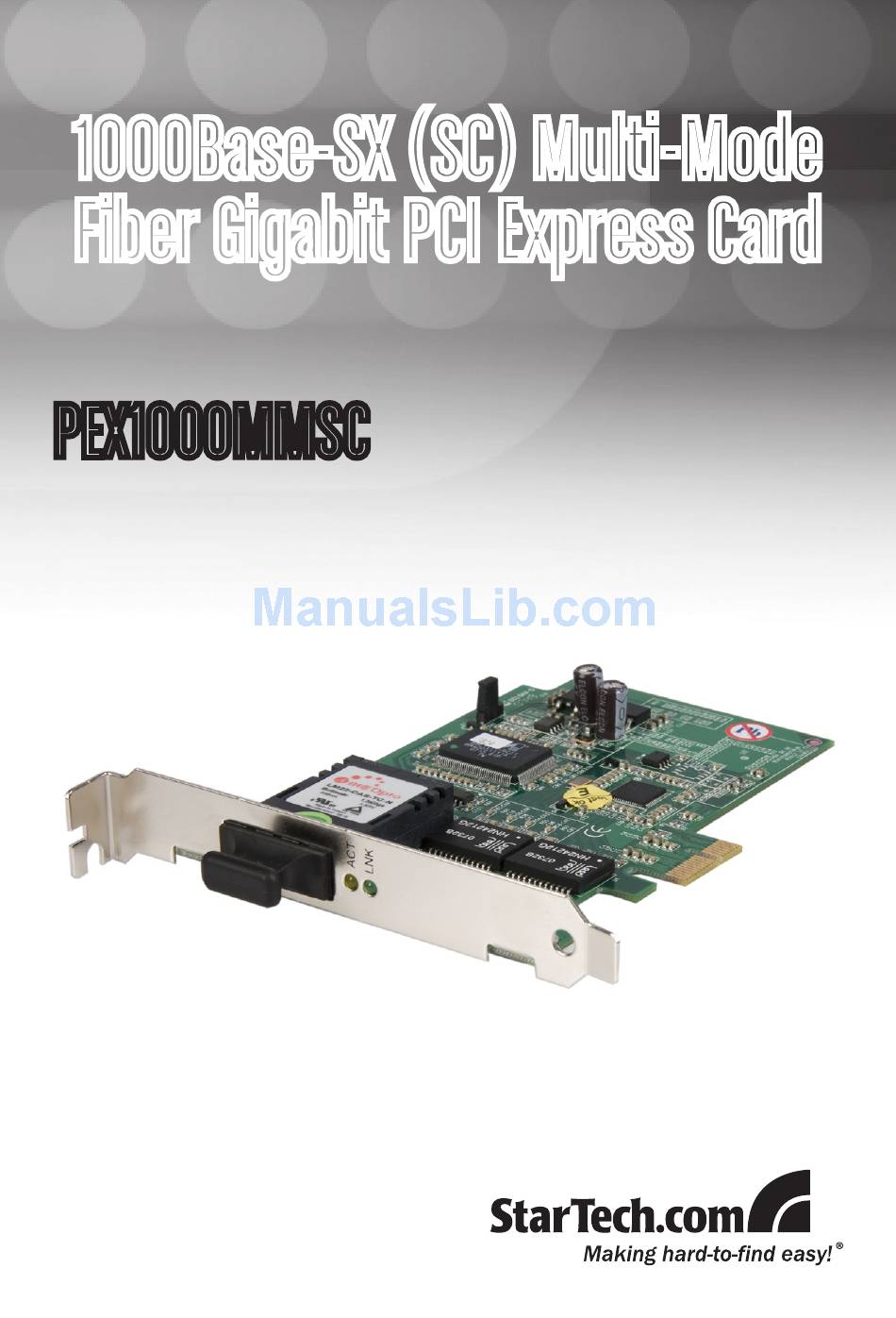

- Page 1 1000Base-SX (SC) Multi-Mode Fiber Gigabit PCI Express Card PEX1000MMSC...
- Page 2 StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowl- edgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all...
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ................... 1 Package Contents ...............1 Installation ..................2 Hardware Installation ..............2 Connecting to a Network .............3 Software Installation ..............4 Specifications ................6 Technical Support ................. 7 Warranty Information ..............7... -
Page 4: Introduction
Thank you for purchasing a StarTech.com Multi Mode Fiber Gigabit Ethernet Card. A simple solution for connecting a host computer directly to a fiber network, the PEX1000MMSC provides full gigabit performance, ensuring the fastest network connections and reliable performance. Features •... -
Page 5: Installation
Be sure that you are properly grounded before opening your computer case or touching your card. StarTech.com recommends that you wear an anti- static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself... -
Page 6: Connecting To A Network
Instruction Manual Connecting to a Network Please note: You must connect the PCI Express Fiber Gigabit Ethernet Adapter to the network before installing the network driver. For connector type, cabling requirements, and maximum segment dis- tance when connecting the PCI Express Gigabit Ethernet Adapter to your network, please refer to the following tables. -
Page 7: Software Installation
Check the LNK (Link) LED. The LED will come on when the PCI Ex press Fiber Gigabit Ethernet Adapter is receiving a good link signal from the connected device, a switch. Software Installation Once PEX1000MMSC has been installed in the computer, turn on the power to the computer. When the Found New... - Page 8 Instruction Manual Installation will begin... Click Finish to complete the driver installation.
-
Page 9: Specifications
Instruction Manual Specifications IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/100Base-FX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/1000Base-LX Applicable Standards IEEE802.3x IEEE802.1Q IEEE802.1p IEEE802.3ad LED Indicators Link, Activity Operating Temperature 0°C to 45° C (32°F to 113°F) Storage Temperature -10°C to 70°C (14°F to 158°F) Humidity 5%-95% non-condensing Chipset Realtek RTL8168B &... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
