Dual Profile PCI-Express RS-232 Serial Card
(2 port Serial, 1 port Parallel*)
*PEX2S5521P
PEX1S552
PEX2S552
Instruction Guide

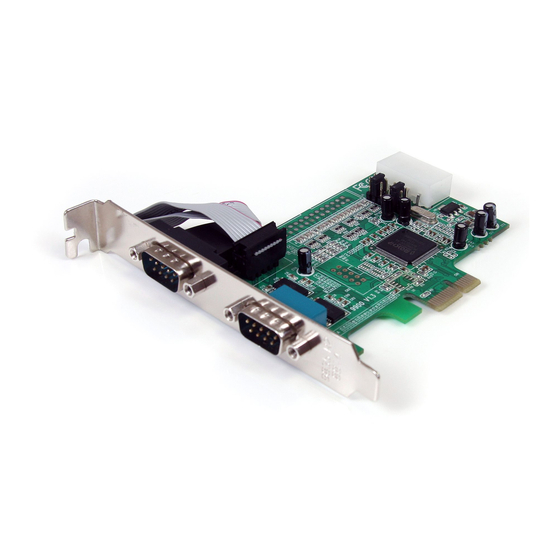

*PEX2S5521P shown

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PEX2S5521P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for StarTech.com PEX2S5521P

  • Page 1 Dual Profile PCI-Express RS-232 Serial Card (2 port Serial, 1 port Parallel*) *PEX2S5521P PEX1S552 PEX2S552 Instruction Guide *PEX2S5521P shown...
  • Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowl-...
  • Page 3: Table Of Contents

    Instruction Manual Instruction Manual Table of Contents Introduction ................... 1 Features ..................1 Package Contents ...............1 Hardware Guide ................2 Installation ..................2 Hardware Installation ..............2 Software Installation ..............4 Verifying Successful Installation ..........6 Specifications ................7 Technical Support ................. 8 Warranty Information ..............8...
  • Page 4: Introduction

    Introduction Thank you for your purchase of a StarTech.com PEX1S552/PEX2S552/ PEX2S5521P Dual Profile PCI Express card. This convenient I/O solution utilizes a native, single-chip design for maximum performance and reli- ability, and includes an optional low profile bracket that allows the card to be installed in virtually any size/form factor case.
  • Page 5: Hardware Guide

    (PEX2S552, PEX2S5521P) Power Port Serial Port #1 **PEX2S5521P Shown Installation WARNING! PCI Express cards, like all computer equipment, can be se- verely damaged by static electricity. Be sure that you are properly ground- ed before opening your computer case or touching your card. StarTech.
  • Page 6: Hardware Installation

    Retain the screw! You will need it to secure the card later. PEX2S5521P Only: Please ensure that the metal plate that covers the rear bracket adjacent to the above mentioned bracket is vacant, so that it can be used for parallel port installation).
  • Page 7: Software Installation

    Instruction Manual see diagram on previous page), then secure the parallel port to the slot adjacent to the one used to secure the main PEX2S5521P board. Once the card (and additional port, if necessary) are secured to the motherboard (and within the case), replace the computer cover and power on the computer, then proceed to the next section, titled Soft ware Installation.
  • Page 8 Instruction Manual The Found New Hardware Wizard will appear. When asked if you want Windows to search for software, select No, not this time, then click Next to continue: On the screen that follows, select Install from a list or specific location, then click on Next.
  • Page 9: Verifying Successful Installation

    Instruction Manual you are installing has not passed Windows Logo testing. Please click on Continue Anyway: Once the driver files have been installed, you will be notified that the Wizard has finished installing the software for “High Speed PCIe Serial Port”.
  • Page 10: Specifications

    Instruction Manual Specifications PEX1S552 PEX2S552 PEX2S552 Bus Type PCI Express Chipset Moschip MCS9901CV Parallel: Maximum 2.7 Mbps Serial: Serial: Data Transfer 460.8 Kbps 460.8 Kbps Serial: Rate 460.8 Kbps Windows® 2000/XP/2003/Vista™ OS Support Linux Kernel 2.6.11 and above MAC OS 10.4 & above 2 x Serial Connectors 1 x RS-232 Serial...
  • Page 11: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or...
