PCI Express Parallel Card
PEX1P
PEX1PLP
Instruction Manual

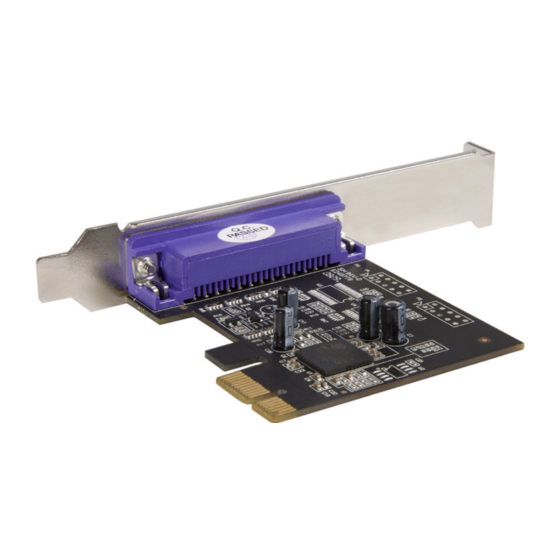

*PEX1P shown

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PEX1P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for StarTech.com PEX1P

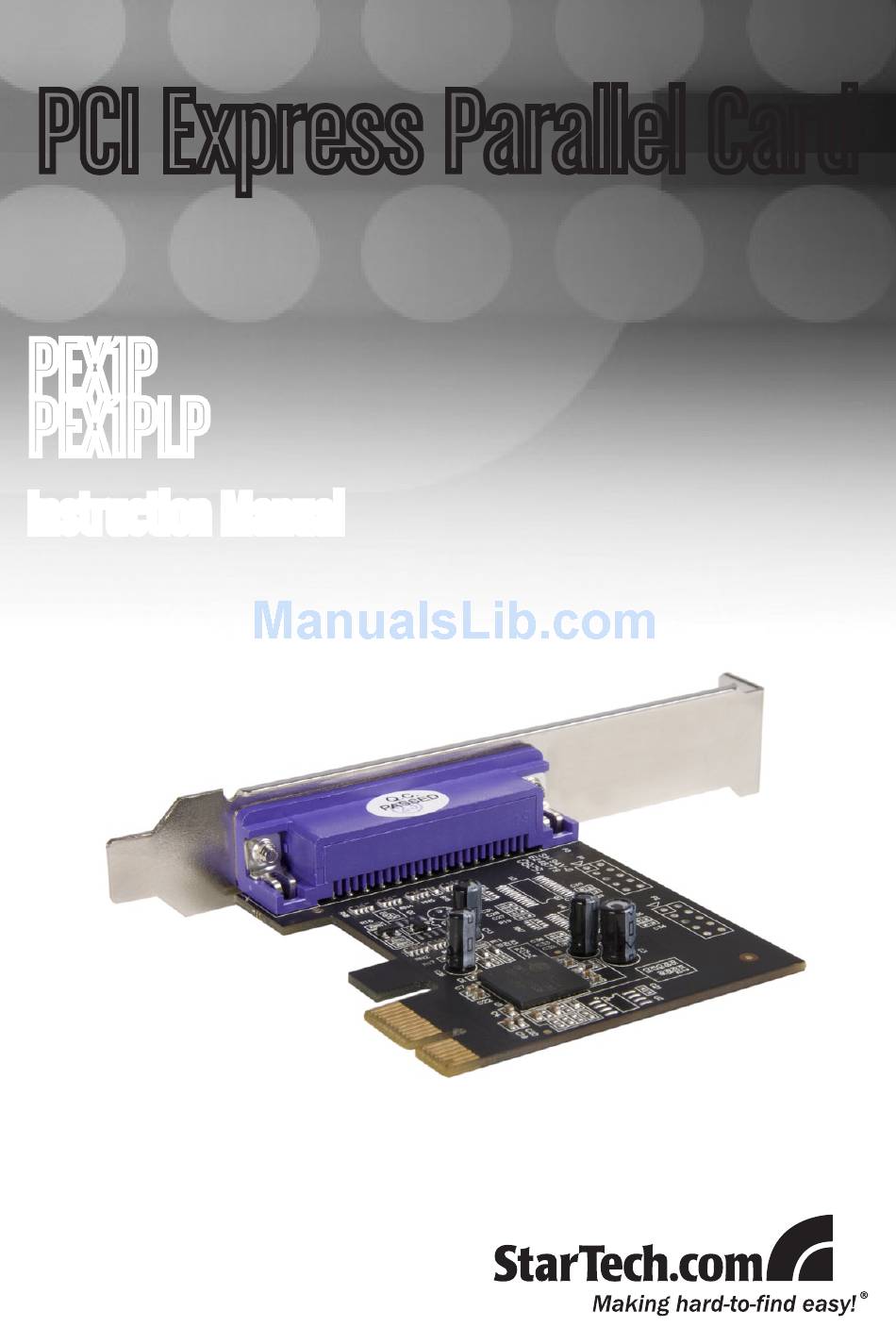

  • Page 1 PCI Express Parallel Card PEX1P PEX1PLP Instruction Manual *PEX1P shown...
  • Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
  • Page 3: Table Of Contents

    Instruction Manual Instruction Manual Table of Contents Introduction ..............1 Features ..................1 Package Contents ...............1 System Requirements ..............1 Installation ............... 2 Hardware Installation ..............2 Software Installation ..............3 Verifying Installation ..............4 Specifications ..............5 Technical Support ............6 Warranty Information ............6...
  • Page 4: Introduction

    1 x PCI Express Parallel Card • 1 x Full-Profile Bracket (PEX1PLP only - Low Profile bracket attached) • 1 x Low-Profile Bracket (PEX1P only - Full Profile bracket attached) • 1 x Instruction Manual • 1 x Driver CD System Requirements •...
  • Page 5: Installation

    Be sure that you are properly grounded before opening your computer case or touching your card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable,...
  • Page 6: Software Installation

    Instruction Manual Software Installation Windows 2000/XP/Server 2003 When the Found New Hardware wizard appears on the screen, insert the Driver CD into your CD/DVD drive. If you are prompted to connect to Windows Update, please select the “No, not this time” option and click Next.
  • Page 7: Verifying Installation

    Instruction Manual Verifying Installation Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7 From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. Double-click on the “Ports (COM & LPT)” option. A new ‘PCI Express Parallel Port’...
  • Page 8: Specifications

    -20°C ~ 60°C (-4°F ~ 140°F) Humidity 5% ~ 85% RH PEX1P: 120.0mm x 110.0mm x 21.0mm Dimensions PEX1PLP: 80.0mm x 110.0mm x 21.0mm PEX1P: 65g Weight PEX1PLP: 55g Windows 2000/XP/Server 2003/ Compatible Operating Systems Vista/Server 2008 R2/7, DOS, Linux...
  • Page 9: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or...
  • Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
