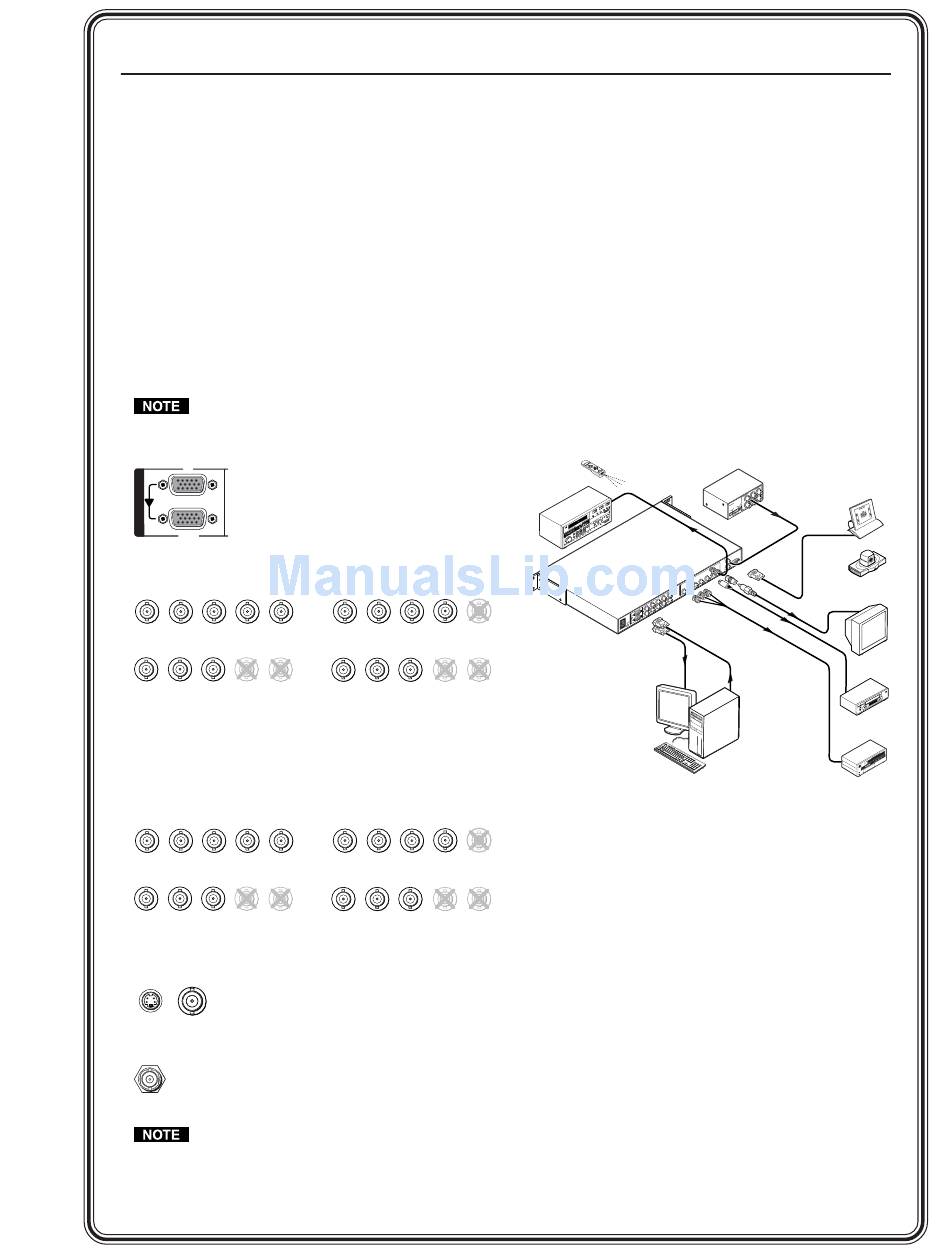

Quick Start — VSC 900/900D
Installation
Step 1
Turn off power to the scan converter and any input
and output devices, and remove power cords from
them.
Step 2
Install the four rubber feet on the bottom of the
VSC, or mount the VSC in a rack.
Step 3
Rear panel video inputs
Attach an input device to the scan converter.
Buffered loop-trhough connectors allow for
local monitor output.
Input VGA connector
1
I
N
P
U
T
S
RGB
Input BNC connectors
R G B H V
/R-Y /HV
/Y /B-Y
RGBHV input
R G B H V
/HV
/R-Y /Y /B-Y
RGsB input
Step 4
Rear panel video outputs
Attach output devices to the VSC scan converter.
Output BNC connectors
R /R-Y G /Y B /B-Y H /HV V
RGBHV output
R /R-Y G /Y B /B-Y H /HV V
RGsB output
Output S-video and composite video connectors
VIDEO
S-VIDEO
Output SDI connector for SDI output
SDI
The scan converter will simultaneously
output RGB or component video, S-video,
composite video, and SDI (VSC 900D).
R G B H V
/HV
/R-Y /Y /B-Y
RGBS input
R G B H V
/Y /HV
/R-Y /B-Y
Component video input
(R-Y, Y, B-Y)
R /R-Y G /Y B /B-Y H /HV V
RGBS output
R /R-Y G /Y B /B-Y H /HV V
Component video output
(R-Y, Y, B-Y)
Step 5
Plug the scan converter, and input and output
devices into a grounded AC source, and turn on
the input and output devices.
Step 6
Use the LCD menu screens (see the next page) or
RS-232 programming to configure the VSC. See
chapter two for installation and operation
procedures, and see chapter three for
programming information.
Application Example
Extron
VSC Remote
Infrared Remote
SDI
Video Editor
Y
H/ H-
Y
B/ B-
G/ Y
O
U R- Y
T R/
P
V U
T
S
H V
/H
V
2 B
/B -Y
H V
G /H
/Y
B
/B -Y
R -Y
/R G- Y
Y
B- Y,
Y,
1 R -Y B/ R-
/R RG
I
N
0.3A P
-24 0V
100 U B
T RG
S
Extron
0 Hz
50/6
VSC 900D
Computer-to-Video
Scan Converter
Hi-Resolution Workstations
Extron
BBG 6 A
Black Burst/
ST
KB UR Audio Generator
BL AC 5
3
1 6
DIO 4
6 A D AU
G AN
BB UR ST 2
AC KB TO R
BL NE RA Z ON S
GE 1 KH RB AR
R AU DIO R 3 CO LO
WE 1 2
PO L
12V X
MA
.2A
RS-232 Control
2
IN -23
RS /42 2
G T
E OU
N
L
O
D1 C
O K
VI DE
O
IDE
S-V
V
Videoconferencing
System
or
Monitor
Composite
VCR
S-video
Betacam
Tape Deck
Component
