Step 7 —Test Read Rate
With this test you can learn the percentage of decodes per images
captured by observing the LEDs (20% through 100%) on the top of
the MS-3 which are active during a read rate test. If the results are
not satisfactory, move on to Step 8 — "Calibrate the Scanner".
By ESP
After connecting to the scanner, ESP will open in Setup Mode.
1. Click the Test
read rate test.
2. Follow the instructions in Setup Mode.
3. To end the read rate test, click the
By EZ Button
1. Press and hold the
button on the MS-3 until
you hear one beep and
see one LED momentarily
turn amber. This will
signal the beginning of
the read rate routine.
2. To end the read rate test
press the
and quickly release.
1. This assumes that the default functions of the test button have not been re-programmed.
MS-3 Laser Scanner Quick Start Guide
button in Setup Mode to begin the
Test
1
Test button
Stop button.

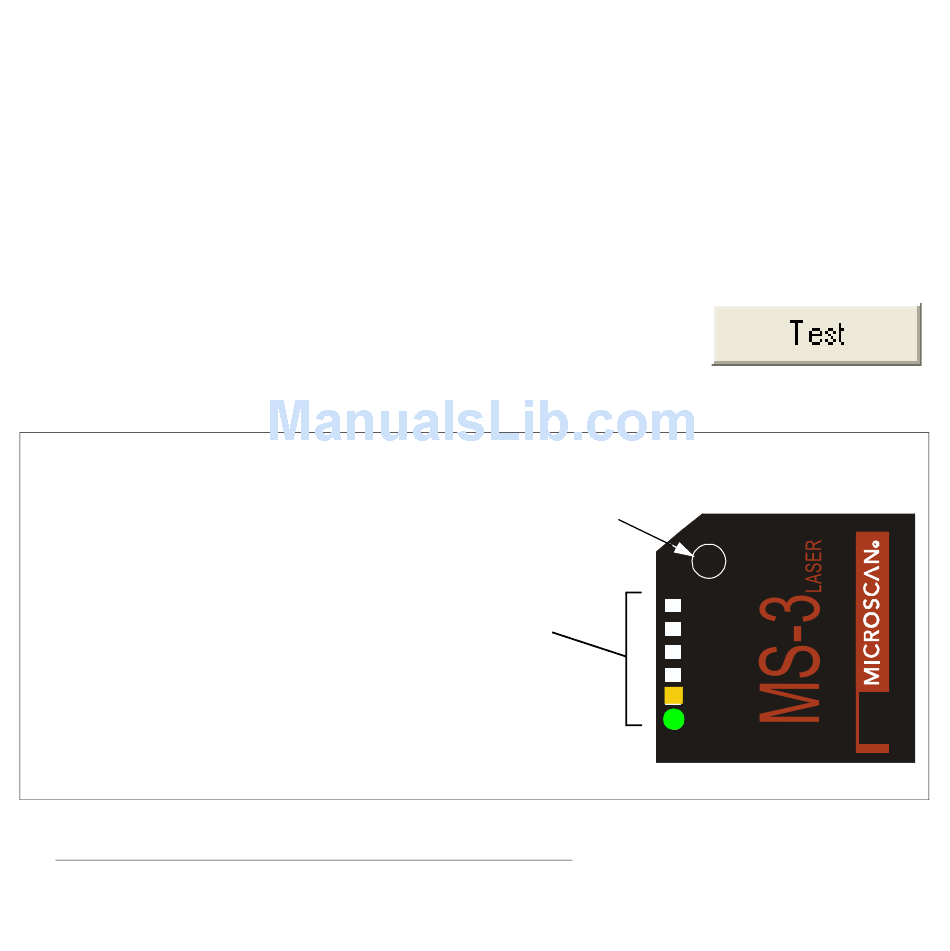

EZ Button
Read rate
performance
LEDs
Read Rate
TEST
100% GR
80% ST
60%
40%
20%
PWR
