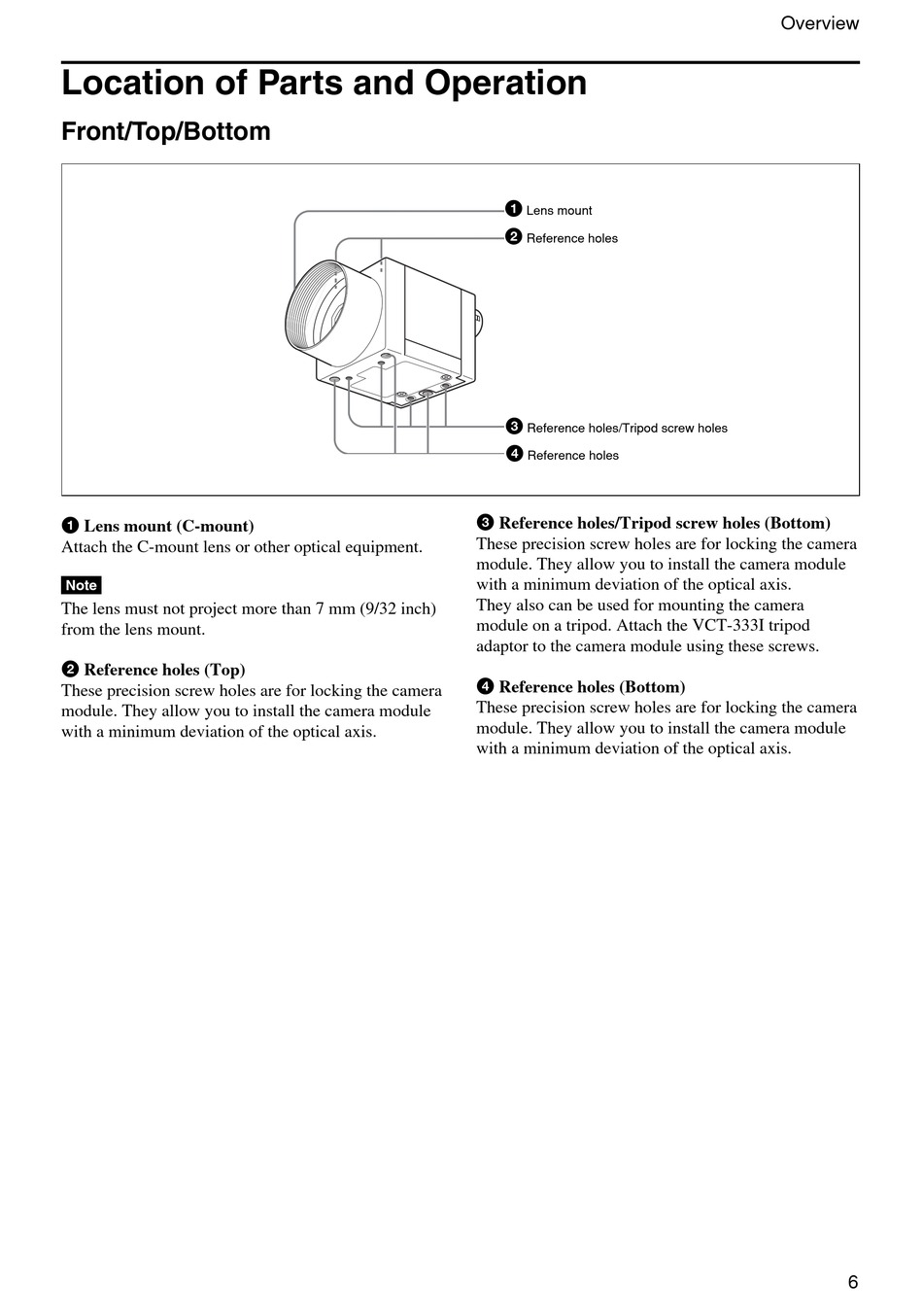

Location of Parts and Operation

Front/Top/Bottom

1 Lens mount (C-mount)
Attach the C-mount lens or other optical equipment.
Note
The lens must not project more than 7 mm (9/32 inch)
from the lens mount.
2 Reference holes (Top)
These precision screw holes are for locking the camera
module. They allow you to install the camera module
with a minimum deviation of the optical axis.
1
Lens mount
2
Reference holes
3
Reference holes/Tripod screw holes
4
Reference holes
3 Reference holes/Tripod screw holes (Bottom)
These precision screw holes are for locking the camera
module. They allow you to install the camera module
with a minimum deviation of the optical axis.
They also can be used for mounting the camera
module on a tripod. Attach the VCT-333I tripod
adaptor to the camera module using these screws.
4 Reference holes (Bottom)
These precision screw holes are for locking the camera
module. They allow you to install the camera module
with a minimum deviation of the optical axis.
Overview
6
