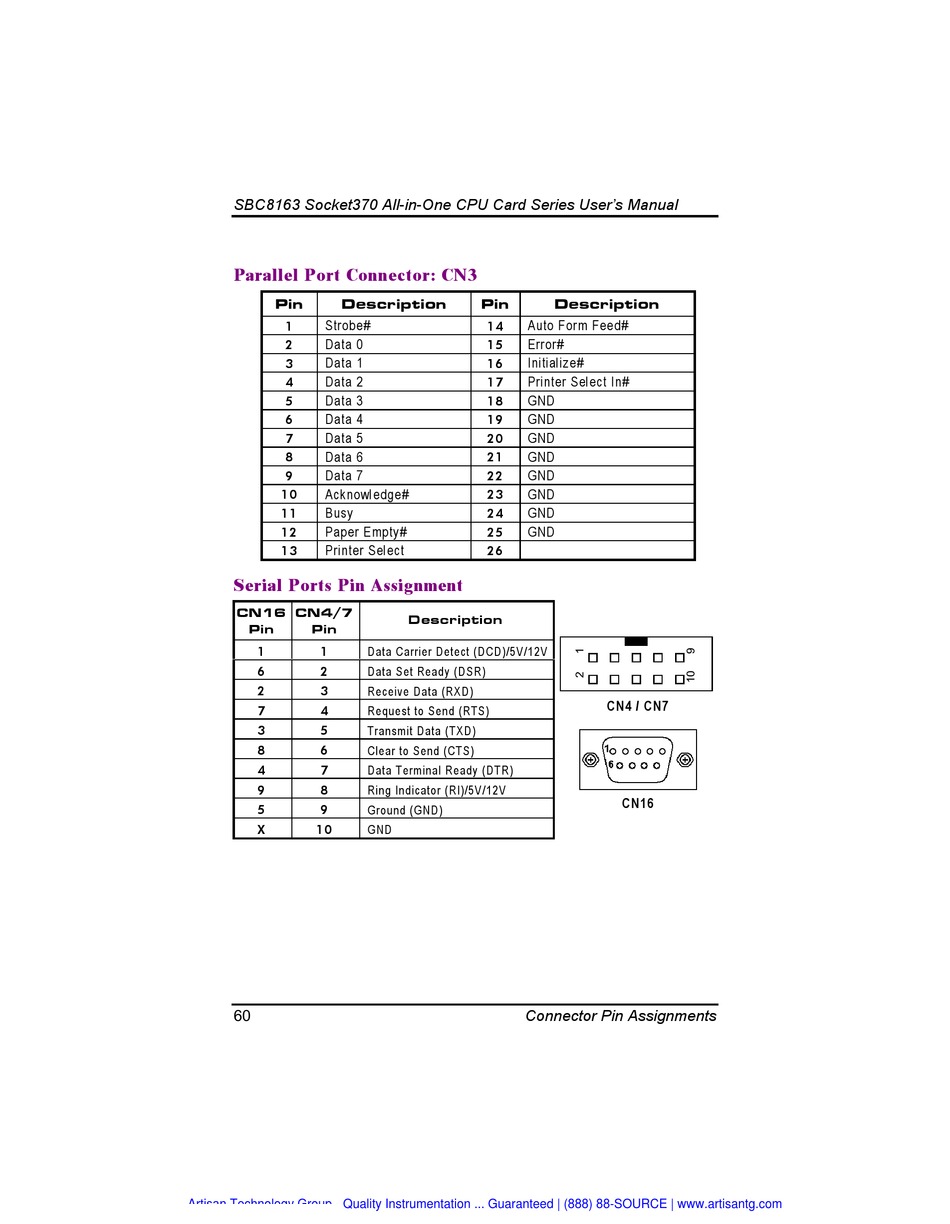

Parallel Port Connector: CN3

Pin Description
Strobe#
1
Data 0
2
Data 1
3
Data 2
4
Data 3
5
Data 4
6
Data 5
7
Data 6
8
Data 7
9
Acknowledge#
10
Busy
11
Paper Empty#
12
Printer Select
13

Serial Ports Pin Assignment

CN16 CN4/7
Pin Pin
1 1
6 2
2 3
7 4
3 5
8 6
4 7
9 8
5 9
X 10
.&
