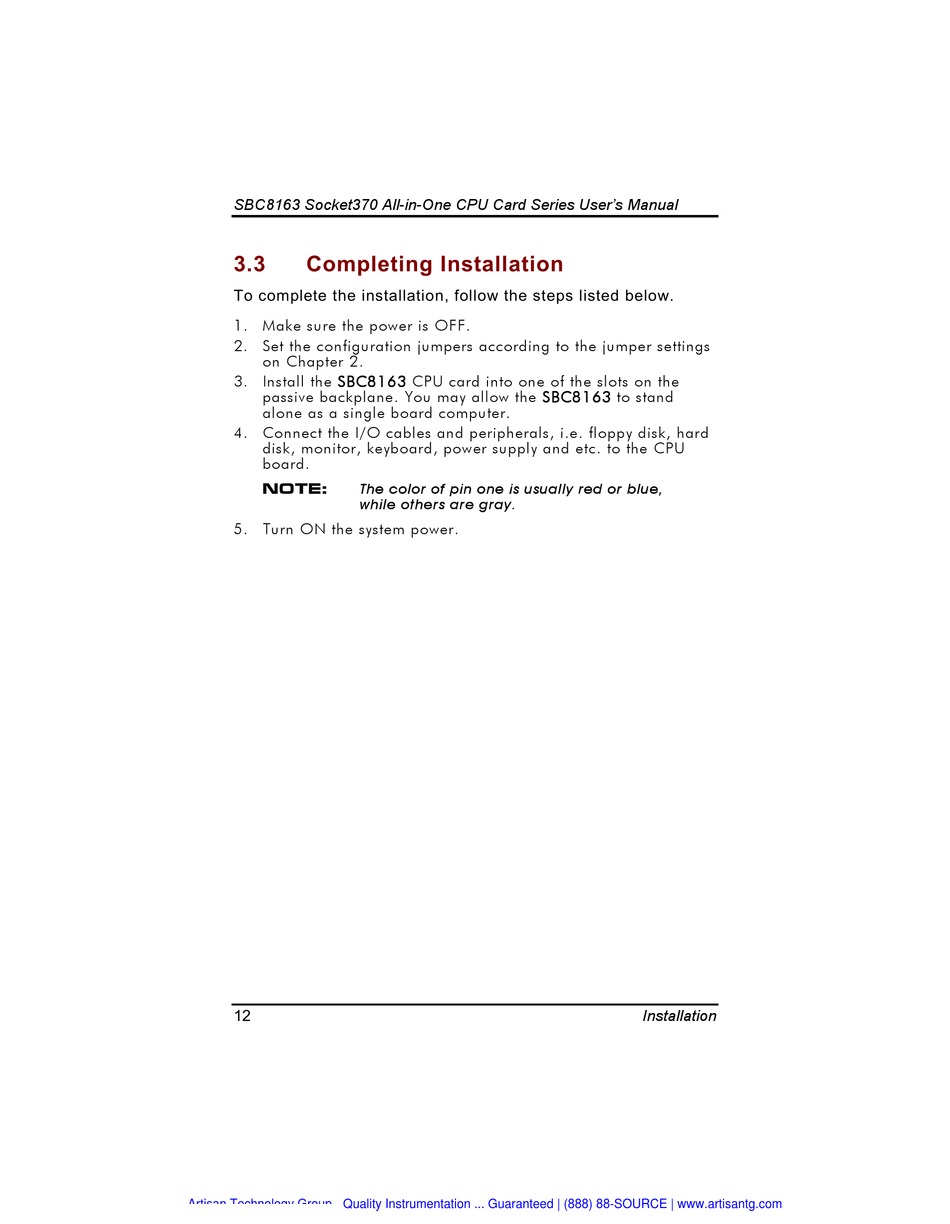

SBC8163 Socket370 All-in-One CPU Card Series User's Manual
   " * +




1. Make sure the power is OFF.
2. Set the configuration jumpers according to the jumper settings
on Chapter 2.
3. Install the SBC8163 SBC8163 CPU card into one of the slots on the
SBC8163 SBC8163
passive backplane. You may allow the SBC8163
alone as a single board computer.
4. Connect the I/O cables and peripherals, i.e. floppy disk, hard
disk, monitor, keyboard, power supply and etc. to the CPU
board.
NOTE:
The color of pin one is usually red or blue,
while others are gray.
5. Turn ON the system power.
!,
