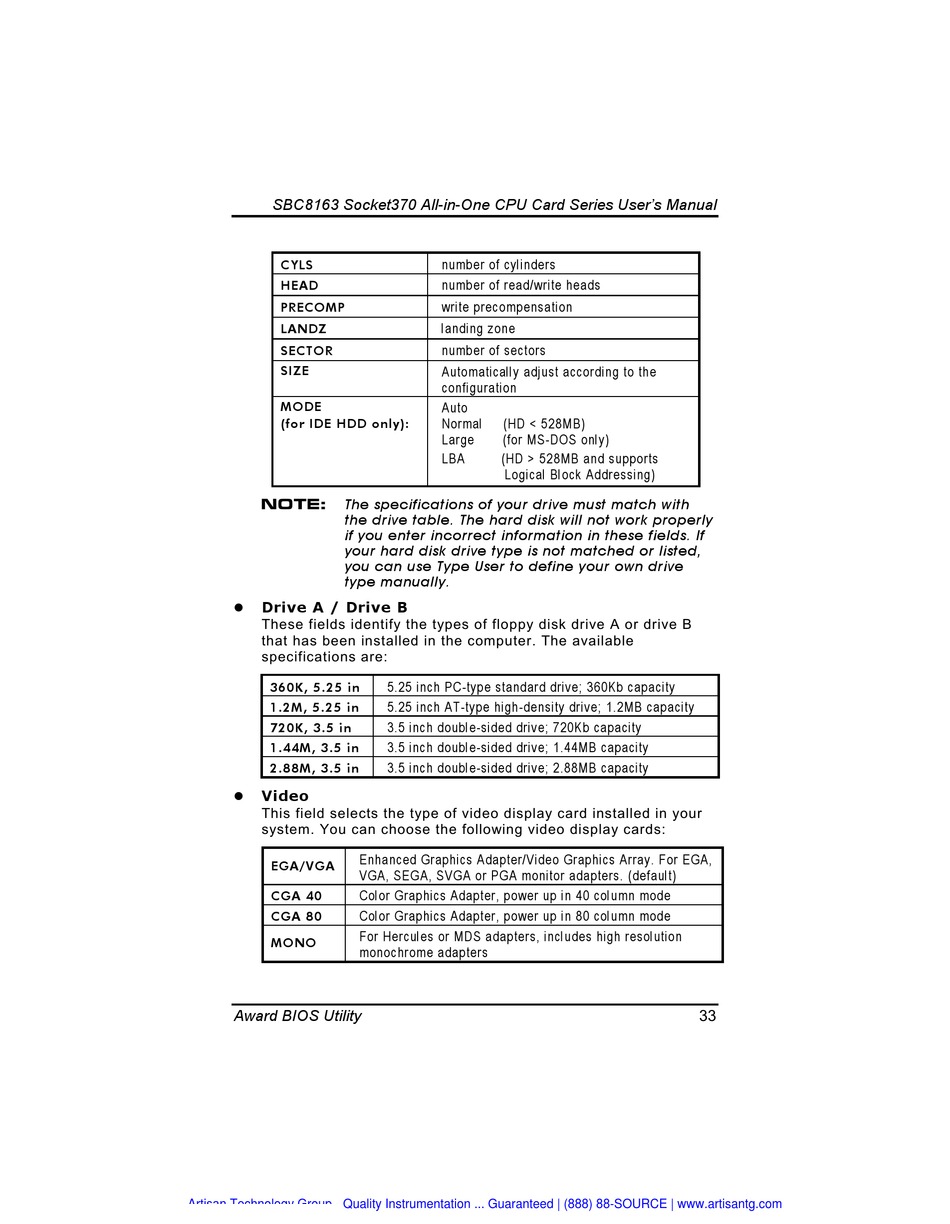

SBC8163 Socket370 All-in-One CPU Card Series User's Manual
CYLS
HEAD
PRECOMP
LANDZ
SECTOR
SIZE
MODE
(for IDE HDD only):
NOTE:
The specifications of your drive must match with
the drive table. The hard disk will not work properly
if you enter incorrect information in these fields. If
your hard disk drive type is not matched or listed,
you can use Type User to define your own drive
type manually.

Drive A / Drive B








 &
0

 &
,


"





& "


360K, 5.25 in
1.2M, 5.25 in
720K, 3.5 in
1.44M, 3.5 in
2.88M, 3.5 in

Video






&






1




&


Enhanced Graphics Adapter/Video Graphics Array. For EGA,
EGA/VGA
VGA, SEGA, SVGA or PGA monitor adapters. (default)
Color Graphics Adapter, power up in 40 column mode
CGA 40
Color Graphics Adapter, power up in 80 column mode
CGA 80
For Hercules or MDS adapters, includes high resolution
MONO
monochrome adapters
Award BIOS Utility
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
number of cylinders
number of read/write heads
write precompensation
landing zone
number of sectors
Automatically adjust according to the
configuration
Auto
Normal (HD < 528MB)
Large (for MS-DOS only)
LBA (HD > 528MB and supports
Logical Block Addressing)
5.25 inch PC-type standard drive; 360Kb capacity
5.25 inch AT-type high-density drive; 1.2MB capacity
3.5 inch double-sided drive; 720Kb capacity
3.5 inch double-sided drive; 1.44MB capacity
3.5 inch double-sided drive; 2.88MB capacity
00
