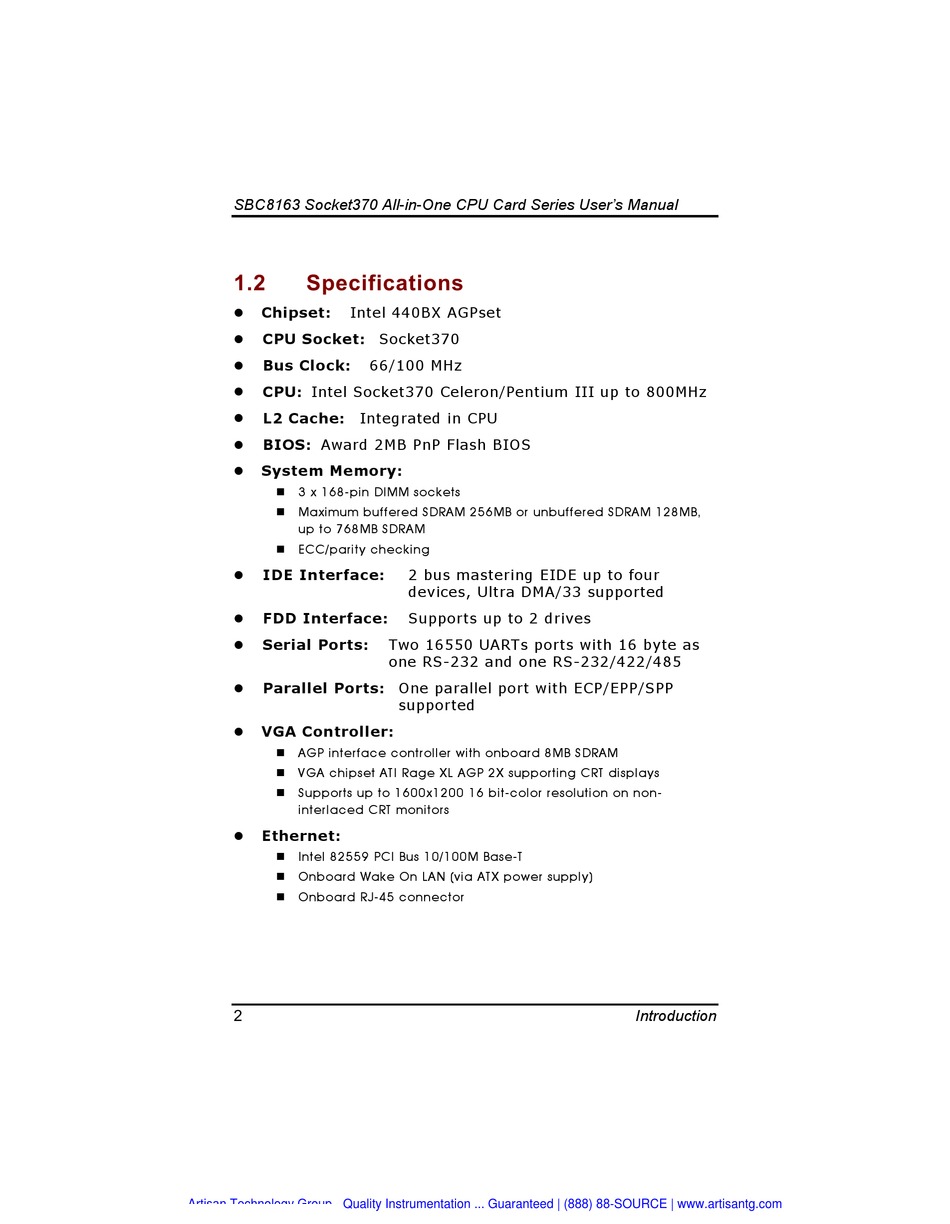

SBC8163 Socket370 All-in-One CPU Card Series User's Manual
#
"$

Chipset: Intel 440BX AGPset

CPU Socket: Socket370

Bus Clock:

CPU: Intel Socket370 Celeron/Pentium III up to 800MHz

L2 Cache: Integrated in CPU

BIOS: Award 2MB PnP Flash BIOS

System Memory:

3 x 168-pin DIMM sockets

Maximum buffered SDRAM 256MB or unbuffered SDRAM 128MB,
up to 768MB SDRAM

ECC/parity checking

IDE Interface:

FDD Interface:

Serial Ports:

Parallel Ports: One parallel port with ECP/EPP/SPP

VGA Controller:

AGP interface controller with onboard 8MB SDRAM

VGA chipset ATI Rage XL AGP 2X supporting CRT displays

Supports up to 1600x1200 16 bit-color resolution on non-
interlaced CRT monitors

Ethernet:

Intel 82559 PCI Bus 10/100M Base-T

Onboard Wake On LAN (via ATX power supply)

Onboard RJ-45 connector
,
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
66/100 MHz
2 bus mastering EIDE up to four
devices, Ultra DMA/33 supported
Supports up to 2 drives
Two 16550 UARTs ports with 16 byte as
one RS-232 and one RS-232/422/485
supported
Introduction
