Page 1: User Manual
DC120 Visual Presenter User Manual [Important] Please visit Lumens http://www.lumens.com.tw/goto.htm download the latest software, drivers, and documentation English - 0... -
Page 2: Table Of Contents
System Diagram ................11 Connecting to a computer ............11 Connecting to an Interactive Whiteboard (IWB) ......11 Mounting the DC120 ..............12 Installing application software ............. 12 Chapter 5 Start Using .................. 18 Chapter 6 Function Menu ................19 Main Function Menu .............. -
Page 3: English
I would like to annotate the live image ........22 I would like to add text to the live image ........23 I would like to capture images ............. 23 I would like to record videos ............24 7.10 I would like to set up the timer............. 25 7.11 Working with Other Applications .......... -
Page 4: Copyright Information
Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. -
Page 5: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Always follow these safety instructions when setting up and using the Visual Presenter: 1. Do not place visual presenter in tilted position. 2. Do not place the Visual Presenter on an unstable trolley, stand or table. 3. -
Page 6: Safety Precautions
Safety Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Note Risk of Electric Shock Note: To reduce the risk of electric shock. Do not remove cover (or back). No user-serviceable parts inside. -
Page 7: Revisions
Revisions English - 6... -
Page 8: Chapter 2 Package Contents
Chapter 2 Package Contents VESA Base DC120 Quick Start Guide Installation Guide (For download of other language versions, please visit Lumens website) USB Cable Extension USB Cable Microscope Adapter Carry Bag (Optional) Padded Carry Bag (Optional) English - 7... -

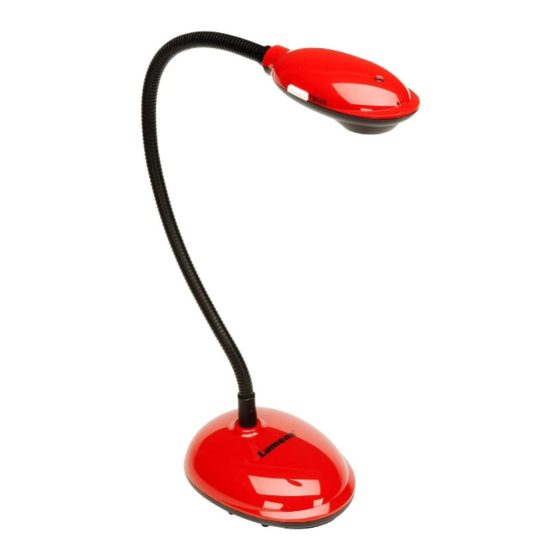

Page 9: Chapter 3 Product Overview
Chapter 3 Product Overview 4. Gooseneck 1. LED indicator 3. AF button 5. Microphone 6. Lamp 2. Lens English - 8... -
Page 10: Relative Operation Position
3.1 Relative Operation Position 3.2 Recommend distance * About 310 mm distance between camera and the desktop is recommended. English - 9... -
Page 11: Incorrect Use
3.3 Incorrect Use English - 10... -
Page 12: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System Diagram USB Cable COMPUTER 4.2 Connecting to a computer Shown as the above figure. 4.3 Connecting to an Interactive Whiteboard (IWB) PROJECTOR USB Cable VGA Cable USB Cable COMPUTER English - 11... -
Page 13: Mounting The Dc120
(H1) M4 screw (P = 0.7) 4.5 Installing application software After installing Lumens image software, you can use the following functions: Control the DC120. Capture and record images. Annotate the image, highlight important details and save it. - Page 14 4.5.2 Install with Windows XP/Vista 1. Insert the software CD into your computer. 2. Auto installation screen will be displayed. Please select [Install Ladibug] to begin installation. 3. The installation wizard will guide you through the process. Please follow the on-screen instructions and click [Next] for the next step.
- Page 15 4. Click [Yes] to create Ladibug™ shortcut on your desktop. English - 14...
- Page 16 5. Please click the [Finish] button then reboot the system. 4.5.1 Install with MAC 1. Insert the software CD into your computer. 2. Click the CD icon when appears. 3. Go to MAC folder. Click [Ladibug] to begin the installation wizard and follow the on-screen instruction through the installation process.
- Page 17 4. Click [Continue] to continue. 5. Click [Upgrade] to continue. 6. Enter your username and password, then click [OK]. English - 16...
- Page 18 7. Click [Continue] to continue. 8. Click [Restart] to finish installing the software. English - 17...
-
Page 19: Chapter 5 Start Using
Chapter 5 Start Using <Note>: Ensure that the USB cable is connected and Ladibug™ software is installed at first. Refer to Chapter 4 Installation and Connections in this user manual. USB Cable FOCUS icon to begin Ladibug™ Software. 1. Double click on 2. -
Page 20: Chapter 6 Function Menu
Chapter 6 Function Menu 6.1 Main Function Menu Live Image Preview Image Optimization Begin the main function menu, and click the right Lamp On/Off button to display the information about the software. BRIGHTNESS Set up the recording format Annotation Tools Freeze the current image Adjust the live image focus, Advanced Function Menu... -
Page 21: Annotation Tools
6.2 Annotation Tools Icon Function Descriptions Pointer tool Laser tool Insert text Draw a line Draw an ellipse Draw a rectangle Free-hand drawing tool Eraser Clear all Select the color Select the line width English - 20... -
Page 22: Chapter 7 Descriptions Of Major Functions
Chapter 7 Descriptions of Major Functions 7.1 I would like to display a live image 1. Click to display a live image. 7.2 I would like to optimize the image 1. Click 7.3 I would like to use the auto focus 1. -
Page 23: I Would Like To Annotate The Live Image
7.6 I would like to annotate the live image 1. Click to show annotation tools 2. The default is the arrow tool [Pointer]. You can select the other annotation tool. 3. Select the color of the annotation tool, 4. Set up the line width, 5. -
Page 24: I Would Like To Add Text To The Live Image
7.7 I would like to add text to the live image 1. Click to show annotation tools 2. Select the text tool to show [Text Tool] window. 3. Click to set up font, size, and color. 4. After entering text, click <Remark>: Click to capture the text image. -
Page 25: I Would Like To Record Videos
7.9 I would like to record videos 1. Click to show the advanced menu. 2. Click to begin the recording tool. <Remark>: Click to change settings including recording format and audio. 3. Click [Record] to show the “Save” window. 4. After entering the file name, click [Save] to begin recording. 5. -
Page 26: I Would Like To Set Up The Timer
7.10 I would like to set up the timer. 1. Click to show the advanced menu. to show the “Time Lapse” window. 2. Click A. Set up the file directory. B. Set up the file name C. Set up the start time. D. -
Page 27: Working With Other Applications
7.11 Working with Other Applications 7.11.1 I would like to insert a photo in MS-Paint 1. Click [File/From Scanner or Camera] in MS-Paint as shown in the bottom left figure. 2. Click [Get Picture] will capture the photos of live images and insert the files in use shown as top right figure. - Page 28 2. Select [USB Video Device #5] and click [Custom Insert]. 3. Click [Get Picture]. It will capture the photo of live image. 7.11.3 I would like to change the setting of the DC120 and then capture a photo in MS-Word <Remark>: For Windows Office 2003 or later versions, please use the...
- Page 29 2. Select [Lumens Document Camera TWAIN] and click [Custom Insert]. 3. A window showing a live image (see below) will be displayed. 4. Click [Setting]. When the Camera Settings window pops up, the live image can be adjusted. 5. Click [Capture] to capture images in MS-Word.
- Page 30 7.11.4 I would like to set the DC120 as a webcam for Skype The DC120 can be used as a webcam for instant message software such as Skype and MSN. With Skype as an example, operating instructions are provided below: 1.
-
Page 31: Chapter 8 Connecting To A Microscope
Ø 28 mm. 2. The lens of DC120 connects with the microscope adapter. 3. If the image is not clear 3.1 Click the [FOCUS] button on the DC120 camera head of main unit to activate the auto focus. English - 30... -
Page 32: Chapter 9 Troubleshooting
Chapter 9 Troubleshooting This chapter describes problems you may encounter while using DC120. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center.
