Page 1: User Manual
DC120 Visual Presenter User Manual [Important] Please visit Lumens http://www.lumens.com.tw/goto.htm download the latest software, drivers, and documentation English - 0... -
Page 2: Table Of Contents
System Diagram ................11 Connecting to a computer ............11 Connecting to an Interactive Whiteboard (IWB) ......11 Mounting the DC120 ..............12 Installing application software ............. 12 Chapter 5 Start Using .................. 18 Chapter 6 Function Menu ................19 IN WINDOWS ................ -
Page 3: English
6.2.3 Main Function Menu ..............26 6.2.4 Annotation ................... 27 6.2.5 Camera Settings ................28 6.2.6 Options ..................29 6.2.7 Time Lapse .................. 30 Chapter 7 Descriptions of Major Functions – IN Windows ......31 I would like to display a live image ..........31 I would like to optimize the image .......... -
Page 4: Copyright Information
Copyright Information Copyrights © Lumens Digital Optics Inc. All rights reserved. Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. -
Page 5: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Always follow these safety instructions when setting up and using the Visual Presenter: 1. Do not place visual presenter in tilted position. 2. Do not place the Visual Presenter on an unstable trolley, stand or table. 3. -
Page 6: Safety Precautions
Safety Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Note Risk of Electric Shock Note: To reduce the risk of electric shock. Do not remove cover (or back). No user-serviceable parts inside. -
Page 7: Revisions
Revisions English - 6... -
Page 8: Chapter 2 Package Contents
Chapter 2 Package Contents VESA Base DC120 Quick Start Guide Installation Guide (For download of other language versions, please visit Lumens website) Extension USB Cable USB Cable (Optional) Microscope Adapter Padded Carry Bag Carry Bag (Optional) (Optional) English - 7... -

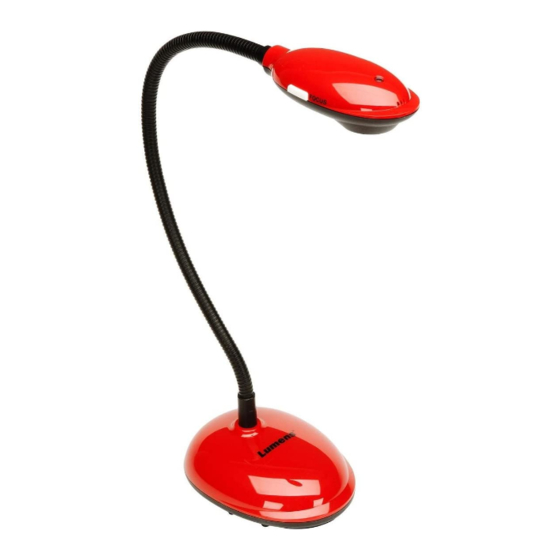

Page 9: Chapter 3 Product Overview
Chapter 3 Product Overview 4. Gooseneck 1. LED indicator 3. AF button 5. Microphone 6. Lamp 2. Lens English - 8... -
Page 10: Relative Operation Position
3.1 Relative Operation Position 3.2 Recommend distance * About 310 mm distance between camera and the desktop is recommended. English - 9... -
Page 11: Incorrect Use
3.3 Incorrect Use English - 10... -
Page 12: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System Diagram USB Cable COMPUTER 4.2 Connecting to a computer Shown as the above figure. 4.3 Connecting to an Interactive Whiteboard (IWB) PROJECTOR USB Cable VGA Cable USB Cable COMPUTER English - 11... -
Page 13: Mounting The Dc120
4.4 Mounting the DC120 1. Please purchase the standard VESA installation base. 2. Please use appropriate screws: Screw length = 5 mm + base thickness (H1); M4 screw (P = 0.7) VESA bolt pitch 75*75mm VESA base thickness (H1) ... - Page 14 4.5.2 Install with Windows XP/Vista 1. Insert the software CD into your computer. 2. Auto installation screen will be displayed. Please select [Install Ladibug] to begin installation. 3. The installation wizard will guide you through the process. Please follow the on-screen instructions and click [Next] for the next step.
- Page 15 4. Click [Yes] to create Ladibug™ shortcut on your desktop. English - 14...
- Page 16 5. Please click the [Finish] button then reboot the system. 4.5.1 Install with MAC 1. Insert the software CD into your computer. 2. Click the CD icon when appears. 3. Go to MAC folder. Click [Ladibug MAC] to begin the installation wizard and follow the on-screen instruction through the installation process.
- Page 17 4. Click [Continue] to continue. 5. Click [Install] to continue. 6. Enter your username and password, then click [OK]. English - 16...
- Page 18 7. Click [Continue Installation] to continue. 8. Click [Restart] to finish installing the software. English - 17...
-
Page 19: Chapter 5 Start Using
Chapter 5 Start Using <Note>: Ensure that the USB cable is connected and Ladibug™ software is installed at first. Refer to Chapter 4 Installation and Connections in this user manual. USB Cable FOCUS icon to begin Ladibug™ Software. 1. Double click on 2. -
Page 20: Chapter 6 Function Menu
Chapter 6 Function Menu 6.1 IN WINDOWS 6.1.1 Main Function Menu Power On / Off Lamp On/Off Image Optimization Live Image Preview Set up the recording format BRIGHTNESS Begin the main function menu, and click the right button to display the To adjust the size of image information about the software. -
Page 21: Annotation Tools
6.1.2 Annotation Tools Icon Function Descriptions Pointer tool Laser tool Insert text Draw a line Draw an ellipse Draw a rectangle Free-hand drawing tool Eraser Clear all Select the color Select the line width English - 20... -
Page 22: Camera Settings
6.1.3 Camera Settings Control the live image via the Camera Settings interface. Click to open Camera Settings interface. Auto Focus Automatically adjust focal length on an object. Focus Manually adjust focal length on an object. Auto Exposure Set on/off. Auto White Balance Set on/off. Rotate Rotate the image by 0/180 degree. -
Page 23: Options
6.1.4 Options Click to open Options Menu. 1. Factory Reset Activate the factory reset. 2. Video Compress Codec Format Set the video format. <Note> You need to enable the [Enable Video Compress] before setting. 3. Enable Audio Recorder Enable the audio record device and set the audio source. -
Page 24: Time Lapse
6.1.5 Time Lapse Click to open Time Lapse Menu. 1. Select file directory to change the default. 2. Specify a file name. 3. Set the start time. 4. Capture images at a pre-set intervals. English - 23... -
Page 25: In Mac
6.2 IN MAC 6.2.1 Software Screen Introduction 1. Live image 2. Main Menu 3. Thumbnail Window 4. File Management Function Menu English - 24... -
Page 26: Thumbnail
6.2.2 Thumbnail 1. Close/Open Thumbnail 2. Thumbnail image of saved video or captured image (It will be if it’s a video) displayed as 3. Save the video which has been edited 4. Save as a new file 5. Change the storage folder 6. -
Page 27: Main Function Menu
6.2.3 Main Function Menu POWER: LAMP: Turn the Document Camera Turn the lamp on/off. on/off. AUTO TUNE: PREVIEW: Automatically adjust the image to have the best brightness and Display live images. focusing performance. OPTIONS: BRIGHTNESS: Select video compression method and the audio source. Manually adjust the brightness 6.2.6 Options is the reference... -
Page 28: Annotation
6.2.4 Annotation Icon Description Click open annotation Pointer tool tools Laser tool Insert text Eraser (Clear marks of free-hand drawing tool) Draw a line Draw an ellipse Draw a rectangle Delete Free-hand drawing tool Back Next Clear all Select pen color Select line thickness Select transparency Select Font... -
Page 29: Camera Settings
6.2.5 Camera Settings Control the live image via the Camera Settings interface. Click to open Camera Settings interface. 1. Auto Focus: Automatically adjust the best focal length. 2. Focus: Manually adjust focal length on an object. 3. Auto Exposure: Set on/off. 4. -
Page 30: Options
6.2.6 Options Click to open Options Menu. 1. Factory Reset: Activate the factory reset. 2. Video Compression Type: Set up the recording format. 3. Enable Audio Recorder: Enable the audio record device and set the audio source. English - 29... -
Page 31: Time Lapse
6.2.7 Time Lapse Click to open Time Lapse Menu 1. Specify a file name. 2. Set the start time. 3. Set the interval and the length of time of image capturing. English - 30... -
Page 32: Chapter 7 Descriptions Of Major Functions - In Windows
Chapter 7 Descriptions of Major Functions – IN Windows 7.1 I would like to display a live image 1. Click to display a live image. 7.2 I would like to optimize the image 1. Click 7.3 I would like to use the auto focus 1. -
Page 33: I Would Like To Record Videos
7.7 I would like to record videos 1. Click to show the advanced menu. 2. Click to begin the recording tool. <Remark>: Click to change settings including recording format and audio. 3. Click [Record] to show the “Save” window. 4. After entering the file name, click [Save] to begin recording. 5. -
Page 34: I Would Like To Set Up The Timer
7.8 I would like to set up the timer. 1. Click to show the advanced menu. to show the “Time Lapse” window. 2. Click A. Set up the file directory. B. Set up the file name C. Set up the start time. D. -
Page 35: I Would Like To Annotate The Live Image
7.10 I would like to annotate the live image 1. Click to show annotation tools 2. The default is the arrow tool [Pointer]. You can select the other annotation tool. 3. Select the color of the annotation tool, 4. Set up the line width, 5. -
Page 36: I Would Like To Add Text To The Live Image
7.11 I would like to add text to the live image 1. Click to show annotation tools 2. Select the text tool to show [Text Tool] window. 3. Click to set up font, size, and color. 4. After entering text, click <Remark>: Click to capture the text image. -
Page 37: Working With Other Applications
7.12 Working with Other Applications 7.12.1. I would like to insert a photo in MS-Paint <Remark>: Support Windows XP Operation System only. 1. Click [File/From Scanner or Camera] in MS-Paint as shown in the bottom left figure. 2. Click [Get Picture] will capture the photos of live images and insert the files in use shown as top right figure. - Page 38 2. Select [USB Video Device #5] and click [Custom Insert]. 3. Click [Get Picture]. It will capture the photo of live image. 7.12.3. I would like to change the setting of the DC120 and then capture a photo in MS-Word <Remark>: For Windows Office 2003 or later versions, please use the...
- Page 39 2. Select [Lumens Document Camera TWAIN] and click [Custom Insert]. 3. A window showing a live image (see below) will be displayed. 4. Click [Setting]. When the Camera Settings window pops up, the live image can be adjusted. 5. Click [Capture] to capture images in MS-Word. 6.
- Page 40 7.12.4. I would like to set the DC120 as a webcam for Skype The DC120 can be used as a webcam for instant message software such as Skype and MSN. With Skype as an example, operating instructions are provided below: 1.
-
Page 41: Chapter 8 Descriptions Of Major Functions - In Mac
Chapter 8 Descriptions of Major Functions – IN MAC I would like to display a live image Click to display the live image. I would like to capture images Click to capture images. [Note] The captured images will be displayed in the Thumbnail area. -
Page 42: I Would Like To Annotate The Displayed Image
I would like to annotate the displayed image <Note> To annotate the saved image, please open the pictures of the Thumbnail area. Click to open the annotation tools. Select a annotation tool. Select pen color. Select line thickness. ... -
Page 43: I Would Like To Add Textual Annotation To Images
<Remark> You can Click to capture images if they are live images. You can click [SAVE] or [SAVE AS] to save the files if they are image files opened from the Thumbnail. <Remark> You can add annotation when recording, but you can’t save it I would like to add textual annotation to images ... -
Page 44: I Would Like To Record Videos
<Remark> You can Click to capture images if they are live images. You can click [SAVE] or [SAVE AS] to save files if they are image files. I would like to record videos Click to open the recording tool. <Note>... -
Page 45: I Would Like To Use The Spotlight Mode
I would like to use the spotlight mode Click to open Spotlight mode. Modify the length and the width with mouse. Click to modify the shape and transparency of the block. Click to close the Spotlight mode. 8.10 I would like to manage saved image files. - Page 46 , then “Save As” window will pop up. Click [Save as] After inputting “file name”, click [SAVE] to finish saving. 8.10.2 Change the location of file access , then “OPEN” window will pop up. Click [Directory] After selecting the location of the folder, click [Choose] to change the folder for saving pictures next time.
- Page 47 8.10.3 Delete File First, double-click the picture in the “Thumbnail” window on the left side of the screen. , then “Delete File” window will pop up. Click Click [Delete] [Yes] to delete files. 8.10.4 Send files by E-mail function. ...
-
Page 48: Chapter 9 Connecting To A Microscope
Ø 28 mm. 2. The lens of DC120 connects with the microscope adapter. 3. If the image is not clear 3.1 Click the [FOCUS] button on the DC120 camera head of main unit to activate the auto focus. English - 47... -
Page 49: Chapter 10 Troubleshooting
Chapter 10 Troubleshooting This chapter describes problems you may encounter while using DC120. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center.
