- Page 1 KLING & FREITAG CLUSTERPLATE CA 106 User’s Manual Important Information, Please Read before Use! KLING FREITAG GmbH & Junkersstrasse 14 D-30179 Hannover TEL 0 (049) 511- 969 97-0 FAX 0 (049) 511- 67 37 94 www.kling-freitag.de...
-
Page 2: Table Of Contents
User’s Manual CA 106 Cluster Plate Contents Chapter Safety instructions for speakers and assembly equipment found in safety manual supplied with equipment! Page Symbols in user’s manual Information about this user’s manual 1. Scope of delivery and definition of the various threads and drill holes 2. -
Page 3: Scope Of Delivery And Definition Of The Various Threads And Drill Holes
User’s Manual CA 106 Cluster Plate 1. Scope of delivery and definition of the various threads and drill holes The CA 106 Cluster Plate is not assembled upon delivery. The following individual parts are included in the scope of delivery. Tooth lock screws M8 x 20 CA 106 Cluster Plate Special eye bolts M8 x 20... -
Page 4: Assembly
User’s Manual CA 106 Cluster Plate 3. Assembly The CA 106 Cluster Plate enables the user to mount the CA 106 next to each other in an optimally determined angle based on measurements and acoustics. Because the CA 106 is equipped with a rotating horn which enables the speakers’ coverage to be adjusted as necessary, the Cluster Plate offers two different horizon- tal array possibilities. -
Page 5: Operation
User’s Manual CA 106 Cluster Plate 4. Operation 4. 1 Mounting with various tilt angles Hanging the assembled speakers without vertical tilt: Hanging the assembled speakers with vertical tilt of 15°: Always use additional washers and spring washers when securing eye bolts. Hanging the assembled speakers with vertical tilt of 30°: Hanging the assembled speakers with vertical tilt of >30°: KLING &... -
Page 6: Use Of Mounting Devices

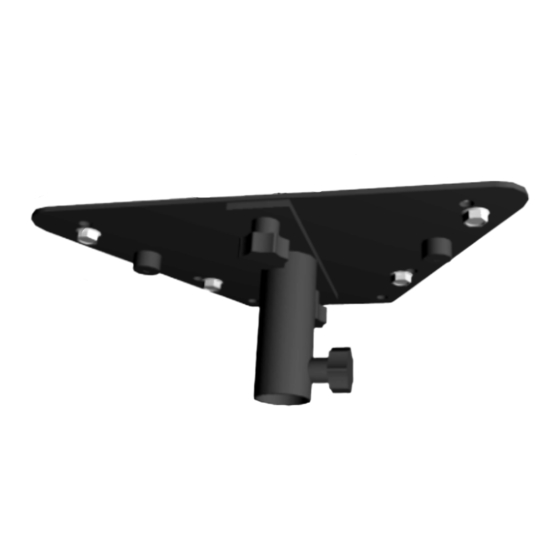

User’s Manual CA 106 Cluster Plate 4.2 Use of mounting devices The CA 106 Cluster Plate can be equipped with mounting devices such as a pole mount adapters to hang speakers from a pole mount or with a stand adapter for mounting on a stand. -
Page 7: Basic Measurements, Weight And Admissible Load Capacity
User’s Manual CA 106 Cluster Plate 6. Basic measurements, weight and working load limit CA 106 Cluster Plate 324mm Weight: 1,7kg Working load limit (WLL): 18kg The CA 106 Cluster Plate is designed having sufficient size and strength to fulfill the requirements of use in the described applications.
