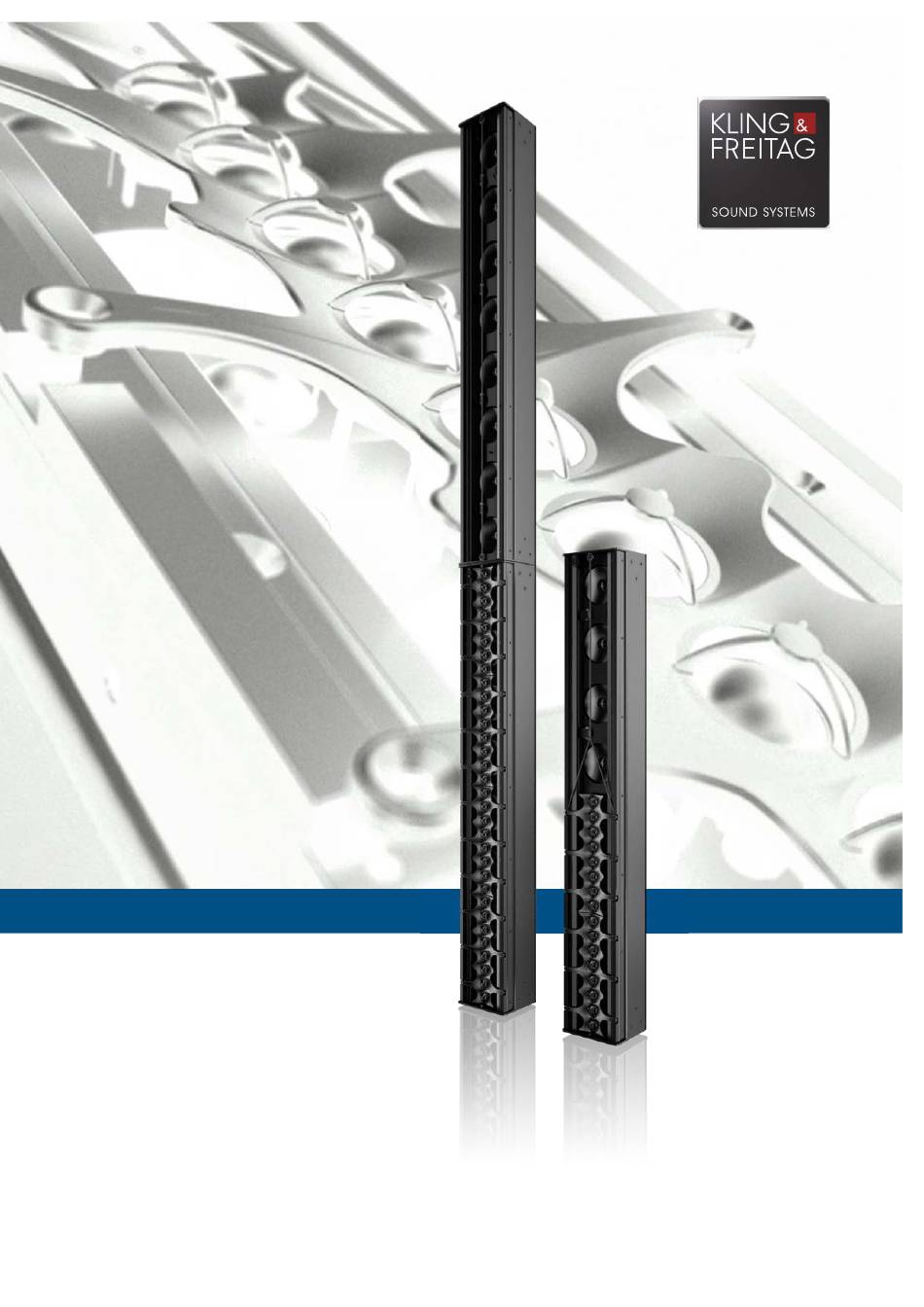

- Page 1 EN | VERSION 3.0 | 01/13/2022 USER‘S MANUAL K&F VIDA M...
-
Page 3: Table Of Contents
2.4.1 Items Included VIDA M 110 / 110 S 2.4.2 Items Included VIDA M 220 / 220 S 2.5 Overview of VIDA M 110 / 110 S Parts 2.6 Overview of VIDA M 220 / 220 S Parts 2.7 Front-panel indicator 2.8 Accessories... - Page 4 User‘s Manual K&F VIDA M 7.1 Dante latency 7.1.1 Example 7.1.2 Changing between Dante redundancy operating modes 7.1.3 Setting up Dante latency with an additional hop Initial Operation Updates 9.1 Firmware Update 9.2 Dante Update 10 Care and Maintenance 11 Transportation and Storage 12 Disposal 12.1 Germany 12.2 EU, Norway, Iceland, and Liechtenstein...
-
Page 5: Introduction
User's Manual K&F VIDA M Introduction Icons Used This icon indicates a risk of injury or death. Not following these instructions may result in seri- WARNUNG ous health problems including potentially fatal injuries. This icon indicates a possibly dangerous situation. Not following these instructions may cause VORSICHT minor injuries or damage. -
Page 6: Product Description
(IP65 rating according to DIN EN 60529). The speaker can therefore be used in environments that meet the respective requirements. VIDA M 110 81211700071 VIDA M 110 S 83211700043 VIDA M 220 82211700072 VIDA M 220 S 84212100010... -
Page 7: Versions
VIDA M is available in four versions designed for different applications and transmission rang- VIDA M 110 • Asymmetrical design • Transmission range: approx. 20 meters • Height: 1.1 meters VIDA M 110 S • Symmetrical design • Transmission range: approx. 25 meters • Height: 1.1 meters VIDA M 220 •... -
Page 8: System Requirements
Audio source connected to Analog, AES 3, or Dante. Items Included 2.4.1 Items Included VIDA M 110 / 110 S • 1 x VIDA M 110 / 110 S speaker • 12 x counterbore caps • 1 x sealing plate for the connector panel •... -
Page 9: Overview Of Vida M 110 / 110 S Parts
User's Manual K&F VIDA M Overview of VIDA M 110 / 110 S Parts Inlet for connecting mounting hardware (also available at the bottom) Bores for fastening mounting hardware. Can be sealed using the supplied caps when not in use. -
Page 10: Overview Of Vida M 220 / 220 S Parts
User's Manual K&F VIDA M VIDA M 13.01.2022 01/13/2022 Overview of VIDA M 220 / 220 S Parts Passive module Inlet for connecting mounting hardware (bottom inlet for con- necting the active module) Bores for fastening mounting hardware. Can be sealed using the supplied caps when not in use. -
Page 11: Front-Panel Indicator
User's Manual K&F VIDA M Front-panel indicator Each VIDA M features an LED indicator located behind the front grille. The indicator color shows the following statuses: • Power-up (blue): The speaker is being powered up and will be ready for operation shortly. •... -
Page 12: Accessories
VIDA M Stand Adapter The stand adapter is permanently at- tached to the VIDA M 110 / 110 S speaker and allows for using it on a speaker stand. Note that the fixing accessories are not suitable for recurring assembly and disassembly. -
Page 13: Accessories For Mobile Use
User's Manual K&F VIDA M 2.8.2 Accessories for Mobile Use The accessories below allow for mobile use of VIDA M speakers and for adapting them to a number of applications, for example, in rental use. VIDA M Mounting Adapter This mounting adapter with handles is permanently attached the VIDA M speaker. -
Page 14: Dimensions
User's Manual K&F VIDA M VIDA M 13.01.2022 01/13/2022 Dimensions 2.9.1 Dimensions VIDA M 110 / 110 S Version 3.0 © KLING & FREITAG GMBH Seite 14 von 42... -
Page 15: Dimensions Vida M 220 / 220 S
User's Manual K&F VIDA M 2.9.2 Dimensions VIDA M 220 / 220 S © KLING & FREITAG GMBH Version 3.0 Seite 15 von 42... -
Page 16: Technical Specifications
K&F VIDA M VIDA M 13.01.2022 01/13/2022 2.10 Technical Specifications 2.10.1 Technical Specifications VIDA M 110 Active 2-way coaxial line array with electronic beam Concept steering Input signal Each speaker is fed through a dedicated DSP/amp channel. Frequency range @-10 dB 95 Hz –... -
Page 17: 2.10.2 Technical Specifications Vida M 110 S
User's Manual K&F VIDA M 2.10.2 Technical Specifications VIDA M 110 S Active 2-way coaxial line array with electronic beam Concept steering Input signal Each speaker is fed through a dedicated DSP/amp channel. Frequency range @-10 dB 95 Hz – 22 kHz Frequency range @±3 dB... -
Page 18: 2.10.3 Technical Specifications Vida M 220
User's Manual K&F VIDA M VIDA M 13.01.2022 01/13/2022 2.10.3 Technical Specifications VIDA M 220 Active 2-way coaxial line array with electronic beam Concept steering Input signal Each speaker is fed through a dedicated DSP/amp channel. Frequency range @-10 dB 95 Hz –... -
Page 19: 2.10.4 Technical Specifications Vida M 220 S
User's Manual K&F VIDA M 2.10.4 Technical Specifications VIDA M 220 S Active 2-way coaxial line array with electronic beam Concept steering Input signal Each speaker is fed through a dedicated DSP/amp channel. Frequency range @-10 dB 95 Hz – 22 kHz Frequency range @±3 dB 125 Hz –... -
Page 20: Measuring Diagrams
User's Manual K&F VIDA M VIDA M 13.01.2022 01/13/2022 2.11 Measuring Diagrams Horizontal Directivity 180° 150° 120° 90° 60° Attenuation (dB) 30° < 3 0° 3 - 6 -30° 6 - 9 -60° 9 - 12 -90° 12 - 15 -120°... - Page 21 User's Manual K&F VIDA M Vertical Directivity, optimised 150° 120° 90° 60° Attenuation (dB) 30° < 3 0° 3 - 6 -30° 6 - 9 -60° 9 - 12 -90° 12 - 15 -120° 15 - 18 -150° > 18 -180°...
-
Page 22: General Safety Instructions
User's Manual K&F VIDA M VIDA M 13.01.2022 01/13/2022 General Safety Instructions Risk of electric shock WARNUNG • The system must be connected to the mains by a qualified electrician only. • Make sure that the power outlet has a ground connector and it is connected to the device through the PE conductor of the power cord! •... -
Page 23: Initial Installation Of Vida M 220 / 220 S Modules
User's Manual K&F VIDA M Initial installation of VIDA M 220 / 220 S modules VIDA M 220 / 220 S systems are disassembled for shipping and therefore need to be assembled for initial installation. Risks imposed by falling parts WARNUNG Never try removing the individual modules of VIDA M 220 / 220 S speakers once these have been joined, screwed, and glued together during initial installation. - Page 24 User's Manual K&F VIDA M VIDA M 13.01.2022 01/13/2022 VIDA M 220 11. Plug in the connector as shown. The connecting-cable label matches the terminal label. MT 1 The remaining terminals will stay unoccupied. Tipp TIPP Use a pair of bent needle-nose pliers to complete the following steps: VIDA M 220 S 12.
- Page 25 User's Manual K&F VIDA M 13. Place the sealing plate. 14. Tighten the M4x10 screws using an IH2.5 hexagon socket wrench. © KLING & FREITAG GMBH Version 3.0 Seite 25 von 42...
-
Page 26: Wiring
User's Manual K&F VIDA M VIDA M 13.01.2022 01/13/2022 Wiring Wire the speaker as described below. Terminal positions and purpose Netzanschluss, 100 V bis 240 V Fuse (250 V, 8 A, slow blow) Sealing power-cable gland and strain relief Dante/remote secondary (RJ45), redundant network port Dante/remote primary (RJ45) standard network port... -
Page 27: Audio Terminals
User's Manual K&F VIDA M 5.2.2 Audio terminals Potentially missing contact HINWEIS Strip the cables by 7 mm. Aux out (analog): GND (ground) COLD (–) HOT (+) AES/EBU in (digital): GND (ground) COLD (–) HOT (+) Analog in: GND (ground) COLD (–) HOT (+) Cable specification... -
Page 28: Gpio
User's Manual K&F VIDA M VIDA M 13.01.2022 01/13/2022 5.2.3 GPIO Potentially missing contact HINWEIS Strip the cables by 7 mm. [A] to [C] GPO 1: NC1, M1, NO1: Status output (warnings, errors) [D] to [F] GPO 2: NC2, M2, NO2: Status output (warnings, errors) [G] to [I] ALARM: COM, MUTE, PRIO:... -
Page 29: Gpio Specifications
User's Manual K&F VIDA M GPIO specifications GPI A1 – A3: Type Floating optocoupler inputs Power consumption 2.5 mA @10 V 12 V/1 mA, floating Internal voltage source Reverse voltage –6 V HIGH switching threshold Edge-triggered: 5 V (min.) – 30 V (max.) LOW switching threshold Edge-triggered: –6 V (min.) –... -
Page 30: Gpi Internal Wiring
User's Manual K&F VIDA M VIDA M 13.01.2022 01/13/2022 6.1.1 GPI internal wiring: OPT3 OPT2 OPT1 GPI A1 GPI A3 GPI A2 10 V Version 3.0 © KLING & FREITAG GMBH Seite 30 von 42... -
Page 31: Gpo
User's Manual K&F VIDA M Type Floating MOSFET-Schalter Max. Continuous current 0.5 A Max. Peak current 1.5 A Max. Peak voltage 60 VAC NO1 / NO2 Normally open, low impedance to COMMON NC1 / NC2 Normally closed, high impedance to COMMON M1 / M2 COMMON GPO internal wiring:... -
Page 32: Systemlatency
User's Manual K&F VIDA M VIDA M 13.01.2022 01/13/2022 Systemlatency The following table lists the systems latency that is to be expected of the VIDA M. They refer to firmware version 1.1.0 or greater, no beam steering. Input K&F VIDA M AUX OUT Analog 6.016 ms... -
Page 33: Changing Between Dante Redundancy Operating Modes
User's Manual K&F VIDA M 7.1.2 Changing between Dante redundancy operating modes 1. Launch Dante Controller. 2. Double-click the VIDA M to be configured to access the Device View. 3. Click the Network Config tab. 4. Make the appropriate settings in the Dante Redundancy section. 7.1.3 Setting up Dante latency with an additional hop There is one additional network switch installed inside K&F VIDA M which translates to one... -
Page 34: Initial Operation
User's Manual K&F VIDA M VIDA M 13.01.2022 01/13/2022 Initial Operation 1. Download the VIDA App from the Microsoft Store and install it. For this purpose, visit the Microsoft App Store and search for VIDA App. 2. Download the VIDA App User’s Guide from our website (www.kling-freitag.de). 3. - Page 35 User's Manual K&F VIDA M To check, change to the Setup tab. • When the progress bar is fully displayed and no red dot is shown, the speaker is ready for operation. 8. For details on speaker configuration and operation, refer to the VIDA App User's Manual. 9.
-
Page 36: Updates
User's Manual K&F VIDA M VIDA M 13.01.2022 01/13/2022 Updates Firmware Update 1. Connect the speakers to the mains. 2. Add the speakers to your network. 3. Download the VIDA Firmware Updater from our website (www.kling-freitag.de). 4. Unzip the file and run the executable. 5. -
Page 37: Dante Update
User's Manual K&F VIDA M Dante Update 1. Connect the speakers to the mains. 2. Add the speakers to your network. 3. If the Dante Controller application is already installed, proceed to step 10. 4. Visit https://www.audinate.com/products/software/dante-controller. 5. Select your operating system. 6. -
Page 38: Care And Maintenance
User's Manual K&F VIDA M VIDA M 13.01.2022 01/13/2022 When the update is complete, the following dialog will be shown: 17. Check the REBOOT REQUIRED box. 18. Click the REBOOT SELECTED DEVICES button to reboot the updated speaker(s). Care and Maintenance The K&F VIDA M system can exhibit signs of wear over the years, for example, from mechanical strain, transport damage, corrosion, or improper handling. -
Page 39: Transportation And Storage
User's Manual K&F VIDA M Transportation and Storage Store the product in a dry place. Also, transport under dry conditions only. During prolonged storage, ensure sufficient ventilation. Avoid vibrations during transport. Avoid mechanical stress during transport and storage, so the product is not damaged. Disposal This symbol on the electronic equipment indicates that the product must not be dis- posed of with household waste. -
Page 40: Ec Declaration Of Conformity
User's Manual K&F VIDA M VIDA M 13.01.2022 01/13/2022 EC Declaration of Conformity Version 3.0 © KLING & FREITAG GMBH Seite 40 von 42... - Page 41 User's Manual K&F VIDA M © KLING & FREITAG GMBH Version 3.0 Seite 41 von 42...
- Page 42 THANK CHOOSING K&F. KLING & FREITAG GmbH Wohlenbergstrasse 5 · D-30179 Hannover Phone +49 (0)511 969970 www.kling-freitag.de · info@kling-freitag.de...
