- Page 1 Adjustable Speaker Mount / U-Mount for CA 106 User’s Manual Important Information, Please Read Before Use! KLING FREITAG GmbH & Wohlenbergstrasse 5 D-30179 Hannover PHONE 0 (049) 511- 969 97-0 FAX 0 (049) 511- 67 37 94 www.kling-freitag.de...
- Page 2 User’s Manual Adjustable Speaker Mount / U-Mount for CA 106 KLING & FREITAG GMBH ©2005 Page 2 of 14...
- Page 3 Important Information about this User's Manual User’s Manual Adjustable Speaker Mount / U-Mount for CA 106, Version 1.2, 12.03.2015 © by André Figula, Kling & Freitag GmbH, 2005; all rights reserved. All specifications in this manual are based on information available at the time of pub- lishing for the features and safety guidelines of the described products.
-
Page 4: Table Of Contents
User’s Manual Adjustable Speaker Mount / U-Mount for CA 106 Contents Chapter Page Safety Instructions Shipped Components and Part Definitions 2.1 Adjustable Speaker Mount CA 106 2.2 U-Mount CA 106 Optional available Mounting Equipment Installation and Usage Instructions 4.1 Adjustable Speaker Mount 4.1.1... -
Page 5: Safety Instructions
The adjustable speaker mount / U-mount for CA 106 is only for professional use and is only to be used to mount Kling & Freitag speakers CA 106. Furthermore, it may only be used as specified for uses at trade fairs, in theatres, studios, and events, etc. ac-... - Page 6 User’s Manual Adjustable Speaker Mount / U-Mount for CA 106 The safe operation of the rigging and mounting system depends upon various factors specific to the area of operation. For example, adverse weather conditions such as wind or rain can impair the safety of the system. These factors must be considered and evaluated in each case.
-
Page 7: Shipped Components And Part Definitions

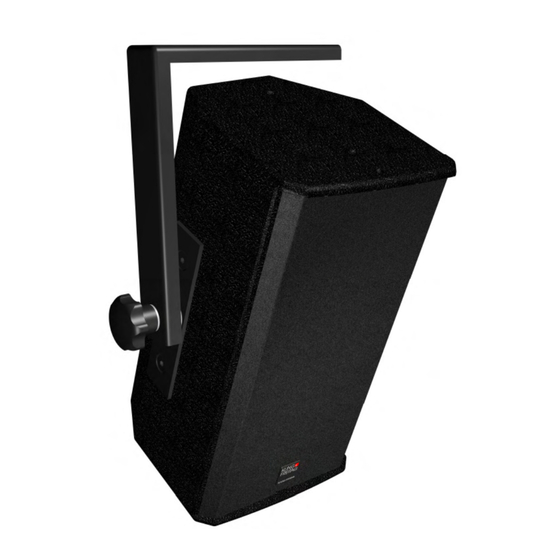

User’s Manual Adjustable Speaker Mount / U-Mount for CA 106 2. Shipped Components and Part Definitions 2.1 Adjustable Speaker Mount CA 106 2 x threads M8 L-bracket Thread M10 2 x countersunk head screw M 8 x 20 Flange with thread M 8... -
Page 8: Optional Available Mounting Equipment
User’s Manual Adjustable Speaker Mount / U-Mount for CA 106 3. Optional available Mounting Equipment K&F stand adapter TV spigot 20 mm Pipe Clamp Eyebolt M8 x 20 KLING & FREITAG GMBH ©2005 Page 8 of 14... -
Page 9: Installation And Usage Instructions
User’s Manual Adjustable Speaker Mount / U-Mount for CA 106 4. Installation and Usage Instructions 4.1 Adjustable Speaker Mount 4.1.1 Installation on the Speaker Mount the Adjustable Speaker Mount as shown above − Make sure that all screwed connections are tightened securely. The two M8 coun- −... -
Page 10: Installation And Use Of The K&F Stand Adapter
User’s Manual Adjustable Speaker Mount / U-Mount for CA 106 4.1.3 Installation and Use of the K&F Stand Adapter You can use the adjustable speaker mount with the optionally available stand adapter in or- der to attach the bracket to a stand or a distance rod with a minimum diameter of 35 mm. -
Page 11: Installation And Use Of The Pipe Clamp With Tv Spigot
User’s Manual Adjustable Speaker Mount / U-Mount for CA 106 4.1.4 Installation and Use of the Pipe Clamp Fastening wheel B Fastening wheel A Holding Spigot Securing screw Lock nut M10 Screw the holding spigot into the M 10 thread of the bracket. Secure the spigot −... -
Page 12: U-Mount Ca 106
User’s Manual Adjustable Speaker Mount / U-Mount for CA 106 4.2 U-Mount CA 106 Fasten U-mount to speaker using bolts M 8 incl. washers and lock washers as − shown in illustration. Do not tighten the bolts all the way for the time being. -
Page 13: Instructions For Ceiling And Wall Installation
User’s Manual Adjustable Speaker Mount / U-Mount for CA 106 5. Instructions for Ceiling and Wall Installation Before carrying through ceiling and wall installations, it is essential to consider the load capacity of walls, ceilings and panelling as well as the stability and type of the construc- tion. -
Page 14: U-Mount Ca 106
User’s Manual Adjustable Speaker Mount / U-Mount for CA 106 6.2 U-Mount CA 106 Ø8.5 mm [Ø0.335 "] Ø8.5 mm [Ø0.335 "] Ø10.5 mm [Ø0.413 "] Ø8.5 mm [Ø0.335 "] Ø8.5 mm [Ø0.335 "] 150 mm [5.906 "] 8.5 mm [0.335 "]...
