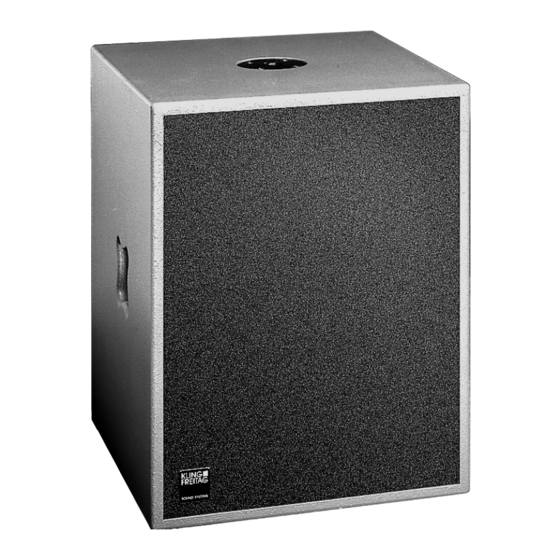

- Page 1 KLING & FREITAG SW 115D-XO User’s Manual Important Information, Please Read before Use! KLING FREITAG GmbH & Junkersstrasse 14 D-30179 Hannover TEL 0 (049) 511- 969 97-0 FAX 0 (049) 511- 67 37 94 www.kling-freitag.de...
-
Page 2: Table Of Contents
With the purchase of an SW 115D-XO, you have acquired speakers with the highest possible quality and performance capabilities. As the owner of an SW 115D-XO - System, you now have a versatile and highly professional tool which, when operated properly, is a true pleasure to use. -
Page 3: General Instructions For Using Speakers
Mounting the speakers To avoid injury or damage, always be sure to mount the speakers securely so that they do not fall. The SW 115D-XO is designed for standing operation on the floor only. Do not hang the loud- speaker. -
Page 4: Wiring And Pin Diagrams Of Connectors
User's Manual Speaker System SW 115D-XO 2. Wiring and Pin Diagrams of Connectors Wiring: When using two or more speakers, make sure that the +/- polarity of the speakers at the amplifier is correct in order to ensure an in-phase operation and, consequently, an homogeneous sound. -
Page 5: Passive (Xo On) And Active Operations (Xo Off)
(XO ON) (XO OFF) The switchable low pass filter (XO) enables the SW 115D-XO to operate in passive mode as well as in active mode when used with a mid-high system. The switch for these operating modes is found on the connecting terminal on the back side of the SW 115D-XO. -
Page 6: Combination With Other Systems
CA 205 (2 - 4 x) with 1 x SW 115D-XO CA106 (2 - 4 x) with 1 x SW 115D-XO Active operations: During active operations, the SW 115D-XO is an ideal supplementary system for all K&F full-range systems. 5. Touching Up Paint Damage / Changing the Front Foam Although the PU structured paint used by KLING &... -
Page 7: Mounting Devices And Usage Of The Distace Rod
6. Mounting Devices and Usage of the Distance Rod There is a threaded flange (M20) on the top side of the SW 115D-XO necessary for mounting a K&F Distance Rod (also vertically adjustable) which is available as an optional accessory. The Tops CA 1201(M), CA 1215-6 / -9 (M), or CA 1515 can be used with this adapter. -
Page 8: Specifications
User's Manual Speaker System SW 115D-XO 7. Specifications Technical Specifications SW 115 D Design Bass reflex system with low pass filter: "Electronic Assisted" Bandpass Frequency response -10 dB 42 Hz - 2 kHz ± 49 Hz - 1,3 kHz Frequency response...
