K&F SCENA 15
User's Manual
Benutzerhandbuch
Important Information,
Please Read Before Use!
KLING & FREITAG GmbH
Junkersstrasse 14
D-30179 Hannover
PHONE +49 (0) 511- 96 99 70
TEL 0 (049) 511- 969 97-0
FAX
+49 (0) 511- 67 37 94
www.kling-freitag.de
Version 1.0
Version 1.0
Released: 03.05.2010
Stand: 08.06.2006
Advertisement
Table of Contents
Related Manuals for KLING & FREITAG K&F Scena 15
Summary of Contents for KLING & FREITAG K&F Scena 15
- Page 1 K&F SCENA 15 Version 1.0 Version 1.0 User's Manual Benutzerhandbuch Released: 03.05.2010 Stand: 08.06.2006 Important Information, Please Read Before Use! KLING & FREITAG GmbH Junkersstrasse 14 D-30179 Hannover PHONE +49 (0) 511- 96 99 70 TEL 0 (049) 511- 969 97-0 +49 (0) 511- 67 37 94 www.kling-freitag.de...
-
Page 3: Table Of Contents
User's manual K&F SCENA 15 Table of contents Introduction Symbols in User's Manual Information about this User's Manual ProductDescription Scope of Delivery System Requirements for Use Overview of Components Required Tools Accessories SafetyInstructions Mounting the Speakers / Wall and Ceiling Installation Notes for Mounting the Speakers Preventing hearing damage Protecting the Speakers / Operating Safety... -
Page 4: Introduction

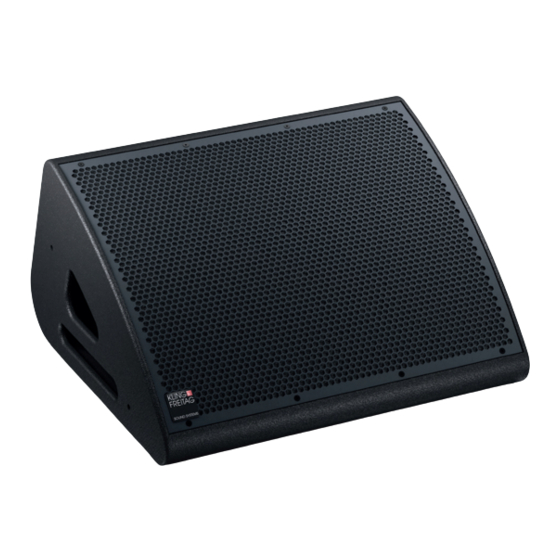

User's manual K&F SCENA 15 Introduction Thank you for your decision to buy a KLING & FREITAG sound system. To guarantee a trouble-free op- erating of the equipment and to allow your KLING & FREITAG SCENA 15 system to achieve its full po- tential please read the operating instructions carefully before use. - Page 5 User's manual K&F SCENA 15 ProductDescription The SCENA 15 is a high performance stage monitor with a hidden pole mount flange and 4 flying points. These features make it possible to use it not only as a highly professional stage tool but also as a PA speaker.
-
Page 6: Overview Of Components
User's manual K&F SCENA 15 OverviewofComponents Frontgrille with a hexagonal hole pattern and acoustic foam behind it. Highfrequencyhorn, rotatable Polemountflange, covered. For using the monitor on a speaker stand. Handlerail Plasticsliders, 4 x on the bottom, 3 x on the side M8threadinserts, 4 x, for K&F eyebolt M8, for suspension of the speakers Operatingmodeswitch, for selecting the operating modes 1 channel or 2 channel. - Page 7 User's manual K&F SCENA 15 SafetyInstructions MountingtheSpeakers/WallandCeilingInstallation The speakers may only be mounted to wall and ceilings by qualified personnel. The technicians responsible for assembling the speakers on site are responsible for the safe setup and use of the speakers and guarantee this. Warning Never use signal cables or power cords for suspending, aligning or securing the systems.
- Page 8 User's manual K&F SCENA 15 ProtectingtheSpeakers/OperatingSafety SCENA 15 speakers may only be used in combination with a K&F SystemRack. See chapter [System Re- quirements for Use] on page 5. In general, audio signals should not be overdriven. This may be caused by mixing consoles, equalizers, effect equipment, etc.
-
Page 9: User's Manual K&F Scena
User's manual K&F SCENA 15 SuspendingtheSpeakers With the help of the M8 x 20 eyebolts available as accessories from KLING & FREITAG, the SCENA 15 can be suspended Screw in at least two of these eyebolts into the existing M8 threads on the sides. Suspend the speaker with the help of shackles, ropes or chains. - Page 10 User's manual K&F SCENA 15 Rotatingthehighfrequencyhorn By default, the SCENA 15 has a coverage angle of 50°x70° (hor. x vert.). When you use it as a stage monitor, you have a good coverage into the depth of the stage and an optimal lateral sound field boundary on the stage.
- Page 11 User's manual K&F SCENA 15 ConfigurationandConnectingDiagram 1ChannelMode To avoid unnecessarily assigning controller channels, this operating mode is recommended for most usages. In 1 channel mode, the high frequency driver and the low/mid-range chassis are controlled by one controller channel. The internal crossover takes over the frequency separation for tweeter and low/ mid-range.
-
Page 12: Channel Mode
User's manual K&F SCENA 15 2ChannelMode You can use the 2 channel operating mode when you have to slightly increase the maximum sound pressure level. In 2 channel mode, a maximum sound pressure of 136 dB SPL is reached. KLING & FREITAG GMBH © 2010 Revision 1.0 Page 12 of 18... -
Page 13: Operations With An Additional Subwoofer
User's manual K&F SCENA 15 OperationswithanAdditionalSubwoofer If you want to operate the SCENA 15 with an additional K&F subwoofer, you must activate the filter button B (100Hz mode) on the CD 44 for the SCENA 15. In doing so, you will get an optimal coupling to the K&F subwoofer systems. - Page 14 User's manual K&F SCENA 15 OperatingtheSpeakers • Switch off all equipment and turn down all level controls of the mixing console and the power amplifiers. • Wire your SCENA 15 systems according to the instructions in this manual. Important • Switch on the mixing console first, then the controller and the power amplifier.
- Page 15 User's manual K&F SCENA 15 TransportandStorage The SCENA 15 is protected against short-term moisture. It should still be stored, transported, and used under dry conditions, though. The SCENA 15 System is not designed for long-term use in a corrosive environment. Make sure that the system is adequately ventilated during longer storage periods so that possible residual moisture can escape from the equipment.
- Page 16 User's manual K&F SCENA 15 11. TechnicalSpecifications Design 2-way passive system, bass reflex tuning (equalisa- tion via CD 44), switchable between 1- or 2-chan- nel mode Frequencyrange-10dB 49 Hz - 20 kHz Frequencyrange+/-3dB 65 Hz - 18 kHz Coverageanglesnominal 50° x 70° (hor. x vert., horizontal use) PowerHandling 400 watts nominial 800 watts program...
-
Page 17: 13. Dimensions
User's manual K&F SCENA 15 13. Dimensions KLING & FREITAG GMBH © 2010 Revision 1.0 Page 17 of 18... -
Page 18: 14. Disposal
User's manual K&F SCENA 15 14. Disposal 14.1 RegulationsforDisposal 14.1.1 Germany Itisnotallowedtodisposeofusedelectricalequipmentasdomesticwaste. Butpleasedonotdisposeofthematofficialcollectingpointsforrecyclingeither! All KLING & FREITAG products are plain business-to-business (B2B) products. KLING & FREITAG prod- ucts labelled with a waste bin sign have thus to be disposed of by KLING & FREITAG alone. Please call KLING &...
