- Page 1 K&F SCENA 12 User‘s Manual Revision 1.3 Released 10/9/2019 EN | Translation of the original instructions Important Information, Please Read Before Use! KLING & FREITAG GmbH Junkersstraße 14 D-30179 Hannover TEL +49 (0) 511- 96 99 70 FAX +49 (0) 511- 67 37 94...
-
Page 3: Table Of Contents
User‘s Manual K&F SCENA 12 Table of Content Chapter / Content Page Introduction 1.1 Icons Used 1.2 About this user's manual Product Description 2.1 Intended Use 2.2 Items Included 2.3 Components 2.4 Terminal 2.5 System Requirements for Operation Safety Instructions 3.1 General Safety Instructions... -
Page 4: Introduction
KLING & FREITAG SCENA 12 system to achieve its full potential, please read this manual carefully before use. You will find that your K&F SCENA 12 is truly a versatile pro- grade tool that meets all requirements in terms of audio quality and safe installation. -
Page 5: Product Description

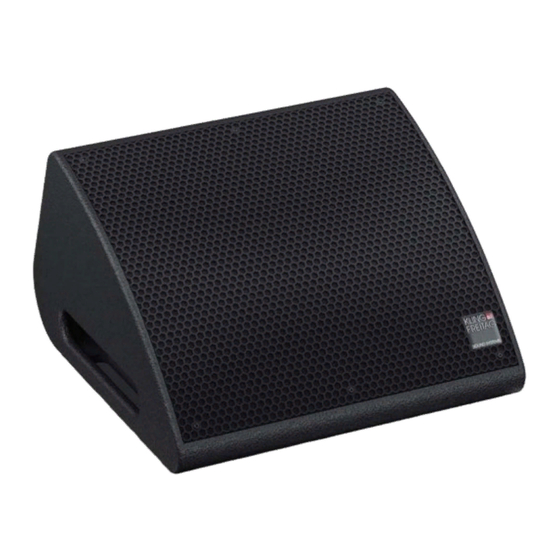

K&F SCENA 12 Product Description K&F SCENA 12 is a compact 2-way coaxial stage monitor. The speaker can be driven either through separate K&F system amplifiers or linear power amplifiers up to 750 Wrms per channel (8 ohms). A switch is provided on the connector panel for supporting the use of 4-wire SpeakOn cables. -
Page 6: Items Included
K&F SCENA 12 SCENA 12 09.10.2019 10/9/2019 Items Included • (1x) K&F SCENA 12 speaker • User's manual (1 item) Components 1. Housing 2. Front grille (hex hole pattern) backed with an acoustic-foam layer. 3. SpeakOn port (1 on each side) 4. -
Page 7: System Requirements For Operation
User's Manual K&F SCENA 12 System Requirements for Operation Lab.gruppen IPD 2400 K&F PLM+ 20k44 (SystemAmp, ProRental) K&F PLM+ 12k44 (SystemAmp, ProRental) K&F PLM+ 5k44 (SystemAmp, ProRental) with K&F Connector Panel CP+ (optional) K&F D200:4 (SystemAmp, InstallSound) K&F D120:4 (SystemAmp, InstallSound) K&F D80:4 (SystemAmp, InstallSound) -
Page 8: Safety Instructions
User's Manual K&F SCENA 12 SCENA 12 09.10.2019 10/9/2019 Safety Instructions General Safety Instructions The information described here does not relieve the user of the duty to follow the given safety requirements and legal regulations. The technicians responsible for installing the system on site are responsible for and guarantee safe setup and use. -
Page 9: Instructions For Speaker Placement
When assessing potential risks, also keep the speaker cable in mind. Run the cables in a way that nobody can trip over them. In addition to the main terminal at the bottom, the K&F SCENA 12 speaker provides extra SpeakOn ports on the side panels. Using those lateral ports increases the risk of tripping. -
Page 10: Protecting The Speakers, Reliability
10/9/2019 Protecting the Speakers, Reliability Be sure to connect the K&F SCENA 12 speaker to a K&F SystemAmp, a K&F SystemRack, or a linear power amp with up to 750 Wrms per channel (8 ohms) only. Never feed audio at excessive levels to the speaker. This may be caused by mixing consoles, equalizers, effect equipment, etc. -
Page 11: Placement
User's Manual K&F SCENA 12 Placement The K&F SCENA 12 loudspeaker features two different foot types at the bottom and on the right side panel. The right-hand side features plastic sliding (1). These are mostly suitable for temporarily putting the speaker down during transport. When operating the speaker in a vertical position (i.e. -
Page 12: Speaker-Stand Assembly
K&F SCENA 12 SCENA 12 09.10.2019 10/9/2019 4.1.2 Speaker-stand assembly To mount the K&F SCENA 12 speaker-stand adapter: Remove the 2 filler plugs from the right side panel of the K&F SCENA 12 speaker. Align the K&F SCENA 12 speaker- stand adapter. - Page 13 K&F SCENA 12 Check the K&F SCENA 12 speaker- stand adapter for secure fit. Place the caps onto the screw heads. Put the K&F SCENA 12 speaker onto the speaker-stand. © KLING & FREITAG GMBH Version 1.3 Page 13 of 30...
- Page 14 09.10.2019 10/9/2019 Align the speaker. Check for a secure connection and fas- ten the speaker using the rotary knob on the K&F SCENA 12 speaker-stand adapter. Now you can wire the speaker on the stand. Page 14 of 30 Version 1.3...
-
Page 15: Wiring
User's Manual K&F SCENA 12 Wiring • Before connecting your K&F SCENA 12 speaker, switch off all devices and turn down all faders and encoders. • Be sure to use high-end speaker cables with an appropriate wire gauge. Select the wire gauge with regard to the cable length. -
Page 16: Setups And Connection Diagrams
For example, the first line could run from the amp to a main-terminal port. Further speakers can be connected to either a main port or one of the lateral aux ports. The K&F SCENA 12 sup- ports all reasonable connection types. -
Page 17: Sample Configurations
User's Manual K&F SCENA 12 Sample configurations: All wires of the following examples are 'Speakon NL4'. Example 1: Example 2: Example 3: Example 4: © KLING & FREITAG GMBH Version 1.3 Page 17 of 30... -
Page 18: Connection
Connection Available presets There are four different presets for the K&F SCENA 12 speaker. They are divided into 'Monitor' and 'Top' and whether subwoofers are connected or not. From the following table you can see for each application the intended preset. -
Page 19: Dimensions
User's Manual K&F SCENA 12 Dimensions Weight: 18.4 kg © KLING & FREITAG GMBH Version 1.3 Page 19 of 30... -
Page 20: Measuring Diagrams
User's Manual K&F SCENA 12 SCENA 12 09.10.2019 10/9/2019 Measuring Diagrams Monitor with SystemAmp Frequenzgang 'on axis' FR mode LCut mode Monitor linear Frequenzgang 'on axis' Frequenzgang 'on axis' Frequency response Impedance Page 20 of 30 Version 1.3 © KLING & FREITAG GMBH... -
Page 21: Topl With Systemamp
User's Manual K&F SCENA 12 Topl with SystemAmp Frequenzgang 'on axis' FR mode LCut mode Top linear Frequenzgang 'on axis' Frequenzgang 'on axis' Frequency response Impedance © KLING & FREITAG GMBH Version 1.3 Page 21 of 30... -
Page 22: Technical Specifications
User's Manual K&F SCENA 12 SCENA 12 09.10.2019 10/9/2019 Technical Specifications K&F SCENA 12 Concept 2-way passive bass-reflex system Supported amplifiers K&F PLM+ series, K&F D series, Lab.Gruppen IPD 2400, K&F SystemRack Frequency range @-10 dB 55 Hz – 20 kHz Frequency range @±3 dB... -
Page 23: Ec Declaration Of Conformity
User's Manual K&F SCENA 12 EC Declaration of Conformity © KLING & FREITAG GMBH Version 1.3 Page 23 of 30... -
Page 24: Accessories
User's Manual K&F SCENA 12 SCENA 12 09.10.2019 10/9/2019 Accessories K&F SCENA 12 speaker-stand Adapter Used to place a K&F SCENA 12 loud- speaker on a suitable speaker-stand. Page 24 of 30 Version 1.3 © KLING & FREITAG GMBH... -
Page 25: Care And Maintenance
1. Damage and wear to the speakers and accessories may considerably affect your personal safe- The K&F SCENA 12 system can exhibit signs of wear over the years, for example, from me- chanical strain, transport damage, corrosion, or improper handling. -
Page 26: Transportation And Storage
10/9/2019 Transportation and Storage The K&F SCENA 12 system offers two lateral handles for carrying. Never hold the speaker ver- tically on one handle only. The speaker is too heavy for women or physically challenged persons and must not be carried by these persons. -
Page 27: Eu, Norway, Iceland, And Liechtenstein
User's Manual K&F SCENA 12 15.2 EU, Norway, Iceland, and Liechtenstein Don’t dispose of waste electrical equipment through household waste. Starting on 13 August 2005, KLING & FREITAG GmbH has marked all products subject to the WEEE directive that are distributed in any member state of the European Union (except Ger- many), Norway, Iceland, or Liechtenstein with an icon showing a crossed-out garbage can with a white bar below it. - Page 28 User's Manual K&F SCENA 12 SCENA 12 09.10.2019 10/9/2019 Translated version of the original SCENA 12 © Kling & Freitag GmbH, 2018 Junkersstrasse 14 D-30179 Hannover Germany www.kling-freitag.de All rights reserved. Page 28 of 30 Version 1.3 © KLING & FREITAG GMBH...
- Page 29 User's Manual K&F SCENA 12 © KLING & FREITAG GMBH Version 1.3 Page 29 of 30...
- Page 30 KLING & FREITAG GmbH Junkersstrasse 14 · D-30179 Hannover Phone +49 (0)511 969970 www.kling-freitag.de · info@kling-freitag.de...
