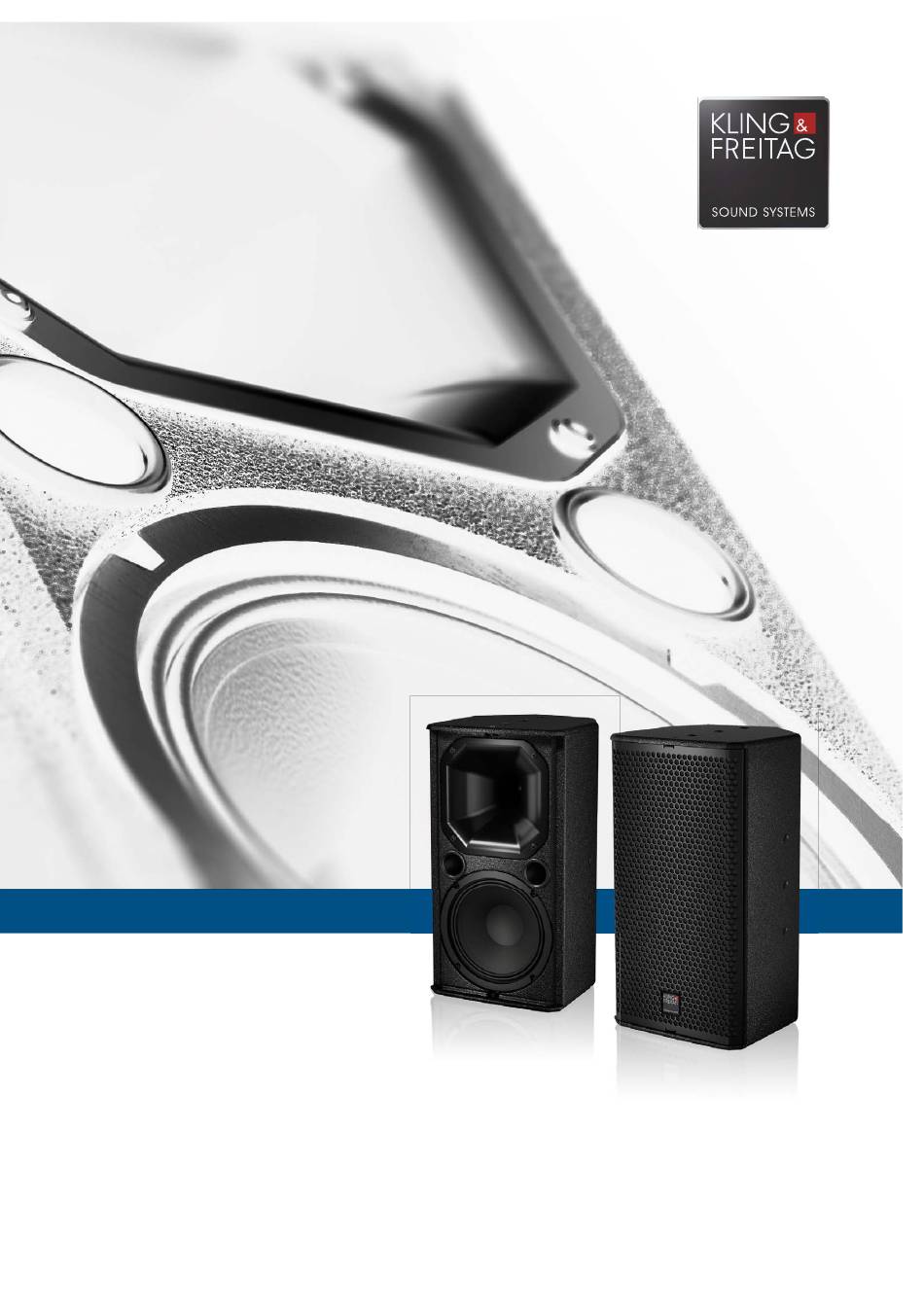

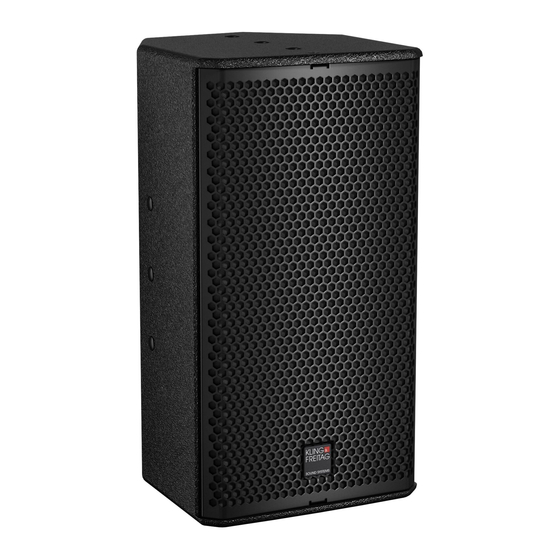

- Page 1 EN | | VERSION 1.0 | 10/23/20 USER‘S MANUAL K&F CA 106 PRO...
-
Page 3: Table Of Contents
User‘s Manual K&F CA 106 PRO Table of Content Chapter / Content Page Introduction 1.1 Icons Used 1.2 About this user's manual 1.3 Scope of Application Intended Use Safety Instructions 3.1 Notes on Upright Operation 3.2 Preventing Hearing Damage 3.3 Protecting the Speakers, Reliability Product Description 4.1 Accessories... -
Page 4: Introduction
If the CA 106 PRO speaker is used together with accessories that restrict the use specified in here, those restrictions will apply. Page 4 of 21 Version 1.0... -
Page 5: Intended Use
Planning must be performed and responsibility be taken by qualified person- nel only. K&F CA 106 PRO speakers are to be flown by qualified personnel (riggers) only! Refer to the relevant accessory manuals for safety and handling instructions with regard to your installation options and further details. -
Page 6: Protecting The Speakers, Reliability
CA 106 PRO 23.10.2020 10/23/20 Protecting the Speakers, Reliability If the CA 106 PRO speaker is driven by a linear power amplifier, make sure the following spec- HINWEIS ifications are met or exceeded: • Rated power output (max.): 400 W@16 ohms •... -
Page 7: Accessories
K&F CA 106 PRO U-type Speaker Mount: Ceiling or truss suspension or on-stand placement (requires optional stand socket) K&F CA 106 Cluster Plate: Array of two CA 106 PRO at an optimal angle determined by measurement and listening Suspension or on-stand placement (requires optional stand adapter). -
Page 8: Optional Accessories
User's Manual K&F CA 106 PRO CA 106 PRO 23.10.2020 10/23/20 4.1.1 Optional Accessories Optional accessories provide for more fastening options: TV spigot 20 mm Colour: black Super Clamp for 30 – 50-mm pipes or plates, 15 kg load (max.), incl. M10... -
Page 9: Items Included
M8 mounting threads (3 items each) on base, top, and side panels for mounting accesso- ries. Fitted with plugs before shipment. Connector panel with 2 × SpeakOn jacks 2 x M6 mounting thread for K&F CA 106 PRO Wall Mount (option) © KLING & FREITAG GMBH Version 1.0... -
Page 10: Technical Specifications
User's Manual K&F CA 106 PRO CA 106 PRO 23.10.2020 10/23/20 Technical Specifications Technical Specifications Concept 2-way passive bass-reflex system K&F PLM+ range, K&F D range Lab.gruppen IPD 2400 Supported amplifiers K&F SystemRack, K&F TOPAS Passive on linear power amplifiers Frequency range @-10 dB 65 Hz –... -
Page 11: Dimensions
User's Manual K&F CA 106 PRO Dimensions 195 mm 206.6 mm [7.677 inch] [8.132 inch] 10° 47.5° 25° Refer to our website at http://www.kling-freitag.de for a detailed dimensional drawing. © KLING & FREITAG GMBH Version 1.0 Page 11 of 21... -
Page 12: Dispersion Pattern
23.10.2020 10/23/20 Dispersion Pattern The CA 106 PRO speaker provides 90° × 60° coverage. By rotating the horn, you can swap the vertical and horizontal coverage. The table below shows how your horn radiates when placed upright: 1. To determine the coverage of your horn, direct a lit torch towards the front cover at the height of the horn. - Page 13 User's Manual K&F CA 106 PRO 4. Loosen the four horn-fixing screws and rotate the horn by 90°. If you rotate the horn frequently, be sure not to turn it in the same direction all the time as the HINWEIS connection cables may twist over time and might get disconnected from the horn contacts.
-
Page 14: Measuring Diagrams
User's Manual K&F CA 106 PRO CA 106 PRO 23.10.2020 10/23/20 Measuring Diagrams Horizontal dispersion 180° 150° 120° 90° 60° Attenuation (dB) 30° < 3 0° 3 - 6 -30° 6 - 9 -60° 9 - 12 -90° 12 - 15 -120°... -
Page 15: On-Axis Frequency Response
User's Manual K&F CA 106 PRO On-axis frequency response Passive Frequency Response Filtered FR Mode Impedance 1000 10000 20000 Frequency (Hz) Frequency-dependent coverage angle Horizontal Vertical 1000 10000 20000 Frequency (Hz) Directivity 1000 10000 20000 Frequency (Hz) © KLING & FREITAG GMBH Version 1.0... -
Page 16: Wiring
23.10.2020 10/23/20 Wiring • Before connecting your K&F CA 106 PRO speaker, switch off all devices and turn down all HINWEIS faders and encoders. • Be sure to use high-end speaker cables with an appropriate wire gauge. Select the wire size based on the cable length. -
Page 17: Speakon Pinout
The port pinout is also shown on the connector panel of the speaker. The CA 106 PRO speaker typically has two SpeakOn ports wired in parallel. The pins not connected to the speaker are wired in parallel as well. This allows for you to loop a signal through those pins, for example, for implementing single-cable distribution (i.e. -
Page 18: Operation In A Setup With K&F Subwoofers
23.10.2020 10/23/20 Operation in a Setup with K&F Subwoofers The K&F CA 106 PRO speaker was designed and developed as a midrange/tweeter system. When using it as a main sound-reinforcement system, we recommend using an additional K&F subwoofer. We recommend using subwoofers from our K&F NOMOS or K&F PASSIO SUB ranges. -
Page 19: Transportation And Storage
The K&F CA 106 PRO is not designed for prolonged use in corrosive environments. Make sure that the system is adequately ventilated during longer storage periods so any resid- ual moisture can escape from the equipment. -
Page 20: Disposal
User's Manual K&F CA 106 PRO CA 106 PRO 23.10.2020 10/23/20 Disposal Please recycle the packaging material of the device. 14.1 Germany Don’t dispose of waste electrical equipment through household waste. Don’t deliver it to official recycling points either. All KLING & FREITAG products are plain business-to-business (B2B) products. Therefore, KLING &... -
Page 21: Ec Declaration Of Conformity
User's Manual K&F CA 106 PRO EC Declaration of Conformity © KLING & FREITAG GMBH Version 1.0 Page 21 of 21... - Page 22 THANK CHOOSING K&F. KLING & FREITAG GmbH Junkersstrasse 14 · D-30179 Hannover Phone +49 (0)511 969970 www.kling-freitag.de · info@kling-freitag.de...
