VBOX PROLITE User Guide
CAN / RS232 Ports

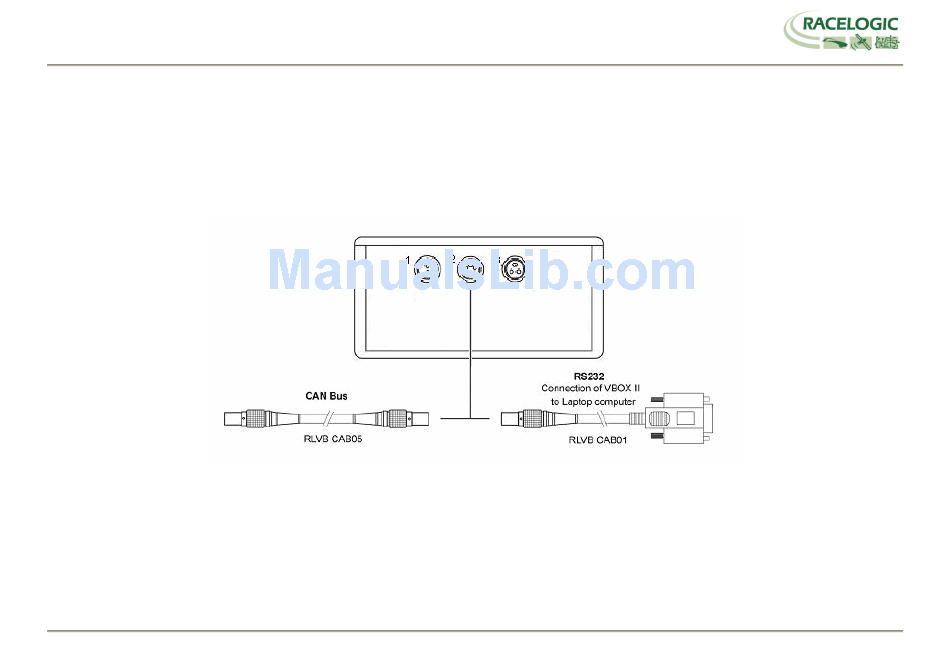

The VBOX Prolite is equipped with a CAN Bus interface and a RS232 serial port, both of these interfaces share the same socket. The RS232 port is used for
all communication between the VBOX and laptop PC. The RS232 port is able to transmit live data from the VBOX to the PC for viewing and performing real-
time tests.
The function of the CAN port is configurable by the user for use by either Racelogic modules (Internal mode) or the users own CAN Bus equipment (External
mode). See the section 'Setup' in the VBOX software manual.
Page 9 of 20
