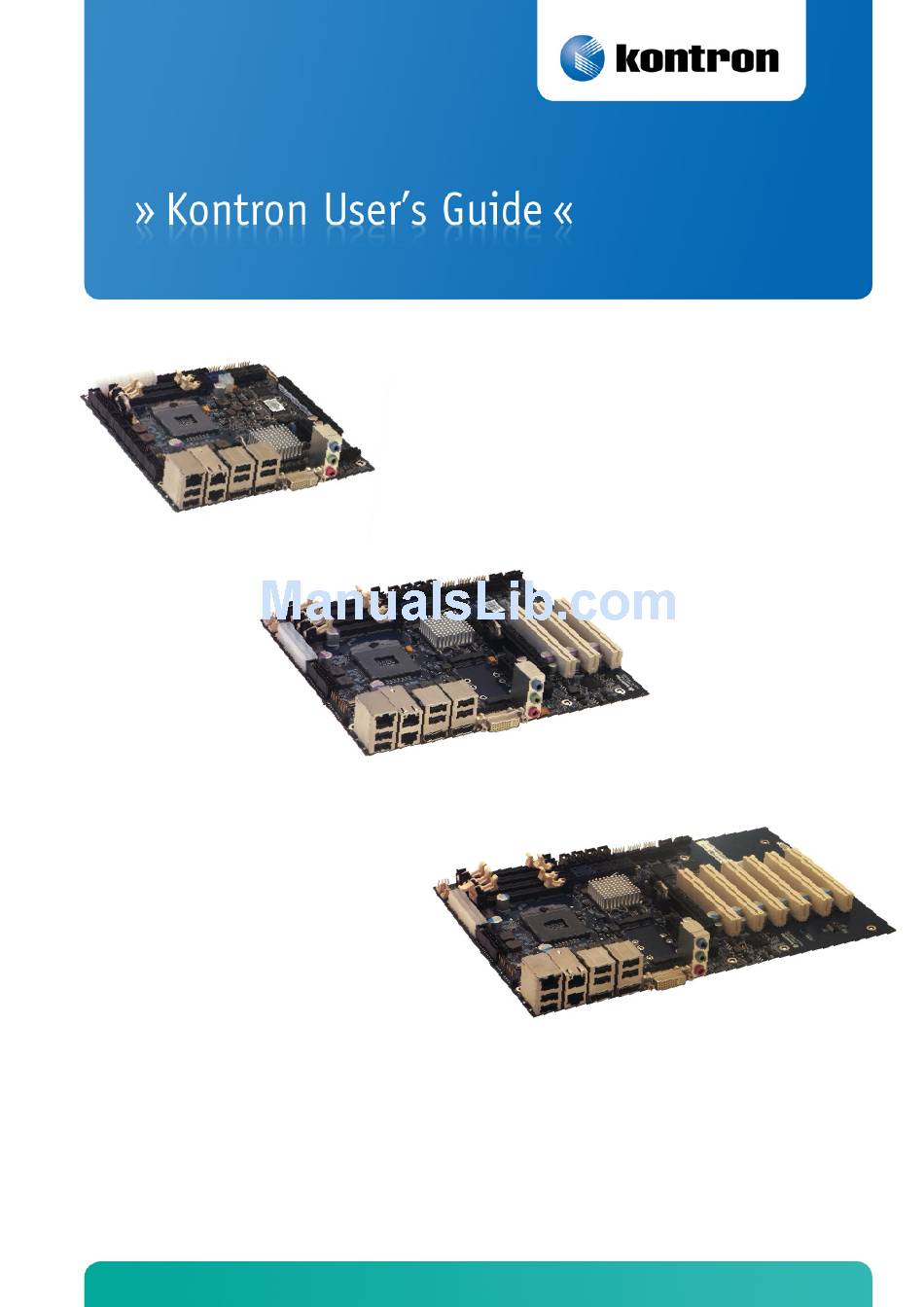

- Page 1 KTQM67/mITX KTQM67/Flex KTQM67/ATXP KTQM67 Users Guide KTD-N0819-E If it’s embedded, it’s Kontron...
-
Page 2: Document Revision History
Copyright 2011, KONTRON Technology A/S, ALL RIGHTS RESERVED. No part of this document may be reproduced or transmitted in any form or by any means, electronically or mechanically, for any purpose, without the express written permission of KONTRON Technology A/S. Trademark Acknowledgement: Brand and product names are trademarks or registered trademarks of their respective owners. - Page 3 KONTRON Technology warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, KONTRON Technology will, at its sole option, repair or replace the product with a similar product.
-
Page 4: Table Of Contents
KTQM67/mITX – frontside......................28 KTQM67/mITX – IO Bracket area ..................29 KTQM67/mITX - backside ......................29 KTQM67/Flex ..........................30 KTQM67/Flex - backside ......................31 KTQM67/ATXP ..........................32 KTQM67/ATXP - backside ......................33 Connector Definitions ..............34 IO-Area Connectors ..............35 Display connectors (IO Area) ...................... - Page 5 KTD-N0819-E Page 5 5.3.1 USB Connector 0/1 (USB0/1) ....................38 5.3.2 USB Connector 2/3 (USB2/3) ....................39 5.3.3 USB Connector 4/5 (USB4/5) ....................39 Audio Connector (IO Area) ......................40 Internal Connectors ..............41 Power Connector (ATX/BTXPWR) ....................41 Fan Connectors (FAN_CPU) (J28) and (FAN_SYS) (J29) ............42 PS/2 Keyboard and Mouse connector (KBDMSE) (J27) ............
-
Page 6: System Resources
KTD-N0819-E Page 6 7.1.1 PCI-Express x16 Connector (PCIe x16) ..................61 7.1.2 miniPCI-Express mPCIe0 (J34) ....................63 7.1.3 miniPCI-Express mPCIe1 (J35) ....................64 7.1.4 PCI-Express x1 Connector (PCIe x1) (J36) ................65 PCI Slot Connectors ........................66 7.2.1 Signal Description – PCI Slot Connector ................... 67 7.2.2 KTQM67 PCI IRQ &... -
Page 7: Introduction
Introduction Introduction This manual describes the KTQM67/mITX, KTQM67/Flex and KTQM67/ATXP boards made by KONTRON Technology A/S. The boards will also be denoted KTQM67 family if no differentiation is required. The KTQM67 boards, all based on the QM67 chipset, support 2 generation Intel®... -
Page 8: Installation Procedure
1 Installation procedure 1.1 Installing the board To get the board running, follow these steps. If the board shipped from KONTRON has already components like RAM, CPU and cooler mounted, then relevant steps below, can be skipped. 1. Turn off the PSU (Power Supply Unit) Warning: Turn off PSU (Power Supply Unit) completely (no mains power connected to the PSU) or leave the Power Connectors unconnected while configuring the board. -
Page 9: Requirement According To Iec60950
KTD-N0819-E Page 9 Installation procedure 1.2 Requirement according to IEC60950 Users of KTQM67 family boards should take care when designing chassis interface connectors in order to fulfil the IEC60950 standard: When an interface/connector has a VCC (or other power) pin, which is directly connected to a power plane like the VCC plane: To protect the external power lines of the peripheral devices, the customer has to take care about: •... -
Page 10: System Specification
Page 10 System Specification 2 System Specification 2.1 Component main data The table below summarizes the features of the KTQM67/mITX, KTQM67/Flex and KTQM67/ATXP embedded motherboards. Form factor KTQM67/mITX: miniITX (170,18 mm by 170,18 mm) KTQM67/Flex: Flex-ATX (190,5 mm by 228,6 mm) - Page 11 Two IEEE 1394a-2000 (up to 400M bits/s) on internal pinrows • Four Serial ports (RS232) on internal pinrows • LPT via single in line connector (only KTQM67/Flex and KTQM67/ATXP) • Two Serial ATA-600 IDE interfaces • Four Serial ATA-300 IDE interfaces •...
- Page 12 Dispose of used batteries according to the manufacturer’s instructions. • BIOS Kontron Technology / AMI BIOS (EFI core version) • Support for ACPI 3.0 ( Advanced Configuration and Power Interface), Plug & Play Suspend (S1 mode)
- Page 13 Theoretical MTBF: 268.956 / 131.729 hours @ 40ºC / 60ºC for the KTQM67/mITX TBD / TBD hours @ 40ºC / 60ºC for the KTQM67/Flex TBD / TBD hours @ 40ºC / 60ºC for the KTQM67/ATXP Restriction of Hazardous Substances (RoHS): All boards in the KTQM67 family are RoHS compliant.
-
Page 14: System Overview
KTD-N0819-E Page 14 System Specification 2.2 System overview The block diagram below shows the architecture and main components of the KTQM67. The key ® component on the board is the Intel QM67 (Cougar Point) Mobile Express Chipset. Some components (PCI slots) are optional depending on board type. More detailed block diagram on next page. - Page 15 KTD-N0819-E Page 15 System Specification KTQM67 Users Guide...
-
Page 16: Processor Support Table
CPU’s are indicated by text. Some processors in the list are distributed from Kontron, those CPU’s are marked by an * (asterisk). However please notice that this marking is only guide line and maybe not fully updated. Processor... - Page 17 Intel® vPro Technology is supported by i5 and i7 (not by Core i3 and Celeron). Only some types of processors are supporting all four SODIMM sockets available on the KTQM67/Flex and - /ATXP. Pt. these processors are all members of the Core i7 family, but not all Core i7. In the table above the “Qty.
-
Page 18: System Memory Support
Page 18 System Specification 2.4 System Memory support The KTQM67/mITX has two DDR3 SODIMM sockets and the KTQM67/FLEX and /ATXP have four DDR3 SODIMM sockets. The sockets support the following memory features: • 1.5V (only) 204-pin DDR3 SODIMM with gold-plated contacts •... -
Page 19: Ktqm67 Graphics Subsystem
KTD-N0819-E Page 19 System Specification 2.5 KTQM67 Graphics Subsystem The KTQM67 equipped with Intel ® i3, i5 or i7 processor, supports Intel ® HD Graphics 3000. The KTQM67 equipped Intel ® Celeron ® Processor B810, supports Intel ® HD Graphics. All KTQM67 versions support eDP (Embedded DisplayPort) directly from processor, and analogue VGA and digital display ports (DVI, 2x DP, LVDS) via the Mobile Intel ®... -
Page 20: Power Consumption
KTD-N0819-E Page 20 System Specification 2.6 Power Consumption In order to ensure safe operation of the board, the ATX12V power supply must monitor the supply voltage and shut down if the supplies are out of range – refer to the hardware manual for the actual power supply specification. - Page 21 Intel i7 CPU, 2x SODIMM (1GB Modules), Monitor, Keyboard & Mouse, 4x 1-4GB USB Sticks, 12V active cooler (KT), PSU (Corsair 430W). e) Low Power Setup KTQM67/Flex Standard system configuration equipped with PCIex1 card (network PLNA001), Internal graphics, 2x SATA disks, Intel i5 CPU, 1x SODIMM (1GB Modules), Monitor, Keyboard & Mouse. 1x 1-4GB...
- Page 22 KTD-N0819-E Page 22 System Specification a) Low Power Setup KTQM67/mITX ATX+12V PSU DOS Idle, Mean, No external load Current draw Power consumption Supply +12V 0,140 1,680 +12V P4 1,222 14,664 0,411 2,055 +3V3 0,557 1,838 -12V 0,035 0,42 5VSB 0,007 0,035 Total 20,7...
- Page 23 KTD-N0819-E Page 23 System Specification b) Low Power Setup KTQM67/mITX +12V only PSU DOS Idle, Mean, No external load Current draw Power consumption Supply +12V P4 1,721 20,652 Total 20,7 Windows 7, mean 3DMARK2005 ( first scene ) & BiT 6 Current draw Power consumption Supply...
- Page 24 KTD-N0819-E Page 24 System Specification c) High Power Setup KTQM67/mITX ATX+12V PSU DOS Idle, Mean, No external load Current draw Power consumption Supply +12V 0,932 11,184 +12V P4 1,102 13,224 0,452 2,260 +3V3 0,553 1,825 -12V 0,036 0,432 5VSB 0,007 0,035 Total 29,0...
- Page 25 KTD-N0819-E Page 25 System Specification d) High Power Setup KTQM67/mITX +12V only PSU DOS Idle, Mean, No external load Current draw Power consumption Supply +12V P4 2,499 29,988 Total 30,0 Windows 7, mean 3DMARK2005 ( first scene ) & BiT 6 Current draw Power consumption Supply...
- Page 26 KTD-N0819-E Page 26 System Specification e) Low Power Setup KTQM67/Flex DOS Idle, Mean, No external load Current draw Power consumption Supply +12V 0.194 2.328 +12V P4 1.339 16.068 0.353 1.765 +3V3 0.662 2.185 -12V 0.020 0.240 5VSB 0.001 0.005 Total 22.6...
- Page 27 KTD-N0819-E Page 27 System Specification f) High Power Setup KTQM67/Flex DOS Idle, Mean, No external load Current draw Power consumption Supply +12V 1.027 12.324 +12V P4 1.235 14.820 0.419 2.095 +3V3 0.666 2.198 -12V 0.028 0.336 5VSB 0.002 0.010 Total 31.8...
-
Page 28: Connector Locations
KTD-N0819-E Page 28 Connector Location 3 Connector Locations 3.1 KTQM67/mITX – frontside Sata1 Sata4 Sata2 Sata0 Sata5 Sata3 mPCIe (* USB11 (see note below) USB10 USB9 USB13 USB8 USB12 FEATURE System Temperature ATX/ BTXPWR ATX+12V Sensor( Q10) DDR3 Slot 1 DDR3 Slot 0 FRONTPNL FAN_CPU... -
Page 29: Ktqm67/Mitx - Io Bracket Area
KTD-N0819-E Page 29 Connector Location 3.2 KTQM67/mITX – IO Bracket area ETH1 USB1 USB3 ETH2 USB5 USB0 USB2 ETH3 USB4 DVI-I Audio 3.3 KTQM67/mITX - backside PCB no. XDP-CPU (*) mPCIe1 XDP-PCH (*) below mPCIe1 mPCIe0 LPT (*) (*) The XDP and LPT connectors are not supported and not mounted in volume production. KTQM67 Users Guide... -
Page 30: Ktqm67/Flex
KTD-N0819-E Page 30 Connector Location 3.4 KTQM67/Flex Sata1 Sata4 Sata2 Sata0 Sata5 Sata3 COM4 (see note below) COM3 COM2 DDR3: USB9 USB11 USB13 COM1 Slot 3 USB8 USB10 USB12 Slot 2 Slot 1 EDP (*) Slot 0 LPT (*) XDP-PCH (*) -
Page 31: Ktqm67/Flex - Backside
KTD-N0819-E Page 31 Connector Location 3.5 KTQM67/Flex - backside XDP-PCH (*) XDP-CPU (*) (*) The XDP connectors are not supported and not mounted in volume production. KTQM67 Users Guide... -
Page 32: Ktqm67/Atxp
KTD-N0819-E Page 32 Connector Location 3.6 KTQM67/ATXP Sata1 Sata4 Sata2 Sata0 Sata5 Sata3 DDR3: (see note below) COM4 Slot 3 COM3 Slot 2 COM2 Slot 1 USB9 USB11 USB13 COM1 Slot 0 USB8 USB10 USB12 AUDIO_HEAD FAN_SYS FEATURE FAN_CPU SPI recover ClrCMOS ATX/BTXPWR System Temperature... -
Page 33: Ktqm67/Atxp - Backside
KTD-N0819-E Page 33 Connector Location 3.7 KTQM67/ATXP - backside XDP-PCH (*) XDP-CPU (*) (*) The XDP connectors are not supported and not mounted in volume production. KTQM67 Users Guide... -
Page 34: Connector Definitions
KTD-N0819-E Page 34 Connector Definitions 4 Connector Definitions The following sections provide pin definitions and detailed description of all on-board connectors. The connector definitions follow the following notation: Column Description name Shows the pin-numbers in the connector. The graphical layout of the connector definition tables is made similar to the physical connectors. -
Page 35: Io-Area Connectors
KTD-N0819-E Page 35 IO-Area Connectors 5 IO-Area Connectors 5.1 Display connectors (IO Area) The KTQM67 family provides one on-board DVI-I port (both digital and analogue), two on-board DP’s (DisplayPort), one on-board eDP (Embedded DisplayPort) and one on-board LVDS panel interface. Two graphic pipes are supported;... -
Page 36: Dp Connectors (Dp0/Dp1) (J40/J39)
KTD-N0819-E Page 36 IO-Area Connectors 5.1.2 DP Connectors (DP0/DP1) (J40/J39) The DP (DisplayPort) connectors are based on standard DP type Foxconn 3VD51203-H7JJ-7H or similar. Signal Description Type Note Lane 0 (p) LVDS Lane 0 (n) LVDS Lane 1 (p) LVDS Lane 1 (n) LVDS Lane 2 (p) -
Page 37: Ethernet Connectors
KTD-N0819-E Page 37 IO-Area Connectors 5.2 Ethernet Connectors The KTQM67 boards supports three channels of 10/100/1000Mb Ethernet, one (ETH1) is based on Intel® Lewisville 82579LM Gigabit PHY with AMT 7.0 support and the two other controllers (ETHER2 & ETHER3) are based on Intel® Hartwell 82574L PCI Express controller. In order to achieve the specified performance of the Ethernet port, Category 5 twisted pair cables must be used with 10/100MB and Category 5E, 6 or 6E with 1Gb LAN networks. -
Page 38: Usb Connectors (Io Area)
KTD-N0819-E Page 38 IO-Area Connectors 5.3 USB Connectors (IO Area) The KTQM67 board contains two EHCI (Enhanced Host Controller Interface) host controllers that support up to fourteen USB 2.0 ports allowing data transfers up to 480Mb/s. Legacy Keyboard/Mouse and wakeup from sleep states are supported. Over-current detection on all fourteen USB ports is supported. -
Page 39: Usb Connector 2/3 (Usb2/3)
KTD-N0819-E Page 39 IO-Area Connectors 5.3.2 USB Connector 2/3 (USB2/3) USB Ports 2 and 3 are mounted together with DP1 port. Note Type Signal Signal Type Note 5V/SB5V USB3- USB3+ 5V/SB5V USB2- USB2+ Note 1: In order to meet the requirements of USB standard, the 5V input supply must be at least 5.00V. Signal Description USB2+ USB2-... -
Page 40: Audio Connector (Io Area)
KTD-N0819-E Page 40 IO-Area Connectors 5.4 Audio Connector (IO Area) The on-board Audio circuit implements 7.1+2 Channel High Definition Audio with UAA (Universal Audio Architecture), featuring five 24-bit stereo DACs and three 20-bit stereo ADCs. The Following Audio connector is available in IO Area. Audio Speakers, Line-in and Microphone are available in the stacked audiojack connector Signal Type Note... -
Page 41: Internal Connectors
KTD-N0819-E Page 41 Internal Connectors 6 Internal Connectors 6.1 Power Connector (ATX/BTXPWR) The KTQM67 boards are designed to be supplied from a standard ATX (or BTX) power supply. Alternatively supplied by single +12V +/-5% (mITX version only). Use of BTX supply is not required for operation, but may be required to drive high-power PCIe cards. -
Page 42: Fan Connectors (Fan_Cpu) (J28) And (Fan_Sys) (J29)
KTD-N0819-E Page 42 Internal Connectors 6.2 Fan Connectors (FAN_CPU) (J28) and (FAN_SYS) (J29) The FAN_CPU is used for the connection of the FAN for the CPU. The FAN_SYS can be used to power, control and monitor a fan for chassis ventilation etc. The 4pin header is recommended to be used for driving 4-wire type Fan in order to implement FAN speed control. -
Page 43: Ps/2 Keyboard And Mouse Connector (Kbdmse) (J27)
KTD-N0819-E Page 43 Internal Connectors 6.3 PS/2 Keyboard and Mouse connector (KBDMSE) (J27) Attachment of a PS/2 keyboard/mouse can be done through the pinrow connector KBDMSE (J27). Both interfaces utilize open-drain signalling with on-board pull-up. The PS/2 mouse and keyboard is supplied from SB5V when in standby mode in order to enable keyboard or mouse activity to bring the system out from power saving states. -
Page 44: Display Connectors (Internal)
KTD-N0819-E Page 44 Internal Connectors 6.4 Display connectors (Internal) The KTQM67 family provides internal display connectors: one on-board eDP (Embedded DisplayPort) and one on-board LVDS panel interface. For IO Area Display Connectors (DVI-I and two DP’s), see earlier section. Two graphic pipes are supported; meaning that up to two independent displays can be implemented using any two of display connectors (IO Area - and Internal connectors) with the exception of the combination eDP + LVDS. -
Page 45: Lvds Flat Panel Connector (Lvds) (J20)
KTD-N0819-E Page 45 Internal Connectors 6.4.2 LVDS Flat Panel Connector (LVDS) (J20) Two graphic pipes are supported; meaning that up to two independent displays can be implemented using any two of display connectors (IO Area - and Internal connectors) with the exception of the combination eDP + LVDS. -
Page 46: Sata (Serial Ata) Disk Interface (J21 - J26)
KTD-N0819-E Page 46 Internal Connectors 6.5 SATA (Serial ATA) Disk interface (J21 – J26) The KTQM67 boards have an integrated SATA Host controller (PCH in the QM67 chipset) that supports independent DMA operation on six ports. One device can be installed on each port for a maximum of six SATA devices. -
Page 47: Usb Connectors (Usb)
KTD-N0819-E Page 47 Internal Connectors 6.6 USB Connectors (USB) The KTQM67 board contains two EHCI (Enhanced Host Controller Interface) host controllers that support up to fourteen USB 2.0 ports allowing data transfers up to 480Mb/s. Legacy Keyboard/Mouse and wakeup from sleep states are supported. Over-current detection on all fourteen USB ports is supported. -
Page 48: Usb Connector 10/11 (Usb10/11) (J11)
KTD-N0819-E Page 48 Internal Connectors 6.6.3 USB Connector 10/11 (USB10/11) (J11) USB Ports 10 and 11 are supplied on the internal USB10/11 pinrow connector J11. Note Type Signal Signal Type Note PWR 5V/SB5V 5V/SB5V PWR USB10- USB11- USB10+ USB11+ 9 10 Signal Description USB10+ USB10-... -
Page 49: Firewire/Ieee1394 Connectors (J13,J14)
KTD-N0819-E Page 49 Internal Connectors 6.7 Firewire/IEEE1394 connectors (J13,J14) The KTQM67 support two IEEE Std 1394a-2000 fully compliant ports at 100M bits/s, 200M bits/s and 400M bits/s. 6.7.1 IEEE1394 connector (IEEE1394_0) (J14) Pull Pull Note Ioh/Iol Type Signal PIN Signal Type Ioh/Iol Note TPA0+ TPA0-... -
Page 50: Serial Com1 - Com4 Ports (J15, J16, J17, J18)
KTD-N0819-E Page 50 Internal Connectors 6.8 Serial COM1 – COM4 Ports (J15, J16, J17, J18) Four RS232 serial ports are available on the KTQM67. The typical definition of the signals in the COM ports is as follows: Signal Description Transmitted Data, sends data to the communications link. The signal is set to the marking state (-12V) on hardware reset when the transmitter is empty or when loop mode operation is initiated. -
Page 51: Lpt (Line Print Terminal - Parallel Port) (J44)
Internal Connectors 6.9 LPT (Line Print Terminal – Parallel port) (J44) The LPT connector (only KTQM67/Flex and KTQM67/ATXP) is a 32 pole single in line connector type Tyco 3-1734592-2. Available cable kit (FFC cable and module), see chapter 8. Signal... -
Page 52: Audio Connectors
KTD-N0819-E Page 52 Internal Connectors 6.10 Audio Connectors The on-board Audio circuit implements 7.1+2 Channel High Definition Audio with UAA (Universal Audio Architecture), featuring five 24-bit stereo DACs and three 20-bit stereo ADCs. The following Audio connectors are available as Internal connectors. 6.10.1 CDROM Audio Input (CDROM) (J3) CD-ROM audio input may be connected to this connector or it can be used as secondary line-in signal. -
Page 53: Audio Header Connector (Audio_Head) (J31)
KTD-N0819-E Page 53 Internal Connectors 6.10.1 Audio Header Connector (AUDIO_HEAD) (J31) Note Type Signal Signal Type Note LFE-OUT CEN-OUT AAGND AAGND FRONT-OUT-L FRONT-OUT-R AAGND AAGND REAR-OUT-L 9 10 REAR-OUT-R SIDE-OUT-L 11 12 SIDE-OUT-R AAGND 13 14 AAGND MIC1-L 15 16 MIC1-R AAGND 17 18... -
Page 54: Front Panel Connector (Frontpnl) (J19)
KTD-N0819-E Page 54 Internal Connectors 6.11 Front Panel Connector (FRONTPNL) (J19) Pull Ioh/ Ioh/ Pull Note Type Signal Signal Type Note PWR USB6/7_5V USB6/7_5V USB6- USB7- USB6+ USB7+ 9 10 LINE2-L 11 12 25/25mA SATA_LED# 13 14 SUS_LED 15 16 PWRBTN_IN# RSTIN# 17 18... -
Page 55: Feature Connector (Feature) (J30)
KTD-N0819-E Page 55 Internal Connectors 6.12 Feature Connector (FEATURE) (J30) Pull Pull Note Ioh/Iol Type Signal Signal Type Ioh/Iol Note CASE_OPEN# SMBC /4mA 10K/ 25/25mA SMBD /4mA 10K/ 25/25mA PWR_OK EXT_BAT PWR FAN3OUT FAN3IN SB3V3 9 10 SB5V GPIO0 11 12 GPIO1 GPIO2 13 14... - Page 56 KTD-N0819-E Page 56 Internal Connectors GPIO in more details. The GPIO’s are controlled via the ITE IT8516F Embedded Controller. Each GPIO has 100pF to ground, clamping Diode to 3V3 and has multiplexed functionality. Some pins can be DAC (Digital to Analogue Converter output), PWM (Pulse Width Modulated signal output), ADC (Analogue to Digital Converter input), TMRI (Timer Counter Input), WUI (Wake Up Input), RI (Ring Indicator Input) or some special function.
-
Page 57: Clear Cmos Jumper (J37)
KTD-N0819-E Page 57 Internal Connectors 6.13 Clear CMOS Jumper (J37) The Clear-CMOS Jumper (J37) is used to clear the CMOS content. Jumper (in default position) J37 pin 1 pin1-2 pin2-3 Description Clear CMOS data Default positions Secure CMOS function is disabled and Default values are used Warning: Don’t leave the jumper in position 1-2, otherwise the battery will fully depleted within a few weeks if power is disconnected. -
Page 58: Spi Recover Jumper (J4)
KTD-N0819-E Page 58 Internal Connectors 6.14 SPI Recover Jumper (J4) The SPI Recover Jumper is used to select BIOS Recovery SPI Flash instead of the BIOS Default SPI Flash. Normally Jumper is not installed and board boots on the BIOS Default SPI Flash. Only in case the Default BIOS gets corrupted (board do not boot), then turn off power, install Jumper (J4) and try rebooting. -
Page 59: Xdp-Cpu (Debug Port For Cpu) (J32)
KTD-N0819-E Page 59 Internal Connectors 6.16 XDP-CPU (Debug Port for CPU) (J32) The XDP-CPU (Intel Debug Port for CPU) connector is not mounted and not supported. XDP connector layout (pads) is located on the backside of PCB and is prepared for the Molex 52435-2671 (or 52435- 2672). -
Page 60: Xdp-Pch (Debug Port For Chipset) (J33)
KTD-N0819-E Page 60 Internal Connectors 6.17 XDP-PCH (Debug Port for Chipset) (J33) The XDP-PCH (Intel Debug Port for Chipset) connector is not mounted and not supported. XDP-PCH connector layout (pads) is located on the backside of PCB (below J35 connector on mITX version) and is prepared for the Molex 52435-2671 (or 52435-2672). -
Page 61: Slot Connectors (Pcie, Minipcie, Pci)
KTD-N0819-E Page 61 Slot Connectors 7 Slot Connectors (PCIe, miniPCIe, PCI) 7.1 PCIe Connectors All members of the KTQM67 family supports one (x16) (16-lane) PCI Express port, one x1 PCI Express port and two miniPCI Express ports. The 16-lane (x16) PCI Express (PCIe 2.0) port can be used for external PCI Express cards inclusive graphics card. - Page 62 KTD-N0819-E Page 62 Slot Connectors PEG_RXN[4] PEG_TXP[5] PEG_TXN[5] PEG_RXP[5] PEG_RXN[5] PEG_TXP[6] PEG_TXN[6] PEG_RXP[6] PEG_RXN[6] PEG_TXP[7] PEG_TXN[7] PEG_RXP[7] CLKREQ PEG_RXN[7] PEG_TXP[8] PEG_TXN[8] PEG_RXP[8] PEG_RXN[8] PEG_TXP[9] PEG_TXN[9] PEG_RXP[9] PEG_RXN[9] PEG_TXP[10] PEG_TXN[10] PEG_RXP[10] PEG_RXN[10] PEG_TXP[11] PEG_TXN[11] PEG_RXP[11] PEG_RXN[11] PEG_TXP[12] PEG_TXN[12] PEG_RXP[12] PEG_RXN[12] PEG_TXP[13] PEG_TXN[13] PEG_RXP[13] PEG_RXN[13]...
-
Page 63: Minipci-Express Mpcie0 (J34)
KTD-N0819-E Page 63 Slot Connectors 7.1.2 miniPCI-Express mPCIe0 (J34) The miniPCI Express port mPCIe0 is located on the backside. Beside miniPCIe cards the mPCIe0 also supports mSATA SSD cards. Note Type Signal Signal Type Note WAKE# +3V3 +1.5V CLKREQ# PCIE_mini CLK# PCIE_mini CLK W_Disable# RST#... -
Page 64: Minipci-Express Mpcie1 (J35)
KTD-N0819-E Page 64 Slot Connectors 7.1.3 miniPCI-Express mPCIe1 (J35) The miniPCI Express port mPCIe1 is located on the backside. (mSATA not supported) Note Type Signal Signal Type Note WAKE# +3V3 +1.5V CLKREQ# PCIE_mini CLK# PCIE_mini CLK W_Disable# RST# PCIE_RXN +3V3 Dual PCIE_RXP +1.5V SMB_CLK... -
Page 65: Pci-Express X1 Connector (Pcie X1) (J36)
KTD-N0819-E Page 65 Slot Connectors 7.1.4 PCI-Express x1 Connector (PCIe x1) (J36) Connector Definitions The KTQM67/mITX supports one PCIe x1. Note Type Signal Signal Type Note +12V +12V +12V +12V +12V SMB_CLK CL_CLK SMB_DATA CL_RST SMB_ALERT +3V3 CL_DATA JTAG_TEST# +3V3 3V3 Dual B10 A10 +3V3... -
Page 66: Pci Slot Connectors
Slot Connectors 7.2 PCI Slot Connectors KTQM67/Flex support 3 PCI slots PCI0 (J45), PCI1 (J48), PCI2 (J49) and KTQM67/ATXP supports 6 PCI slots PCI0 (J45), PCI1 (J48), PCI2 (J49) PCI3 (J54), PCI4 (J53), PCI5 (J55). KTQm67/mITX doesn’t support PCI slots, but optionally PCIex1 to PCI Dual Flexible Riser can be used. -
Page 67: Signal Description - Pci Slot Connector
KTD-N0819-E Page 67 Slot Connectors 7.2.1 Signal Description – PCI Slot Connector SYSTEM PINS Clock provides timing for all transactions on PCI and is an input to every PCI device. All other PCI signals, except RST#, INTA#, INTB#, INTC#, and INTD#, are sampled on the risingedge of CLK and all other timing parameters are defined with respect to this edge. -
Page 68: Ktqm67 Pci Irq & Int Routing
Interrupt D is used to request an interrupt and only has meaning on a multi-function device. INTD# 7.2.2 KTQM67 PCI IRQ & INT routing Board type Slot IDSEL INTA INTB INTC INTD KTQM67/Flex REQ0 GNT0 INTA INTB INTC INTD REQ1 GNT1 INTB... -
Page 69: On-Board - & Mating Connector Types
Type no. Manufacturer Type no. FAN_CPU Foxconn HF2704E-M1 1375820-4 (4-pole) FAN_SYS 1470947-1 1375820-3 (3-pole) Molex 22-23-2061 Molex 22-01-2065 KBDMSE Kontron KT 1046-3381 Foxconn HF1104E Molex 50-57-9404 CDROM Molex 70543-0038 Hon Hai LD1807V-S52T Molex 67489-8005 SATA KT 821035 (cable kit) Kontron... -
Page 70: System Resources
KTD-N0819-E Page 70 System Resources 9 System Resources 9.1 Memory Map Address (hex) Size Description KTQM67 Users Guide... -
Page 71: Pci Devices
KTD-N0819-E Page 71 System Resources 9.2 PCI Devices Device Function Vendor Device Chip Device Function KTQM67 Users Guide... -
Page 72: Interrupt Usage
KTD-N0819-E Page 72 System Resources 9.3 Interrupt Usage Notes IRQ0 IRQ1 IRQ2 IRQ3 IRQ4 IRQ5 IRQ6 IRQ7 IRQ8 IRQ9 IRQ10 IRQ11 IRQ12 IRQ13 IRQ14 IRQ15 IRQ16 IRQ17 IRQ18 IRQ19 IRQ20 IRQ21 IRQ22 IRQ23 IRQ24 IRQ25 IRQ26 KTQM67 Users Guide... -
Page 73: Io Map
KTD-N0819-E Page 73 System Resources 9.4 IO Map Address range (hex) Size Description KTQM67 Users Guide... - Page 74 KTD-N0819-E Page 74 System Resources KTQM67 Users Guide...
-
Page 75: Bios
KTD-N0819-E Page 75 BIOS 10 BIOS This section details specific BIOS features for the KTQM67 family of boards KTQM67 Users Guide... -
Page 76: Ami Bios Beep Codes
KTD-N0819-E Page 76 AMI BIOS Beep Codes 11 AMI BIOS Beep Codes Boot Block Beep Codes: Number of Description Beeps Insert diskette in floppy drive A: ‘AMIBOOT.ROM’ file not found in root directory of diskette in A: Base Memory error Flash Programming successful Floppy read error Keyboard controller BAT command failed... -
Page 77: Os Setup
KTD-N0819-E Page 77 OS Setup 12 OS Setup Use the Setup.exe files for all relevant drivers. The drivers can be found on KTQM67 Driver CD or they can be downloaded from the homepage http://www.kontron.com/ KTQM67 Users Guide...
