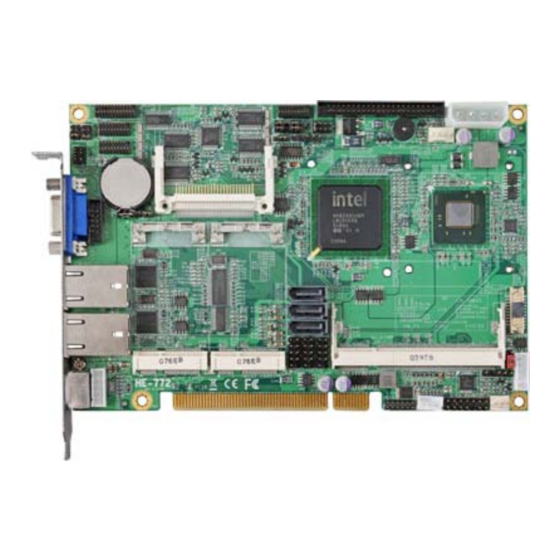

Commell HE-772 User Manual

Half-size pci bus cpu card
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

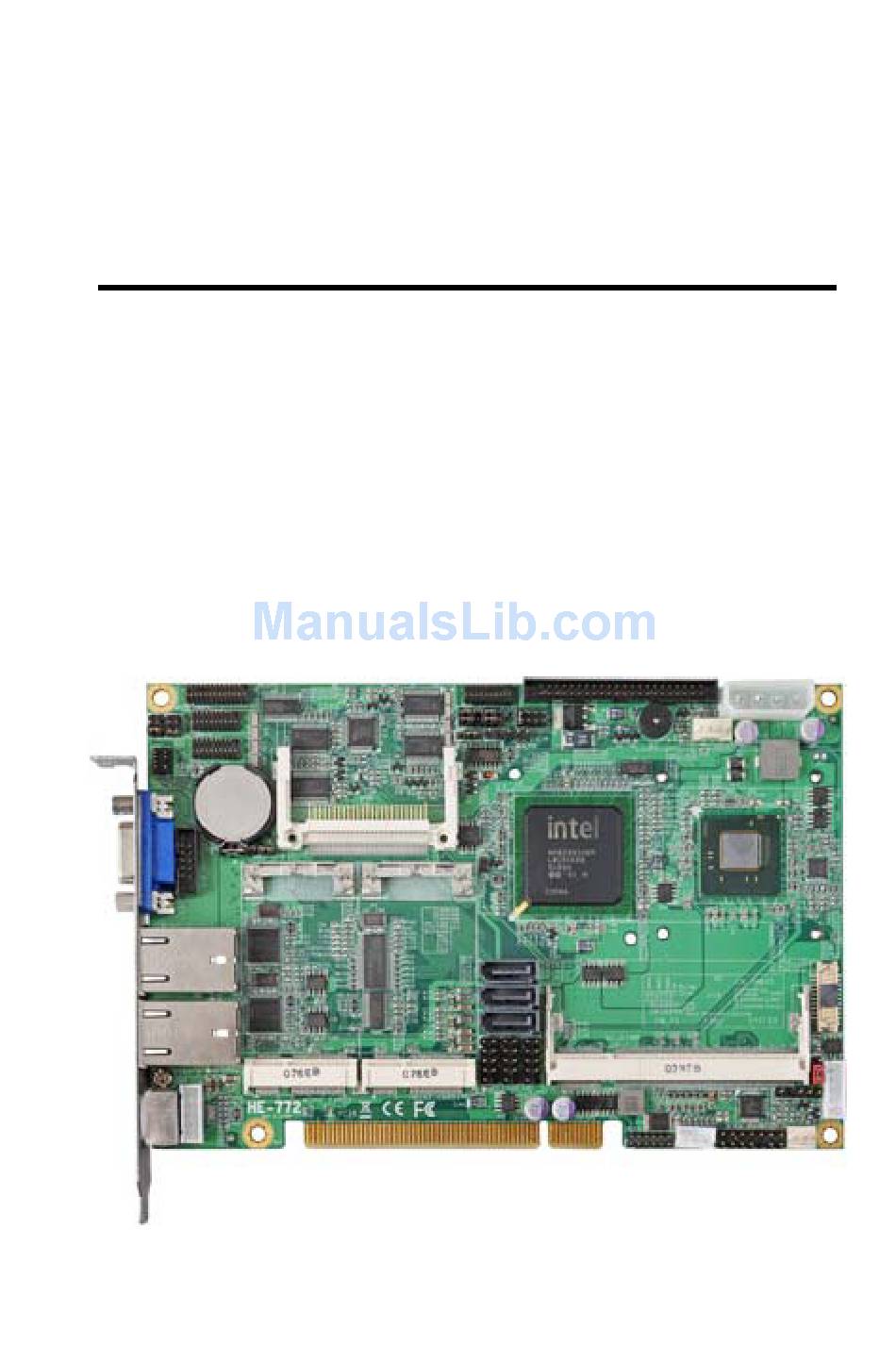

HE-772
Half-size PCI Bus CPU Card
User's Manual
Edition A
2010/10/05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE-772 and is the answer not in the manual?

Questions and answers

Related Manuals for Commell HE-772

Summary of Contents for Commell HE-772

  • Page 1 HE-772 Half-size PCI Bus CPU Card User’s Manual Edition A 2010/10/05...
  • Page 3 HE-772 User’s Manual Copyright Copyright 2010. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

  • Page 4: Packing List

    HE-772 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: HE-772 “Half-size PCI Bus CPU Card” x 1 Cable Kit: USB Cable x 1 Audio Cable x 1 (OALUSBA-3) (OALPJ-HDU Dual COM PORT cable x 1...
  • Page 5 HE-772 User’s Manual Index Chapter 1 <Introduction> ................. 5 1.1 <Product Overview> .................. 5 1.2 <Product Specification>................6 1.3 <Mechanical Drawing> ................8 1.4 <Block Diagram> ..................9 Chapter 2 <Hardware Setup>................. 10 2.1 <Connector Location> ................10 2.2 <Jumper Reference>................12 2.3 <Connector Reference>...
  • Page 6 HE-772 User’s Manual 3.1 <Audio Configuration>................34 3.2 <Video Memory Setup> ................35 3.3 <Display Properties Setting> ..............37 Chapter 4 <BIOS Setup> ................40 Appendix A <I/O Port Pin Assignment> ............41 A.1 < LPT Port > .................... 41 A.2 <...

  • Page 7: Chapter 1

    HE-772 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> HE-772G/H/A is the Half-size PCI Bus CPU Card, with Intel® Atom N450/D410/D510 processor, integrated GMA3150 graphics, Intel® ICH8M, DDR2 SO-DIMM memory, Realtek HD Audio , CF , SATAII , LVDS , LPT , IrDA , DIO, CN_USB , PS2 , SMBUS, CN_INV , CN_CRT , IDE , CN_ATKB , MINI-CARD and Intel®...

  • Page 8: Product Specification

    HE-772 User’s Manual 1.2 <Product Specification> General Specification Form Factor Half-size PCI Bus CPU Card Intel® Atom N450 Processor 1.66GHz (HE-772G) Intel® Atom D410 Processor 1.66GHz (HE-772H) Intel® Atom D510 Processor 1.66GHz (HE-772A) Package type: FCBGA559 Memory 1 x 200-pin DDR2 SO-DIMM 667MHz SDRAM up to 2GB/4GB/4GB...
  • Page 9 HE-772 User’s Manual Ethernet Interface Controller 2 x Intel® 82583V Gigabit Ethernet controller Type Triple speed 10/100/1000Base-T Auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant Connector Two External RJ45 connectors with LED on rear I/O panel Expansive Interface PCIE mini card Two PCIE mini card socket Power supply: +1.5V, 3VSB...

  • Page 10: Mechanical Drawing

    HE-772 User’s Manual 1.3 <Mechanical Drawing> Unit: inch...
  • Page 11 HE-772 User’s Manual 1.4 <Block Diagram> VGA Interface Intel GMA 3150 Intel® Atom DDR2 SODIMM 667 MHz up to 2G/4G/4G N450/D410/ D510 18bit Single Channel LVDS 1 x IDE 3 x Serial ATA II 2 x PCIE mini card 1 x Compact Flash ICH8M 6 x USB2.0...

  • Page 12: Chapter 2

    HE-772 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> COM3/4/5/6 CN_AUDIO CN_IR CN_INV CN_LVDS COM1/2 CPUFAN DC_IN CN_LPT CN_ATKB MINICARD CN_USB DDRII SYSFAN CN_DIO CN_CRT SATA CN_SMBUS CN_PS JFRNT...
  • Page 13 HE-772 User’s Manual HE-772G/H/A RJ45 1/2...

  • Page 14: Jumper Reference

    HE-772 User’s Manual 2.2 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select JCSEL1 CN_COM2 RS-232 RS422 RS485 Setting / CN_IR IrDA JCSEL2 Setting CN_COM3/4/5/6 RS-232 JCSEL1 JCSEL2 JRTC JVLCD JP1/2...

  • Page 15: Connector Reference

    HE-772 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connector> Connector Function Remark DDRII 200 –pin DDR2 SO-DIMM SDRAM slot SATA1/2/3 7-pin Serial ATA connector Compact Flash Type II socket 44-pin primary IDE connector MINI_CARD 2 x 52-pin PCI Express mini card...

  • Page 16: Cpu And Memory Setup

    HE-772 User’s Manual 2.4 <CPU and Memory Setup> Non-ECC, unbuffered memory is supported only. HE-772G provides one 200-pin DDR2 SO-DIMM to support DDR2 667 memory modules support up to 2GB of capacity. Suggestion: DDR2 SO-DIMM Modules: –Raw Card A = 2 Ranks of x16 SDRAMs (Double-sided) –Raw Card C = 1 Rank of x16 SDRAMs (Single-sided)
  • Page 17 HE-772 User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.
  • Page 18 HE-772 User’s Manual 2.6 < Enhanced IDE & CF Interface > The board supports one enhanced IDE interface for 2 ATAPI devices with ATA33. Based on embedded application, the board has one 44-pin IDE connector +5V supported for disk on module.

  • Page 19: Serial Ata Interface

    HE-772 User’s Manual 2.7 <Serial ATA Interface> Based on Intel ICH8M, the board provides one Serial ATAII interfaces with up to 300MB/s of transfer rate. SATA 1/2/3...

  • Page 20: Lan Interface

    HE-772 User’s Manual 2.8 <LAN Interface> The Intel® 82583v supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance.

  • Page 21: Onboard Display Interface

    HE-772 User’s Manual 2.9 <Onboard Display Interface> Based on Intel® Atom N450/D410/D510 with built-in GMA (Graphic Media Accelerator) 3150 graphics, the board provides one DB15 on real external I/O port, and one 20-pin LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for CRT and LVDS.
  • Page 22 HE-772 User’s Manual 2.9.2 <Digital Display> The board provides one 20-pin LVDS connector for 18 bit single channel panels, HE-772G supports 1280 x 800 (WUXGA) resolution displays. HE-772H/A supports 1366 x 768 (WUXGA) resolution displays, with one LCD backlight inverter connector and one jumper for panel voltage setting...
  • Page 23 HE-772 User’s Manual Connector: CN_INV Jumper: JVLCD Type: 5-pin Inverter power connector Type: 3-pin Power select jumper Connector model: molex_53261-5pin Description Description +12V +3.3V Default: 2-3 ENABKL Connector: CN_LVDS Type: onboard 20-pin connector for LVDS connector Connector model: HIROSE DF13-20DP-1.25V...
  • Page 24 LCD Installation Guide: Preparing the HE-772, LCD panel and the backlight inverter Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +5V or +3.3V.
  • Page 25 HE-772 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: HE-772 BIOS panel type selection form On board Single channel LVDS 18bit Output format...
  • Page 26 HE-772 User’s Manual 2.10 <Onboard Audio Interface> The board provides the onboard high definition audio with Realtek ALC888 Connector: CN_AUDIO Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header Description Description MIC2_L AGND MIC2_R AVCC FRO_R MIC2_JD F_IO_SEN FRO_L LINE2_JD...
  • Page 27 HE-772 User’s Manual 2.11 <USB2.0 Interface> Connector: CN_USB Type: 10-pin (5 x 2) header for USB Port Description Description Data0- Data1- Data0+ Data1+ Ground Ground Ground CN_USB 1/2/3 PS: The USB2.0 will be only active when you connecting with the USB2.0 devices, if you insert an USB1.1 device, the port will be changed to USB1.1 protocol automatically.
  • Page 28 HE-772 User’s Manual 2.12 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface, and a SMBUS (System management bus) interface for control panel application. Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm Description Description Ground...
  • Page 29 HE-772 User’s Manual 2.13 <Serial Port Jumper Setting > The board provides two RS232 serial ports, with jumper selectable RS422/485/IrDA for COM2. Connector: CN_COM 1/2 Type: 20-pin D-sub male connector Description Description MDCD1- DCDBTXC- MSIN1- SINBTXC MSO1- SOUTBRXC MDTR1- DTRBRXC-...
  • Page 30 HE-772 User’s Manual Connector: CN_COM5/6 Type: 20-pin (10 x 2) 1.27mm x 2.54mm-pitch header for COM5/6 Description Description HS_DCD3- HS DCD4- HS_RXD3 HS RXD4 HS_TXD3 HS TXD4 HS_DTR4- HS DTR4- Ground Ground HS_DSR3- HS DSR4- HS_RTS3- HS RTS4- HS_CTS3- HS DSR4-...
  • Page 31 HE-772 User’s Manual Default: RS232 COM5/6 COM3/4 COM1/2 JCSEL1 JCSEL2...
  • Page 32 HE-772 User’s Manual 2.14 <Power & FAN Connector > The board requires onboard 4-pin DC 5V/12V power required, optional 5VSB for ATX. 2.14.1 <Power Input> Connector: DC_IN Type: 4-pin header Description Description +12V Ground Ground DC_IN...
  • Page 33 HE-772 User’s Manual 2.14.2 <Power Input> Connector: CN_PS Type: 3-pin connector Description +5VSTBY CN_PS...
  • Page 34 HE-772 User’s Manual 2.14.3 <Fan Connector> Connector: SYSFAN Type: 3-pin fan wafer connector Description Description Description Ground +12V CSFAN Connector: CPUFAN Type: 4-pin fan wafer connector Description Ground +12V P1FAN CPUFAN SYSFAN...

  • Page 35: Indicator And Switch

    HE-772 User’s Manual 2.15 <Indicator and Switch> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header...
  • Page 36 HE-772 User’s Manual Chapter 3 <System Configuration> 3.1 <Audio Configuration> The board integrates Intel® ICH8-M with REALTEK® ALC888 codec. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver.
  • Page 37 HE-772 User’s Manual 3.2 <Video Memory Setup> Based on Intel® Atom N450/D410/D510 chipset with GMA (Graphic Media Accelerator) 3150, the board supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would allow the video memory be triggered up to 384MB.
  • Page 38 HE-772 User’s Manual Total GFX Memory Size: This item can let you select a static amount of page-locked graphics memory; which will be allocated during driver initialization. Once you select the memory amount, it will be no longer available for system memory.
  • Page 39 HE-772 User’s Manual 3.3 <Display Properties Setting> Based on Intel® Atom N450/D410/D510 with GMA3150 (Graphic Media Accelerator), the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices.
  • Page 40 HE-772 User’s Manual 3. This setup options can let you define each device settings. Set the main display device here Choose Intel® Dual Display Clone setup dual display mode same screen...
  • Page 41 HE-772 User’s Manual Choose Extended Desktop to setup the dual display mode as different screen display Choose Monitor setup monitor for Colors, Resolution Refresh Rate...

  • Page 42: Chapter 4

    HE-772 User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel® x86 and compatible CPU architecture based processors and computers.

  • Page 43: Appendix A

    HE-772 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 < LPT Port > Connector: CN_LPT Type: 25-pin header for LPT Port Description Description -PSTB PRD0 PRD1 PRD2- PRD3 PRD4 PRD5 PRD6 PRD7 ACK- BUSY SLCT AFD- ERR- INIT- SLIN-...

  • Page 44: A.3 < Lan Port

    HE-772 User’s Manual A.3 < LAN Port > Connector: RJ45 Type: RJ45 connector with LED on rear panel Description TRD0+ TRD0- TRD1+ TRD1- TRD2+ TRD2- TRD3+ TRD3- A.4 < IrDA Port > Connector: CN_IR Type: 5-pin header for SIR Port...

  • Page 45: A.6 < Dio Port

    HE-772 User’s Manual A.6 < DIO Port > Connector: CN_DIO Type: 12-pin D-sub male connector on rear panel Description Description Ground GP12 Ground GP16 GP10 GP13 GP14 GP17 GP11 GP15 +12V A.7 < IDE Port > Connector: IDE Type: 10-pin D-sub male connector on rear panel...

  • Page 46: A.9 < Ps2 Port

    HE-772 User’s Manual A.8 < Serial ATA Port > Connector: SATA1/2/3 Type: 7-pin wafer connector Description GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.9 < PS2 Port > The PS/2 connector supports standard PS/2 keyboard directly or both PS/2 keyboard and mouse through for PS/2 Y-cable.

  • Page 47: B.1 Bios Auto Flash Tool

    HE-772 User’s Manual Appendix B <Flash BIOS> B.1 BIOS Auto Flash Tool The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.award.com...

  • Page 48: Appendix C

    HE-772 User’s Manual Appendix C <System Resources> C.1 <Direct memory access(DMA)> (HE-772A) C.2<Input/output(IO)> (HE-772A)

  • Page 49: C.3 (He-772A)

    HE-772 User’s Manual C.3<Interrupt reguest(IRQ)> (HE-772A)

  • Page 50: C.4 (He-772A)

    HE-772 User’s Manual C.4<Memory> (HE-772A)
  • Page 51 HE-772 User’s Manual...

  • Page 52: Appendix E

    HE-772 User’s Manual Appendix E <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range...

  • Page 53: Contact Information

    Taiwan Commate Computer Inc. Address 19 F No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website http://www.commell.com.tw E-Mail info@commell.com.tw (General Information) tech@commell.com.tw (Technical Support) Commell is our trademark of industrial PC division...
