- Page 1 HS-774 Half-size PCI Bus CPU Card User’s Manual Edition 1.6 2015/05/20...
- Page 3 HS-774 User’s Manual Copyright Copyright 2012, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
- Page 4 HS-774 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: HS-774 Half-size PCI Bus CPU Card x 1 Cable Kit: SATA Cable x 2 4-pin to 3-pin ATX cable x 1 (OALSATA3-L)/ (1040529) (OAL-ATX-C)/ (1040184) PS/2 Keyboard &...
-
Page 5: Table Of Contents
HS-774 User’s Manual Index Chapter 1 <Introduction> .............6 1.1 <Product Overview>..................6 1.2 <Product Specification>................7 1.3 <Mechanical Drawing>................. 8 1.4 <Block Diagram>..................9 Chapter 2 <Hardware Setup> ..........10 2.1 <Connector Location> ................10 2.2 <Jumper Location & Reference>..............11 2.3 <Connector Reference>... - Page 6 HS-774 User’s Manual Chapter 3 <System Setup> ............35 3.1 <Audio Configuration> ................35 3.2 <Display Properties Setting> ..............36 3.3 <SATA configuration> .................38 3.4 <SATA RAID Configuration> ...............39 Chapter 4 <BIOS Setup> .............41 Appendix A <I/O Port Pin Assignment> ......43 A.1 <Serial ATA Port> ..................43 A.2 <IrDA Port>....................43...
- Page 7 HS-774 User’s Manual (This page is left for blank)
-
Page 8: Chapter 1

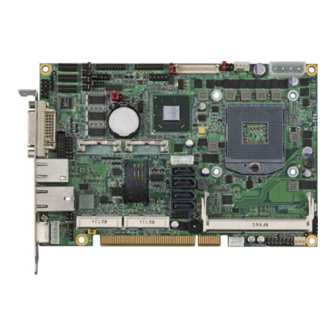

HS-774 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> HS-774 the 3 Generation Intel of the Half-size PCI Bus CPU Card, supports 3 Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor and features Intel QM77 chipset, integrated HD Graphics, DDR3 memory, REALTEK High Definition Audio, Serial ATA with RAID function for a system and Intel Gigabit LAN. -
Page 9: Product Specification
HS-774 User’s Manual 1.2 <Product Specification> General Specification Form Factor Half-size PCI Bus CPU Card Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor Package type: rPGA988B Memory 2 x DDRIII SO-DIMM 1066/1333/1600 MHz up to 16GB Support Non-ECC, unbuffered memory only... -
Page 10: Mechanical Drawing
HS-774 User’s Manual 1.3 <Mechanical Drawing>... -
Page 11: Block Diagram
HS-774 User’s Manual 1.4 <Block Diagram> Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor 2 x 204-pin DDR3 SO-DIMM 1066/1333/1600 MHz up to 16GB 1 x LVDS 2 x PCI Express mini card 1 x DVI-I QM77 4 x USB3.0 2 x Serial ATAIII 2 x USB2.0... -
Page 12: Chapter 2
HS-774 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_USB3-2 COM 1 / 2 CN_LVDS COM 3 / 4 CN_USB3-1 CN_USB1 CPUFAN DC_IN COM 5 / 6 CD_IN CN_AUDIO CN_LPC CN_INV CN_CRT SATA1 SATA2 SATA3 SATA4 SO-DIMM1 CN_SMBUS CN_IR... -
Page 13: Jumper Location & Reference
HS-774 User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select Com1 Voltage Setting (For Pin 9) Com2 Voltage Setting (For Pin 9) Com3 Voltage Setting (For Pin 9) Com4 Voltage Setting (For Pin 9) -
Page 14: Connector Reference
HS-774 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Socket rPGA988B for PGA988 CPU SO-DIMM 1/2 204 -pin DDR3 SO-DIMM socket SATA 1/2 7-pin Serial ATAIII connector SATA 3/4 7-pin Serial ATAII connector DC_IN 4-pin power supply connector... -
Page 15: Cpu And Memory Setup
HS-774 User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> The board comes with the socket rPGA988 for Intel Ivy Bridge Processor, Please follow the instruction to install the CPU properly. Unlock way Socket CPU Check point 1. Use the flat-type screw drive 2. -
Page 16: Memory Setup
HS-774 User’s Manual 2.4.2 <Memory Setup> The board provides 2 x 204-pin DDR3 SO-DIMM to support 1066/1333/1600MHz DDR3 memory module up to 16GB. Support Non-ECC, unbuffered memory only. SO-DIMM1 SO-DIMM2... -
Page 17: Cmos & Atx Setup
HS-774 User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 18: Serial Ata Interface
HS-774 User’s Manual 2.6 <Serial ATA Interface> HS-774 has Two Serial ATA II(SATA Port3/4) & Two Serial ATA III(SATA Port1/2) interfaces with RAID function, the transfer rate of the Serial ATA II can be up to 300MB/s & Serial ATA III can be up to 600MB/s. Please go to http://www.serialata.org/... -
Page 19: Ethernet Interface
HS-774 User’s Manual 2.7 <Ethernet Interface> The board integrates with one Intel 82574L Gigabit Ethernet & one Intel 82579LM controllers, as the PCI Express bus. The Intel 82574L & 82579LM supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 20: Onboard Display Interface
HS-774 User’s Manual 2.8 <Onboard Display Interface> Based on Intel CPU with built-in HD Graphic, the board provides one DB15 on Ivy Bridge DVI-I real external DVI VGA cable, one 40-pin LVDS interface with 5-pin LCD backlight inverter connector and one DVI-I on bracket inverter connector and one DVI-I on bracket. -
Page 21: Digital Display
HS-774 User’s Manual 2.8.2 <Digital Display> The board provides DVI external connector and one 40-pin LVDS connector for 24-bit single/dual channel panels, supports up to 2048 x 1536 (UXGA) resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. - Page 22 HS-774 User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description +12V LCDVCC (3.3V) Reserved (Note) LCDVCC (5V) LCDVCC (12V) Default: 1-2 ENABKL Note: Reserved for MB internal test Please treat it as NC.
- Page 23 LCD Installation Guide: Preparing the HS-774, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
- Page 24 HS-774 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel...
-
Page 25: Integrated Audio Interface
HS-774 User’s Manual 2.9 <Integrated Audio Interface> The board provides the onboard high definition audio with Realtek ALC888. CDIN CN_AUDIO Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R Speaker_R MIC Detect SENSE... -
Page 26: Usb Interface
HS-774 User’s Manual 2.10 <USB Interface> HS-774 integrates four USB3.0 ports and two USB2.0 ports. The specifications of USB3.0 are listed below: Interface USB3.0 Intel®QM77 Controller Transfer Rate Up to 5Gb/s Voltage The specifications of USB2.0 are list: Interface USB2.0 Intel®QM77... - Page 27 HS-774 User’s Manual Connector: CN_USB3- 1/2 Type: 20-pin (2 x 10) header (pitch = 2.0mm) Description Description VCC(5V_SB/ 5V) USB3.0_RX0- VCC(5V_SB/ 5V) USB3.0_RX0+ USB3.0_RX1- Ground USB3.0_RX1+ USB3.0_TX0- Ground USB3.0_TX0+ USB3.0_TX1- Ground USB3.0_TX1+ Data0- Ground Data0+ Data1- Data1+ Connector: CN_USB1 Type: 10-pin (2 x 5) header (pitch = 2.54mm)
-
Page 28: Serial Port
HS-774 User’s Manual 2.11 <Serial Port> The board supports five RS232 serial port and one jumper selectable RS232/ 422/485 serial ports. The jumper JCSEL1 and JCSEL2 can let you configure the communicating modes for COM2. Connector: COM1/2, 3/4, 5/6 Type: 20-pin (2 x 10) header pitch = 2.54x1.27mm... - Page 29 HS-774 User’s Manual Function JCSEL2 JCSEL1 IrDA RS-422 RS-485 RS-232 Default setting: JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2) Jumper: JP1/JP2/JP3/JP4 (COM1/2/3/4) Type: onboard 6-pin header Power Mode JP1/2/3/4 Pin 9 with 5V Power Pin 9 with 12V Power Standard COM port...
-
Page 30: Pcie Mini Card And Sim Interface
The MPX-SDVOD card will not work if it is placed in other slot. Please also be noted that this slot is the only slot for MPX-SDVOX card but a customized BIOS is needed for the MPX-SDVOX card. Please contact Commell for customized BIOS for your MPX-SDVOX card. - Page 31 HS-774 User’s Manual MINI_CARD2 MINI_CARD1 SIMM Connector: SIMM Type: 6-pin SIM socket Description Description SIMVCC SIMRST SIMCLK SIMVPP SIMDATA...
-
Page 32: Sim Setup
HS-774 User’s Manual 2.12.1 <SIM Setup> Step1. SIM card holder is marked by circle. Slide the cap toward OPEN direction. Step 2. Make sure that the cap is now at the OPEN position. Step 3. Flip the cap up for inserting a SIM card into. - Page 33 HS-774 User’s Manual Step 4. Insert a SIM card as shown in the photo. Be sure that the corner cut is on top and the golden pads are up. Step 5. Now, flip down the cap as shown in the photo.
-
Page 34: Gpio And Smbus Interface
HS-774 User’s Manual 2.13 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm) -
Page 35: Power Supply And Fan Interface
HS-774 User’s Manual 2.14 <Power Supply and Fan Interface > The board requires onboard 4-pin DC 5V/12V power required, optional 5VSB for ATX. 2.14.1 <Power Input> Connector: DC_IN Type: 4-pin header Description Description +12V Ground Ground Connector: CN_PS Type: 3-pin connector... -
Page 36: Switch And Indicator
HS-774 User’s Manual 2.15 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... -
Page 37: Chapter 3
HS-774 User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® QM77 with REALTEK® ALC888 codec. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. -
Page 38: Display Properties Setting
HS-774 User’s Manual 3.2 <Display Properties Setting> Based on Intel QM77 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. - Page 39 HS-774 User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Resolution and Refresh Rate Click Intel® Dual Display Clone to setup the dual display mode as same screen...
-
Page 40: Sata Configuration
HS-774 User’s Manual 3.3 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE mode or RAID mode. The RAID mode need more than one HDD is applied. -38-... -
Page 41: Sata Raid Configuration
HS-774 User’s Manual 3.4 <SATA RAID Configuration> The board integrates Intel® QM77 PCH with RAID function for Serial ATA drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. It needs two unused drives to build this operation. - Page 42 HS-774 User’s Manual Please press <CTRL+I> to enter the RAID configuration menu. You can setup the RAID under operation system for Microsoft® Windows XP SP1 , please install the Intel® Application Accelerator Ver.4.5 later to support RAID configuration with Intel® Matrix Storage Technology...
-
Page 43: Chapter 4
HS-774 User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 44 HS-774 User’s Manual (This page is left for blank)
-
Page 45: Appendix A
HS-774 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2/3/4/5/6 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR JCSEL1 must jump to “SIR” Type: 5-pin header for SIR Ports... -
Page 46: Lan Led Port
HS-774 User’s Manual A.5 <LAN LED Port> Connector: JSPD1/2 Type: 5-pin header for LAN Speed LED connector When Lan speed 10/100Mbps Description LED- LED+ When Lan speed 1Gbps Description LED+ LED- Connector: JATC1/2 Type: 5-pin header for LAN Activity LED connector... -
Page 47: Appendix B
HS-774 User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “Phlash.exe”, it’s the utility that can write the data into the... -
Page 48: Appendix C
HS-774 User’s Manual Appendix C <Programming GPIO’s > The GPIO can be programmed with the MSDOS debug program using simple IN/OUT commands. The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ;enter configuration... -
Page 49: Appendix D
HS-774 User’s Manual Appendix D <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 50: Contact Information
19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw i nfo@commell.com.tw (General Information) E-Mail t ech@commell.com.tw (Technical Support) Facebook https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899 Twitter https://twitter.com/Taiwan_Commate Commell is a brand name of Taiwan commate computer Inc.
