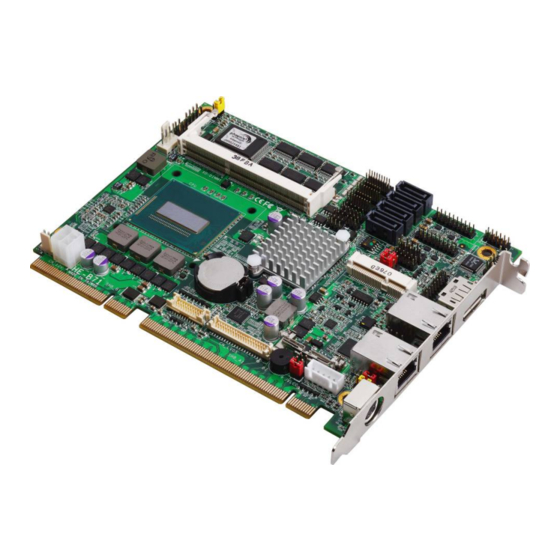

Commell HE-B71 User Manual

Picmg 1.3 half-size cpu card
Hide thumbs

Advertisement

Quick Links

Download this manual
HE-B71
PICMG 1.3 Half-size CPU Card
User's Manual
Edition 1.2
2014/10/09

Advertisement

loading
Need help?

Need help?

Do you have a question about the HE-B71 and is the answer not in the manual?

Questions and answers

Related Manuals for Commell HE-B71

Summary of Contents for Commell HE-B71

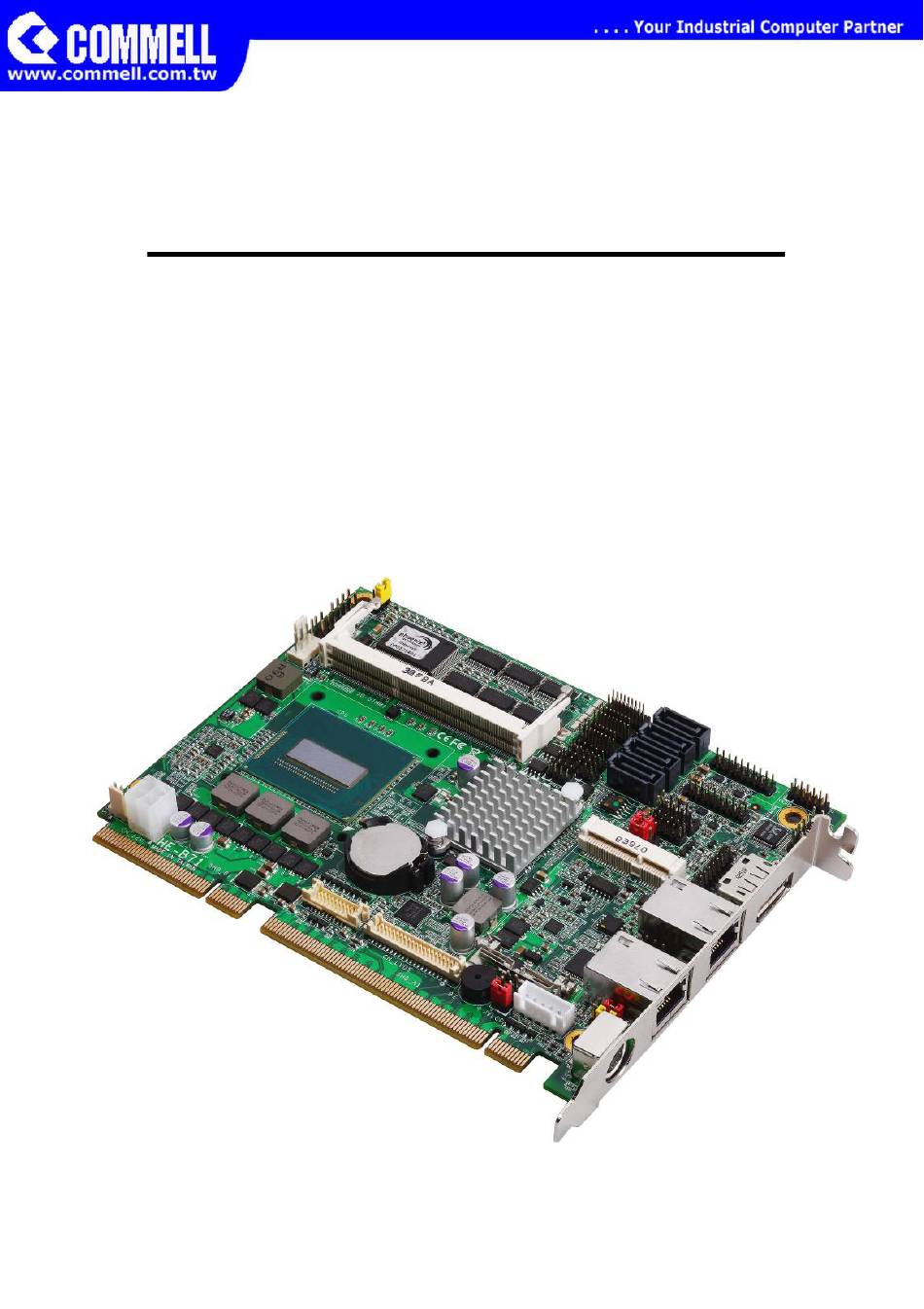

  • Page 1 HE-B71 PICMG 1.3 Half-size CPU Card User’s Manual Edition 1.2 2014/10/09...
  • Page 2 HE-B71 User’s Manual Copyright Copyright 2014, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

  • Page 3: Packing List

    HE-B71 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: HE-B71 PICMG 1.3 Half-size CPU Card x 1 (include Cooler Fan) Cable Kit: SATA Cable x 2 CRT cable x 1 (OALSATA3-L)/ (1040529) (OALVGA-S-7)/ (1040556) USB2.0 Cable x 1...
  • Page 4 HE-B71 User’s Manual Index Chapter 1 <Introduction> ................1 1.1 <Product Overview> ..................1 1.2 <Product Specification>................2 1.3 <Mechanical Drawing> ................. 3 1.4 <Block Diagram>..................4 Chapter 2 <Hardware Setup>................5 2.1 <Connector Location> .................. 5 2.2 <Jumper Location & Reference>..............6 2.3 <Connector Reference>...
  • Page 5 HE-B71 User’s Manual 3.2 <Display Properties Setting> ..............29 3.3 <SATA configuration> ................. 31 3.4 <SATA RAID Configuration>............... 32 Chapter 4 <BIOS Setup> ................34 Appendix A <I/O Port Pin Assignment>.............36 A.1 <Serial ATA Port> ..................36 A.2 <IrDA Port> ....................36 A.3 <LAN Port>...
  • Page 6 HE-B71 User’s Manual (This page is left for blank)
  • Page 7 HE-B71 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> HE-B71 the 4 Generation Intel of the PICMG 1.3 Half-size CPU Card, supports 4 Generation Intel® Core™ i7, Core™ i5, Core™ i3, Celeron Mobile Processor and features Intel DH82QM87 chipset, integrated HD Graphics, DDR3L memory, REALTEK High Definition Audio, Serial ATA with AHCI and RAID function for a system and Intel Gigabit LAN.
  • Page 8 HE-B71 User’s Manual 1.2 <Product Specification> General Specification Form Factor PICMG 1.3 Half-size CPU Card 4th Generation Intel® Core™ i7, Core™ i5, Core™ i3, Celeron® Mobile Processor Package type: FCBGA1364 Memory 2 x DDR3L SO-DIMM 1333/1600 MHz up to 16GB...
  • Page 9 HE-B71 User’s Manual 1.3 <Mechanical Drawing>...
  • Page 10 HE-B71 User’s Manual 1.4 <Block Diagram> Generation Intel® Core™ i7, Core™ i5, Core™ i3, Celeron Mobile Processor Channel A 1 x LVDS 2 x DDR3L SO-DIMM 1333/1600 MHz up to 16GB 1 x DisplayPort PCI-E x16 1 x DVI 1 x PCIe X16(Backplane)
  • Page 11 HE-B71 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> SATA3-4 JCSEL1 CN_COM5/6 CN_USB3-2 SATA3-3 JP1 JP2 CN_COM3/4 CN_USB3-1 SATA3-2 JCSEL2 CN_COM1/2 SATA3-1 CN_DIO SO-DIMM1 CN_AUDIO JFRNT CN_USB2 CN_LPC CPUFAN JVUSB CN_CRT CN_IR CN_SMBUS JRTC JMSATA SYSFAN CN_12V CN_DVI MINI_CARD...
  • Page 12 HE-B71 User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select Com1 Voltage Setting (For Pin 9) Com2 Voltage Setting (For Pin 9) CN_COM2 RS-232 RS422 RS485 Setting JCSEL1 JCSEL2...
  • Page 13 HE-B71 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark FCBGA 1364 CPU SO-DIMM 1/2 204 -pin DDR3L SO-DIMM slot SATA 1/2/3/4 7-pin Serial ATA3 connector CN_12V DC 12V input connector CN_AUDIO 5 x 2-pin audio connector CN_DIO...
  • Page 14 HE-B71 User’s Manual 2.4 <Memory Setup> The board provides 2 x 204-pin DDR3L SO-DIMM to support 1333/1600MHz up to 16GB. Support Non-ECC, unbuffered memory only. SO-DIMM1 SO-DIMM2...
  • Page 15 HE-B71 User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.
  • Page 16 HE-B71 User’s Manual 2.6 <Serial ATA Interface> HE-B71 has Four Serial ATA 3 interfaces with RAID function, the transfer rate of the Serial ATA 3 can be up to 600MB/s. Please go to h ttp://www.serialata.org/ for more about Serial ATA technology information. The main features on Intel® QM87 PCH are listed below: 1.
  • Page 17 HE-B71 User’s Manual 2.7 <Ethernet Interface> The board integrates with one Intel® I210-AT Gigabit Ethernet & Intel® I217-LM controllers, The Intel Gigabit Ethernet supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance. I210-AT I217-LM Onboard Intel® I217-LM GbE controller support Intel® AMT 9.0 feature on primary LAN port.
  • Page 18 HE-B71 User’s Manual 2.8 <Onboard Display Interface> Based on Intel CPU with built-in HD Graphic, the board provide one Haswell Bridge DisplayPort on the external I/O port, one 40-pin LVDS interface with 5-pin LCD backlight inverter connector, one internal 16-pin CRT and 20-pin DVI connector interface .
  • Page 19 HE-B71 User’s Manual 2.8.2 <Internal Display> The board provides one 16-pin CRT, 20-pin DVI and 40-pin LVDS connector for 24-bit single/dual channel panels, the LVDS supports up to 2048 x 1536 (UXGA) resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting.
  • Page 20 HE-B71 User’s Manual Connector: CN_CRT Connector type: 16-pin header connector (pitch = 2.00mm) Pin Number Assignment Pin Number Assignment -CRTATCH IOGND1 IOGND1 IOGND1 -CRTATCH 5VCDA 5HSYNC 5VSYNC 5VCLK Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header...
  • Page 21 HE-B71 User’s Manual Connector: CN_LVDS Type: onboard 40-pin connector Connector model: E&T 3950-B40C-00R or similar (HIROSE DF13-40DP-1.25V compatible) Signal Signal LCDVCC LCDVCC ATX0- BTX0- ATX0+ BTX0+ ATX1- BTX1- ATX1+ BTX1+ ATX2- BTX2- ATX2+ BTX2+ ACLK- BTX3- ACLK+ BTX3+ ATX3- BCLK-...
  • Page 22 LCD Installation Guide: Preparing the HE-B71, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
  • Page 23 HE-B71 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel...
  • Page 24 HE-B71 User’s Manual 2.9 <Integrated Audio Interface> The board provides the onboard high definition audio with Realtek ALC888 Connector: CN_AUDIO Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header Description Description MIC_L Ground MIC_R Speaker_R MIC Detect SENSE Speaker_L Speaker Detect...
  • Page 25 HE-B71 User’s Manual 2.10 <USB Interface> HE-B71 integrates four USB3.0 ports and two USB2.0 ports. The specifications of USB3.0 are listed below: Interface USB3.0 Intel®QM87 Controller Transfer Rate Up to 5Gb/s Voltage The specifications of USB2.0 are list Interface USB2.0 Intel®QM87...
  • Page 26 HE-B71 User’s Manual Connector: CN_USB3 Type: 20-pin (2 x 10) header (pitch = 2.0mm) Description Description USB3.0_RX0- USB3.0_RX0+ USB3.0_RX1- Ground USB3.0_RX1+ USB3.0_TX0- Ground USB3.0_TX0+ USB3.0_TX1- Ground USB3.0_TX1+ Data0- Ground Data0+ Data1- Data1+ Connector: CN_USB2 Type: 10-pin (2 x 5) header (pitch = 2.54mm)
  • Page 27 HE-B71 User’s Manual 2.11 <Serial Port> The board supports five RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. Connector: COM1/2 Type: 20-pin(2 x 10)header pitch = 2.54 x 1.27mm...
  • Page 28 HE-B71 User’s Manual Jumper: JCSEL1,JCSEL2 Type: 12-pin (6 x 2) & 8-pin (4 x 2) for set COM2 mode jumper RS232 RS485 RS422 IrDA JCSEL1 JCSEL2 Default: RS232 COM1/2, 3/4, 5/6 JCSEL1 JCSEL2 Jumper: JP1/JP2 (COM1/2) Type: onboard 6-pin header...
  • Page 29 HE-B71 User’s Manual 2.12 <PCIe Mini Card Interface> The board provides one PCIe mini card slot. MINI_CARD can selectively support mSATA. JMSATA MINI_CARD Connector: JMSATA Type: onboard 3-pin header JMSATA Mode Support mSATA for MINI_CARD1 Support PCIe and USB Default setting: 2-3...
  • Page 30 HE-B71 User’s Manual 2.13 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. The GPIO is an Open-drain output TTL-level input.
  • Page 31 HE-B71 User’s Manual 2.14 <Power Supply and Fan Interface > The HE-B71 needs a standard ATX power supply from Backplane's +12V , 5VSB & 3VSB and the board provides one 4-pin fan connector supports smart fan for CPU cooler and one 3-pin cooler fan connectors for system and Northbridge chip. Please connect this well before you finishing the system setup.
  • Page 32 HE-B71 User’s Manual 2.14.2 <Fan connector> The board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system. CPUFAN SYSFAN Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V...
  • Page 33 HE-B71 User’s Manual 2.15 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header...
  • Page 34 HE-B71 User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® QM87 with REALTEK® ALC888 codec. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver.
  • Page 35 HE-B71 User’s Manual 3.2 <Display Properties Setting> Based on Intel QM87 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices.
  • Page 36 HE-B71 User’s Manual 3. This setup options can let you define each device settings. Click Display Settings to setup the monitor for Resolution and Refresh Rate Click Multiple Displays to setup the triple display mode as same screen -30-...

  • Page 37: Sata Mode

    HE-B71 User’s Manual 3.3 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE mode, AHCI mode or RAID mode. The RAID mode requires more than one HDD before use.
  • Page 38 HE-B71 User’s Manual 3.4 <SATA RAID Configuration> The board integrates Intel® QM87 PCH with RAID function for Serial ATA drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. It needs two unused drives to build this operation.
  • Page 39 HE-B71 User’s Manual When you boot, press <CTRL+I> to enter the RAID configuration menu. If you are installing Windows 7, when the installation is complete, please install the Intel® Rapid Storage Technology. If you are installing Windows XP, first, you need to install the RAID driver in the installation screen (need a floppy disk).
  • Page 40 HE-B71 User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers.
  • Page 41 HE-B71 User’s Manual (This page is left for blank) -35-...
  • Page 42 HE-B71 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA3 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR JCSEL1 must jump to “SIR” Type: 5-pin header for SIR Ports...
  • Page 43 HE-B71 User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: h ttp://www.phoenix.com/en/home/ h ttp://www.commell.com.tw/Support/Support_SBC.htm...
  • Page 44 HE-B71 User’s Manual Appendix C <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. The DC character please refer to GPIO paragraph(Page24). GPIO0…..GPIO7 bit0……bit7 -o 2E 87 ;enter configuration...
  • Page 45 HE-B71 User’s Manual Appendix D <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range...

  • Page 46: Contact Information

    H T UU UTU H i nfo@commell.com.tw (General Information) H T UU UTU H E-Mail t ech@commell.com.tw (Technical Support) H T UU UTU H Facebook https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899 Twitter https://twitter.com/Taiwan_Commate Commell is a brand name of Taiwan commate computer Inc. -40-...
