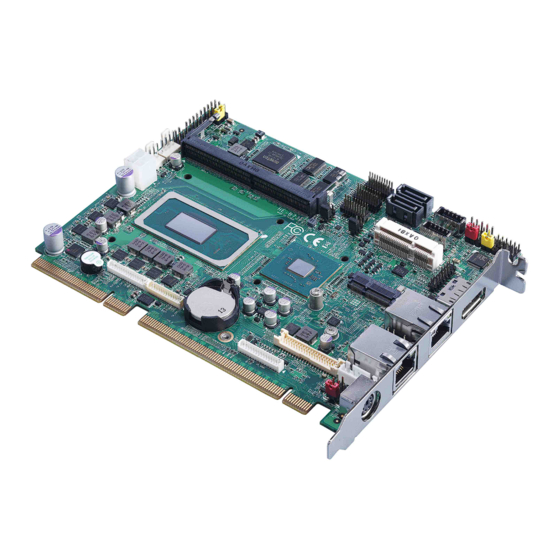

- Page 1 HE-B73 PICMG 1.3 Half-size CPU Card User’s Manual Edition 1.2 2021/11/18...
- Page 2 HE-B73 User’s Manual Copyright Copyright 2021, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
- Page 3 HE-B73 User’s Manual Packing List: Please check the package content before you starting using the board. 1 x Dual COM PORT Cable 1 x HE-B73 PICMG 1.3 Half-size CPU Card (OALES-BKU2) / (1040087) (include Cooler Fan) Appendix G 2 x SATA Cable...
-
Page 4: Table Of Contents
HE-B73 User’s Manual Index Chapter 1 <Introduction>..............4 1.1 <Product Overview>............4 1.2 <Product Specification> ............5 1.3 <Block Diagram>..............6 Chapter 2 <Hardware setup> ............7 2.1 <Connector Location and Reference> ........ 7 2.1.1 <Internal connectors list> ..........8 2.1.2 <External connectors list>.........8 2.2 <Memory Setup>..............9... -
Page 5: Chapter 1
Chapter 1 <Introduction> 1.1 <Product Overview> HE-B73 is a PICMG 1.3 Half-size CPU Card which supports Tiger Lake/11th Gen H Processors, integrated UHD Graphics, DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN, USB3.2 Gen2, SATA3 with AHCI function for a system. -
Page 6: Product Specification
HE-B73 User’s Manual 1.2 <Product Specification> System Processor Tiger Lake/11th Gen H Processor FCBGA1787 package Chipset Intel® QM580E / RM590E (TGL-H Xeon CPUs have to use RM590E) Memory 2 x DDR4 SO-DIMM 3200 MHz up to 64GB, Support Non-ECC, unbuffered memory... -
Page 7: Block Diagram
HE-B73 User’s Manual 1.3 <Block Diagram> PTN3460 DDR4 SODIMM 3200 LVDS DDR4 SODIMM 3200 Tiger Lake H PTN3355 Processor 1 x M.2 KEY M 2280 1 x PCIe X16 Slot (Backplane) DMI x8 2 x SATA I219-LM QM580E 1 x M.2 2230... -
Page 8: Chapter 2
HE-B73 User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> SATA3-1 CN_COM5/6 TYPE_E-1 SATA3-2 CN_COM3/4 TYPE_E-2 CN_COM1/2 CN_USB1 CN_DIO CN_USB2 CN_AUDIO JFRNT DDR4_A CN_CRT SYSFAN MINI_CARD Display Port CPUFAN CN_12V RJ45-1 CN_SMBUS JLANLED RJ45-2 CN_INV CN_EDP2 PS/2 CN_EDP1... -
Page 9: Internal Connectors List
HE-B73 User’s Manual 2.1.1 <Internal connectors list> Connector Function DDR4_A/B 260-pin DDR4 SO-DIMM slot SATA3-1/ 3-2 7-pin SATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LVDS 20 x 2-pin LVDS connector CN_INV 5-pin LCD inverter connector CN_SMBUS 5-pin SMBus connector... -
Page 10: Memory Setup
HE-B73 User’s Manual 2.2 <Memory Setup> HE-B73 has 260-pin DDR4 SODIMM support up to 64GB of memory capacity and 1.2 Voltage. The memory frequency supports 3200 MHz. Only Non-ECC memory is supported. In the process, the board must be powered off. -
Page 11: Jumper Location And Reference
HE-B73 User’s Manual 2.3 <Jumper Location and Reference> JRTC JMSATA JVLCD 2.3.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard mSATA Setting COM1 Voltage Setting (For Pin 9) COM2 Voltage Setting (For Pin 9) -
Page 12: Clear Cmos And Power On Type Selection
HE-B73 User’s Manual 2.3.2 <Clear CMOS and Power on type selection> JRTC JAT: AT/ATX mode select jumper Jumper settings Function AT mode ATX mode (Default) JRTC: Clear CMOS data jumper Jumper settings Function Clear CMOS Normal (Default) 2.4 <I/O interface>... -
Page 13: Ethernet Interface
HE-B73 User’s Manual 2.4.2 <Ethernet interface> The board provides I219-LM and I225-LM Gigabit Ethernet which supports WOL on rear I/O. It supports Intel® AMT 15.0 feature on I219-LM. (Note that the CPU must support vPro technology.) I225-LM I219-LM 2.4.3 <Display interface>... - Page 14 HE-B73 User’s Manual CN_CRT CN_LVDS 1 13 CN_EDP2 CN_EDP1 CN_HDMI JVLCD CN_INV (Optional) (Optional) (Optional) CN_CRT: VGA 16-pin connector (Pitch 2.00 mm) Signal Signal IOGND1 IOGND1 IOGND1 IOGND1 IOGND1 5VCDA 5HSYNC 5VSYNC 5VCLK -13-...
- Page 15 HE-B73 User’s Manual CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) A_LVDS_0- B_LVDS_0- A_LVDS_0+ B_LVDS_0+ A_LVDS_1- B_LVDS_1- A_LVDS_1+ B_LVDS_1+ A_LVDS_2- B_LVDS_2- A_LVDS_2+ B_LVDS_2+ A_LVDS_CLK- B_LVDS_3- A_LVDS_CLK+ B_LVDS_3+ A_LVDS_3-...
- Page 16 HE-B73 User’s Manual CN_HDMI: DVI 15-pin connector Signal Signal TMDS Data2+ TMDS Data2− TMDS Clock+ TMDS Clock− TMDS Data1+ TMDS Data1− TMDS Data0+ TMDS Data0− CN_EDP1: eDP 13-pin connector Signal Signal EDP0+ AUX- EDP0- EDP_HPD EDP1+ 3.3V (EDP power) EDP1-...
-
Page 17: Serial Port Interface
HE-B73 User’s Manual 2.4.4 <Serial Port interface> CN_COM5/6 CN_COM3/4 CN_COM1/2 CN_COM1/2: RS232/422/485 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1/ 422TX-/ 485- RXD1/ 422TX+/ 485+ TXD1 DTR1 DSR1/ 422RX+ RTS1 CTS1/ 422RX- DCD2/ 422TX-/ 485- RXD2/ 422TX+/ 485+ TXD2... - Page 18 HE-B73 User’s Manual COM1 & COM2 RS-232/422/485 can set by BIOS. You can find the setting from Advanced-> Motherboard Advanced menu-> Super IO configuration-> Serial Port configuration->Interface If you want to use RS485, please follow below step before connection. COM1 RTX- Data- : short Pin1& Pin8 COM1 RTX+ Data+ : short Pin2&...
-
Page 19: Usb Interface
HE-B73 User’s Manual 2.4.5 <USB interface> CN_USB2 TYPE_E-1 CN_USB1 TYPE_E-2 CN_USB1/2: USB2.0 10-pin header (Pitch 2.54 mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ TYPE_E: USB3.2 Gen2 20-pin header (Cable optional) Signal Signal USB3.2_Gen2_TX1+ USB2.0_DATA+ USB3.2_Gen2_TX1- USB2.0_DATA- USB3.2_Gen2_RX1+ USB3.2_Gen2_RX2- USB3.2_Gen2_RX1-... -
Page 20: Audio Interface
HE-B73 User’s Manual 2.4.6 <Audio interface> CN_AUDIO CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT -19-... -
Page 21: Expansion Slot
HE-B73 User’s Manual 2.4.7 <Expansion slot> JMSATA JMSATA: Setting MINI_CARD to support PCIe/mSATA MINI_CARD Settings Function Support mSATA Normal operation (Default) M.2 KEY E MINI_CARD support mSATA by JMSATA, and connect SIM card M.2_NVME support PCIe Gen4 and SATA -20-... -
Page 22: Front Panel Switch And Indicator
HE-B73 User’s Manual 2.4.8 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header Signal Signal HDD_LED+ Power_LED+ HDD_LED- Reset+ Power_LED- Reset- Speaker+ Power_ON+ Power_ON- Speaker- -21-... -
Page 23: Gpio And Other Interface
HE-B73 User’s Manual 2.4.9 <GPIO and Other interface> CN_DIO SYSFAN CPUFAN CN_SMBUS JLANLED When using GPIO function, please note: As Output: Open-drain, most applications need use an external pull up resistor. (If not may cause damage) As Input: TTL-level. GPIO DC characteristics (open drain mode) - Page 24 HE-B73 User’s Manual CN_DIO: GPIO 12-pin header (Pitch 2.00mm) Signal Signal GP40 GP44 GP41 GP45 GP42 GP46 GP43 GP47 CN_SMBUS: SMBus 5-pin connector (Pitch 2.54mm) Signal SMBDAT SMBCLK CPUFAN: CPU cooler fan 4-pin connector Signal Sensor Control SYSFAN: System cooler fan 4-pin connector...
-
Page 25: Power Supply
HE-B73 User’s Manual 2.5 <Power supply> 2.5.1 <Power input> CN_12V DC_IN CN_12V: 4-pin 12V connector Signal Signal -24-... -
Page 26: Appendix A
HE-B73 User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: FPT Tool The tool’s file name is “FPT.exe”, it’s the utility that can write the data into the... -
Page 27: Appendix B
HE-B73 User’s Manual Appendix B <LCD Panel Type select> According your panel, it needs to select the correct resolution in the BIOS. If there is no fit your panel type, please feedback for us to make OEM model. Find the setting from Advanced->Motherboard Advanced menu->LVDS Configuration... -
Page 28: Appendix C
HE-B73 User’s Manual Appendix C <Programmable Watch Dog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection. - Page 29 HE-B73 User’s Manual Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device -o 4E 30 -o 4F 01 ; activate WDTO# function...
-
Page 30: Appendix D
HE-B73 User’s Manual Appendix D <Hardware Monitor> Find the setting from Advanced-> Motherboard Advanced menu-> Super IO configuration-> Hardware Monitor -29-... -
Page 31: Appendix E
HE-B73 User’s Manual Appendix E <Programmable GPIO> The GPIO can be programmed using simple IN/OUT commands. GPIO -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 07 ;select Logical Device -o 4E 30 -o 4F 10 ;activate GPIO function (The board use GPIO4) -
Page 32: Appendix F
HE-B73 User’s Manual Appendix F <RAID Setting> When use RAID function, it need to enter the BIOS set RAID mode first. Advanced Intel Advanced menu SA Configuration VMD Configuraion 1. Find VMD controller, and set to enable 2. Set “Map this Root port under VMD” to enable. -
Page 33: Appendix G
HE-B73 User’s Manual Appendix G <Cooler fan> You will see two different cool fans on CPU. OHS-P-M-L is for high power CPU (Core™ i7-11850HE, Core™ i5-11500HE, Xeon® W-11865MRE, Xeon® W-11555MRE, Xeon® W-11155MRE) OHS-P-M-L OHS-P-M-K is for low power CPU (Core™ i3-11100HE, Celeron® 6600HE, Xeon®... -
Page 34: Contact Information
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -33-...
