Commell UniChrome Pro HE-760 User Manual

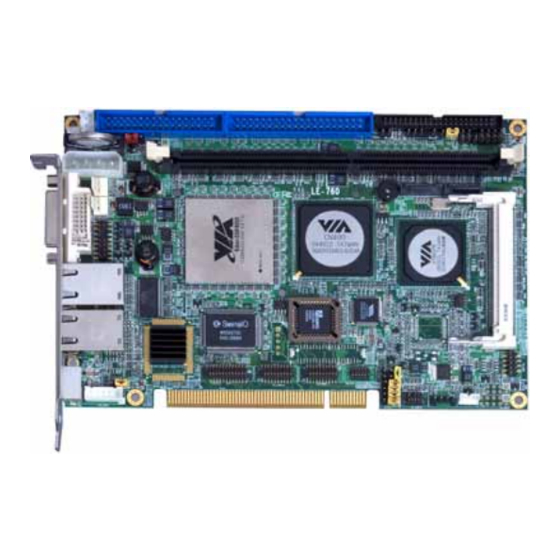

Commell UniChrome Pro HE-760 User Manual

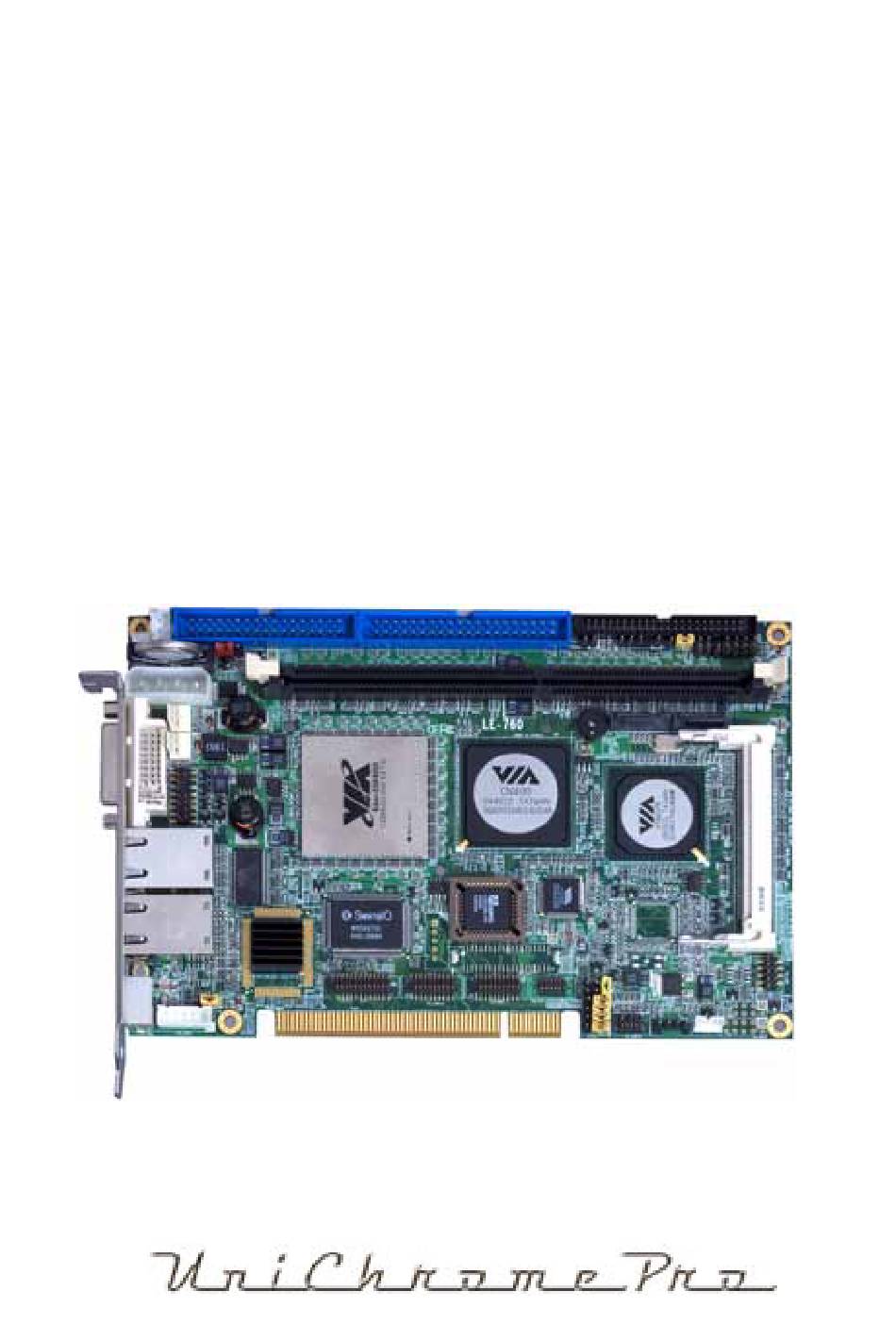

Half-size embedded miniboard

Advertisement

Quick Links

HE-760
Half-size Embedded Miniboard
User's Manual
Edition: 1.00
2005/4/20

Advertisement

loading
Need help?

Need help?

Do you have a question about the UniChrome Pro HE-760 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Commell UniChrome Pro HE-760

  • Page 1 HE-760 Half-size Embedded Miniboard User’s Manual Edition: 1.00 2005/4/20...
  • Page 2 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at h ttp://www.commell.com.tw...
  • Page 3: Packing List

    HE-760 User’s Manual Packing List: Please check the package before you starting setup the system Hardware: HE-760 motherboard x 1 Cable Kit: ATA33 IDE Cable x1 ATA133 IDE Cable x1 Floppy Cable x 1 Dual USB cable with bracket x 1 Audio cable with bracket x 1 SATA Cable x 2 PS/2 keyboard &...
  • Page 4 HE-760 User’s Manual Index Chapter 1 <Introduction> .................. 7 1.1 <Product Overview>................7 1.2 <Product Specification> ................ 8 1.3 <Mechanical Drawing>................ 11 1.4 <Block Diagram>................. 12 Chapter 2 <Hardware Setup>................13 2.1 <Connector Location>................. 13 2.2 <Jumper Location & Reference> ............14 2.3 <Connector Reference>..............
  • Page 5 HE-760 User’s Manual 3.1 <Display Configuration>..............30 Chapter 4 <BIOS Setup> ................. 32 Appendix A <I/O Port Pin Assignment>............33 A.1 <IDE Port> ..................33 A.2 <Floppy Port> ..................35 A.3 <IrDA Port> ..................35 A.4 < VGA Port >..................35 A.5 <Serial Port>..................
  • Page 6 HE-760 User’s Manual (This Page is Left For Blank)
  • Page 7 HE-760 User’s Manual Introduction Chapter 1 <Introduction> 1.1 <Product Overview> HE-760 is the 3.5 inches embedded miniboard based on VIA CN400 platform, with onboard VIA Eden ESP8000 processor, VGA, LAN, Audio, USB2.0, CF, LVDS, the board provides economic fanless solution for multimedia applications. VIA CN400 &...
  • Page 8 HE-760 User’s Manual Introduction 1.2 <Product Specification> General Specification Form Factor Half-size PCI CPU card Embedded VIA Eden ESP8000 processor Front side bus: 133MHz(FSB) Fanless with heatsink only Memory 1 x 184-pin DDR 266/333/400 SDRAM up to 1GB Unbufferred, none-ECC memory supported only Chipset VIA CN400 and VT8237R BIOS...
  • Page 9 HE-760 User’s Manual Introduction 12V backlight inverter connector Panel voltage 3.3V/5V jumper selectable Ethernet Interface Chipset RTL 8100B Intel 82541PI Type 10Base-T / 100Base-TX 100Base-T/1000Base-TX auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant Connector External RJ45 connectors with LED on rear I/O panel Audio Interface Chipset REALTEK ALC201A...
  • Page 10 VIA CN400 with Embedded Eden ESP8000 processor, VGA, AC97 Audio, LVDS, CF, PCI, Mini-PCI, 2 x RS232, 2 x LAN, 2 x SATA The specifications may be different as the actual production. For further product information please visit the website at h ttp://www.commell.com.tw Product Specification...
  • Page 11 HE-760 User’s Manual Introduction 1.3 <Mechanical Drawing> Mechanical Drawing...
  • Page 12 HE-760 User’s Manual Introduction 1.4 <Block Diagram> Embedded VIA Eden ESP8000 processor CRT/LCD Monitor LVDS 1 x 184-pin DDR266/333/400 Up to 1GB CN400 Ultra V-Link 1GB/s 2 x USB2.0 Ports VT6103 PHY VT8237R Realtek ALC201A Mini-PCI 4 x Serial ports BIOS 1 x Floppy ports 8-bit GPIO...
  • Page 13 HE-760 User’s Manual Introduction Chapter 2 <Hardware Setup> 2.1 <Connector Location> FLOPPY JBITSEL IDE1 DIMM IDE2 JRTC CN_PS JFRNT DC_IN CN_VGA Mini PCI CN_INV CN_USB CN_USB CN_ATKB LPT CN_COM1/2/3/4 CN_DIO CD_IN CN_WOL Connector Location...
  • Page 14 HE-760 User’s Manual Hardware Setup 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD LCD panel voltage setting JBITSEL LCD panel 18-bit/24-bit selection JBITSEL JRTC JVLCD Connector Location...
  • Page 15 HE-760 User’s Manual Hardware Setup 2.3 <Connector Reference> 2.3.1 <Internal Connector> Connector Function Remark DIMM 184-pin DDR SDRAM DIMM Standard IDE1 40-pin primary IDE connector Standard IDE2 44-pin slim type IDE connector Slim SATA SATA HD connector Standard 34-pin floppy connector Standard CN_5V 4-pin DC input connector...
  • Page 16 HE-760 User’s Manual Hardware Setup 2.4 <CPU & Memory Setup> 2.4.1 <CPU> The board comes with Embedded VIA Eden ESP8000 processor of 133MHz front side bus, to provide low power consumption and fanless solution. 2.4.2 <Memory> The board supports one 184-pin DDR266/333/400 SDRAM and up to 1GB of capacity, only non-ECC, unbuffered memory is supported.
  • Page 17 HE-760 User’s Manual Hardware Setup 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.
  • Page 18 HE-760 User’s Manual Hardware Setup 2.6 <Enhanced IDE & CF interface> The board supports two UltraDMA133 IDE interface, and one CompactFlash Type 1 socket with secondary IDE mode, the 40-pin and 44-pin IDE connector can support up to 2 ATAPI devices through IDE cable, and the CompactFlash socket can support IDE DMA mode (depends on the CF card specification).
  • Page 19 HE-760 User’s Manual Hardware Setup 2.7 <Floppy Port> The board provides a standard type floppy port; please use the 34-pin cable in the package to connect the floppy device. Floppy connecter Floppy Port...
  • Page 20 HE-760 User’s Manual Hardware Setup 2.8 <Ethernet Interface> The board integrates Ethernet controller with VIA VT6103 PHY, full compliance with IEEE 802.3u 100Base-T specifications and IEEE 802.3x Full Duplex Flow Control, the board supports Wake-Up-On-LAN by BIOS configurable. RJ45 For Wake Up On LAN function, please enable this option in the BIOS Ethernet Interface...
  • Page 21 HE-760 User’s Manual Hardware Setup 2.9 <Onboard Display Interface> Based on VIA CN400 with built-in S3 Graphics UniChrome Pro IGP graphics, the board provides onboard VGA display interface, and one 18/24-bit LVDS LCD interface with VIA VT1631, supports up to 1600 x 1200 of resolution. The two display interfaces can be set for dual display with extended desktop mode or clone mode.
  • Page 22 HE-760 User’s Manual Hardware Setup 2.9.2 <Digital Display Interface> The onboard digital display interface comes with a 40-pin header connector to provide 18/24-bit LVDS LCD interface, and one backlight inverter connector for powering and enable/disable control, the jumper JVLCD is to set the panel voltage, and the JBITSEL is to configure the 18-bit or 24-bit outputting.
  • Page 23 HE-760 User’s Manual Hardware Setup Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 3-pin Power select Header Description Description +12V VCC( 5V) LCDVCC VCC3 (3.3V) ENABKL Jumper: JBITSEL Type: onboard 3-pin header JBITSEL Mode 18-bit panel 24-bit panel Default setting Connector: CN_LVDS Type: onboard 40-pin connector for LVDS connector...
  • Page 24 HE-760 User’s Manual Hardware Setup To setup the LCD, you need the component below: A panel with LVDS interfaces. An inverter for panel’s backlight power. A LCD cable and an inverter cable. For the cables, please follow the pin assignment of the connector to make a cable, because every panel has its own pin assignment, so we do not provide a standard cable;...
  • Page 25 HE-760 User’s Manual Hardware Setup Panel Type Supported Table: Please enter the BIOS and setup the panel type to fit your panel Panel ID Resolution Channel Dithering 640x480 Enable 800x600 Enable 1024x768 Enable 1280x768 Enable 1280x1024 Enable 1400x1050 Enable 1600x1200 Enable 1280x800 Enable...
  • Page 26 HE-760 User’s Manual Hardware Setup 2.10 <Onboard Audio Interface> The board integrates onboard AC97 audio with REALTEK ALC201A, supports 18-bit ADC and DAC resolution, and Line-out, Line-in and MIC-in input/output interfaces. Connector: CN_AUDIO Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header Description Description Line –...
  • Page 27 HE-760 User’s Manual Hardware Setup 2.11 <GPIO Interface> The board offers 8-bit digital I/O to customize its configuration to your control needs. For example, you may configure the digital I/O to control the opening and closing of the cash drawer or to sense the warning signal from a tripped UPS. Connector: CN_DIO Type: onboard 2 x 6-pin 1.27mm x 2.54mm-pitch header Description...
  • Page 28 HE-760 User’s Manual Hardware Setup 2.12 <Power Supply & Fan> 2.12.1 <Power Input> The board requires DC 5V input with onboard DC jack or 4-pin 5V DC connector. Connector: CN_12V Type: 4-pin standard ATX2.0 +12V power connector Description Description +12V Ground +5VV Ground...
  • Page 29 HE-760 User’s Manual Hardware Setup 2.13 <Switch & Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header Function Signal Signal...
  • Page 30 HE-760 User’s Manual Hardware Setup Chapter 3 <System Setup> 3.1 <Display Configuration> The board provides onboard VGA with DVI digital visual interface, and LVDS LCD interface for digital display, when connecting two display devices, you can enable dual display function with clone mode or extended desktop mode. Before setup the video setting, please install the VGA driver well.
  • Page 31 HE-760 User’s Manual Hardware Setup Please select S3Display for advanced device setting. Connected Devices Click check box to enable/disable device Specified display setup if available When you set dual display clone mode, you’ll see the same screen display on two devices.
  • Page 32 HE-760 User’s Manual Hardware Setup Chapter 4 <BIOS Setup> The single board computer uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers.
  • Page 33 HE-760 User’s Manual Hardware Setup Appendix A <I/O Port Pin Assignment> A.1 <IDE Port> Connector: IDE1 Type: 40-pin (20 x 2) box header Description Description Reset Ground Ground Ground -IOW Ground -IOR Ground IORDY Ground DACK Ground IRQ14 GPI1 -CS1 -CS3 -HD LED1 Ground...
  • Page 34 HE-760 User’s Manual I/O Port Pin Assignment A.2 <IDE Port> Connector : IDE2 Type: 44-pin (22 x 2) box header Description Description Reset Ground Ground Ground -IOW Ground -IOR Ground IORDY Ground DACK Ground IRQ14 GPI1 -CS1 -CS3 -HD LED1 Ground Ground Ground...
  • Page 35 HE-760 User’s Manual I/O Port Pin Assignment A.2 <Floppy Port> Connector: FDD Type: 26-pin connector Description Description INDEX DRV0 DSKCHG DRV1 MTR1 MTR0 STEP Ground WRITE DATA Ground WRITE GATE TRACK 0 WRPTR Ground RDATA- Ground A.3 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Ports Description IRRX...
  • Page 36 HE-760 User’s Manual I/O Port Pin Assignment A.5 <Serial Port> Connector: CN_COM1/2 Type: 20-pin D-sub male connector on bracket Description Description MDCD1- MSIN1- MSO1- MDTR1- COMGND MDSR1 MRTS1- MCTS1- MRI1- DCDBTXC- SINBTXC- SOUTBRXC DTRBRXC- COMGND MDSR2- MRTS2- MCTS2- MRI2-t Connector: CN_COM3/4 Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header Description Description...
  • Page 37 HE-760 User’s Manual I/O Port Pin Assignment <How to choose RS-422 and RS-485> RS-232 RS-422 RS-485 JCSEL2 JCSEL2 JCSEL2 PS/2 Keyboard & Mouse Port...
  • Page 38 HE-760 User’s Manual I/O Port Pin Assignment A.6 <LAN Port> Connector: RJ45 Type: RJ45 connector with LED on bracket Description A.7 <PS/2 Keyboard & Mouse Port> Connector: PS2 Type: 6-pin Mini-DIN connector on bracket Description Ground Note: The PS/2 connector supports standard PS/2 keyboard directly or both PS/2 keyboard and mouse through the PS/2 Y-type cable.
  • Page 39 HE-760 User’s Manual Flash BIOS (This Page is Left for Blank) PS/2 Keyboard & Mouse Port...
  • Page 40 The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.award.com http://www.commell.com.tw/support/support.htm File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the BIOS flash ship and update the BIOS.
  • Page 41: Contact Information

    Taiwan Commate Computer Inc. Address 8F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is our trademark of industrial PC division Contact Information...
