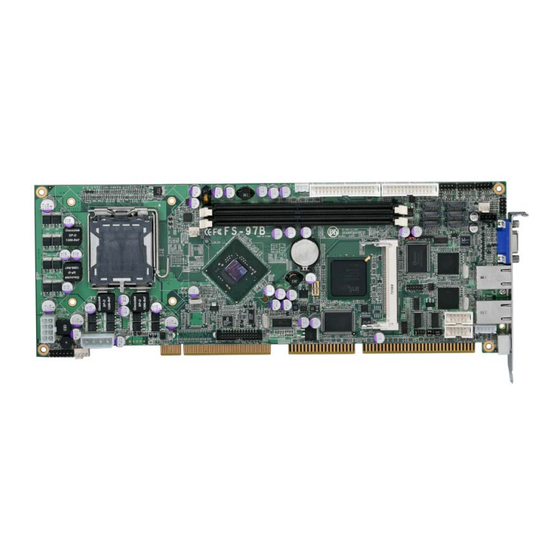

Commell FS-97B User Manual

Full-size picmg
Hide thumbs

Advertisement

Quick Links

Download this manual

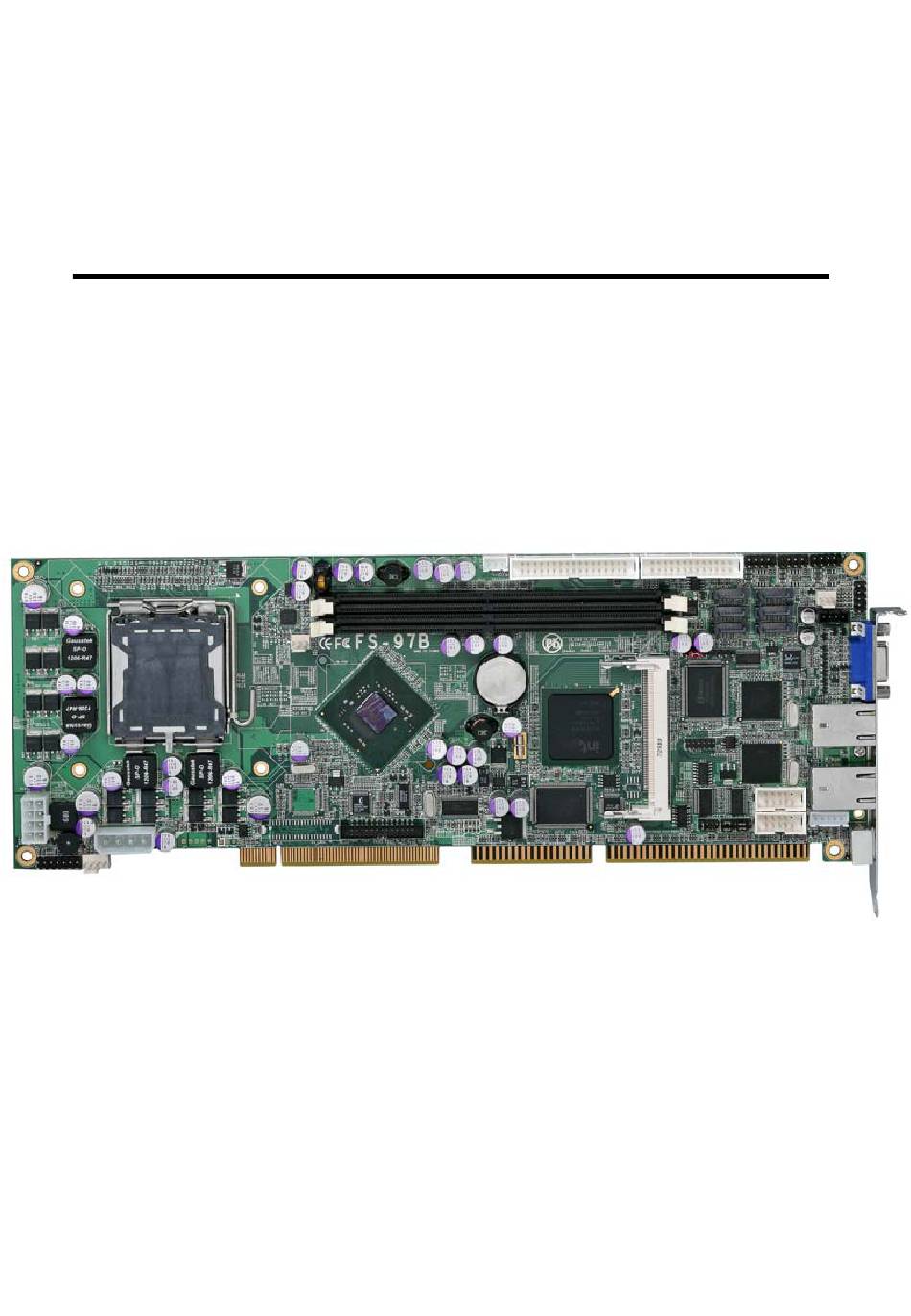

FS-97B
Full-size PICMG CPU Card
User's Manual
Edition: 1.00
2007/04/17

Advertisement

loading
Need help?

Need help?

Do you have a question about the FS-97B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commell FS-97B

Summary of Contents for Commell FS-97B

  • Page 1 FS-97B Full-size PICMG CPU Card User’s Manual Edition: 1.00 2007/04/17...
  • Page 2 FS-97B User’s Manual Copyright Copyright 2007. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

  • Page 3: Packing List

    FS-97B User’s Manual Packing List Please check package component before you use our products. Hardware: FS-97B Full-Size cpucard x 1 Cable Kit: PS/2 Keyboard & Mouse Cable x 1 Floppy flat cable x 1 SATA Cable x 6 4-pin to 3-pin ATX cable x 1 COM Port Cable x 1 DB25 &...
  • Page 4 FS-97B User’s Manual Index Chapter1 <Introduction> ............7 1.1 <Product Overview> .....................7 1.2 <Product Specification> ..................8 1.3 <Block Diagram> ....................11 1.4 <Mechanical Drawing > ..................12 Chapter 2 <Hardware Setup> ..........13 2.1 <Connector Location>..................13 2.2 <Jumper Reference>…………………………………………………………………..13 2.3 <Connector Reference>..................15 ..............15 2.3.1 <Internal Connectors>...
  • Page 5 FS-97B User’s Manual Chapter 3 <System Configuration> ........38 3.1 <SATA configuration>..................38 3.2 <SATA RAID Configuration> ................39 3.3 <Audio Configuration> ..................43 3.4 <Video Memory Setup> ..................44 3.5 <Display Properties Setting>................46 Chapter 4 <BIOS Setup> ............48 Appendix A <I/O Port Pin Assignment>...
  • Page 6 FS-97B User’s Manual (This Page is Left for Blank...
  • Page 7 Chapter1 <Introduction> 1.1 <Product Overview> FS-97B is the Full-size single board computer with last Intel desktop technology with PICMG form factor. Based on Intel® Q965 and ICH8DO, the board integrates a new Core 2 Duo /Quad processor 775-pin socket, DDR2 memory socket, Intel® Graphic Media Accelerator 3000 technology, Serial ATA II with RAID function for a powerful desktop system.
  • Page 8 FS-97B User’s Manual Introduction 1.2 <Product Specification> General Specification Form Factor Full-size PICMG CPU card Intel® Core 2 Duo /Quad/ Pentium 4 / Pentium D / Celeron D processor with LGA775 socket Package type: PLGA 775 Front side bus: 533/800/1066MT/s (133/200/266MHz x 4) Intel®...
  • Page 9 FS-97B User’s Manual Introduction Onboard 26-pin DVI Connector (FS-97BDG / DG2 Only) Product Overview...
  • Page 10 FS-97B User’s Manual Introduction Ethernet Interface Controller One or two Intel 82573L Gigabit Ethernet controller Type Triple speed 10/100/1000Base-T Auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant Connector Two External RJ45 connectors with LED on bracket Audio Interface Chipset Intel® ICH8DO with Realtek ALC260 HD Audio...
  • Page 11 FS-97B User’s Manual Introduction 1.3 <Block Diagram> Intel Core 2 Quad with 775 pin PLGA processor CH7307 2 x 240-pin DDR2 LVDS CH7308 Intel Q965 533/667/800MHz up to 3GB 6 x USB2.0 ports 6 x Serial ATAII ports Intel 82573L...
  • Page 12 FS-97B User’s Manual Hardware Setup 1.4 <Mechanical Drawing > Connector Location...
  • Page 13 FS-97B User’s Manual Hardware Setup Chapter 2 <Hardware Setup> 2.1 <Connector Location> DDRII_A/B NBFAN CN_USB1~3 CN_PS CN_LPT SYSFAN CN_AUDIO CDIN S_ATA1~6 CN_IR MINIPCI CN_DIO CN_12V DC_IN CN_ATKB CN_INV JFRNT CN_LVDS CPUFAN CN_COM1/2 CN_DVI RJ45_2 RJ45_1 COM1 RJ45_1 Jumper Reference...
  • Page 14 FS-97B User’s Manual Hardware Setup 2.2 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting (FS-97BXG & XG2 Only) JRTC JVLCD Connector Location...
  • Page 15 FS-97B User’s Manual Hardware Setup 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark LGA775 CPU socket DDRIIA/B 240 -pin DDR2 SDRAM DIMM socket 34-pin floppy connector CN_LPT 13 x 2-pin LPT connector S_ATAII1/2/3/4/5/6 7-pin Serial ATA II connector CN_12V...
  • Page 16 Hardware Setup 2.4 <CPU and Memory Setup> 2.4.1 <CPU installation> FS-97B has a LGA775 CPU socket onboard; please check following steps to install the processor properly. Attention If FS-97B need RMA please Keep CPU socket cover on the CPU Socket.
  • Page 17 FS-97B User’s Manual Hardware Setup 2.4.2 <Memory installation> FS-97B has two 240-pin DDR2 DIMM support up to 3GB of memory capacity. The memory frequency supports 533/667/800MHz . Only Non-ECC memory is supported. DDRIIA/B 128-pin 112-pin Please check the pin number to match the socket side well before installing memory module.
  • Page 18 FS-97B User’s Manual Hardware Setup 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.
  • Page 19 FS-97B User’s Manual Hardware Setup 2.6 <Serial ATA installation> FS-97B has six Serial ATA II interfaces with RAID function, the transfer rate of the Serial ATA II can be up to 300MB/s. Please go to http://www.serialata.org/ for more about Serial ATA technology information.
  • Page 20 FS-97B User’s Manual Hardware Setup 2.7 <LAN Interface> The Intel 82573L supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. Serial ATA Interface...
  • Page 21 FS-97B User’s Manual Hardware Setup 2.8 <Onboard Display Interface> Based on Intel Q965 chipset with built-in graphics, the board provides one DB15 connector on real external I/O port, and one 40-pin LVDS interface with 5-pin LCD backlight inverter connector. (FS-97BXG/ XG2 Only) The board also provides 26-pin DVI interface.
  • Page 22 FS-97B User’s Manual Hardware Setup 2.8.2 <LVDS Display FS-97BXG＆XG2 Only > The board provides one 40-pin LVDS connector for 18/24-bit dual channel panels, supports up to 1600 x 1200 (UXGA) of resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting.
  • Page 23 FS-97B User’s Manual Hardware Setup Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 3-pin Power select Header Connector model: JST B5B-XH-A Description Description +12V VCC (5V) LCDVCC VCC3 (3.3) ENABKL Connector: CN_LVDS Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40DP-1.25V...
  • Page 24 LCD Installation Guide: Preparing the FS-97B, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +5V or +3.3V.
  • Page 25 FS-97B User’s Manual Hardware Setup After setup the devices well, you need to select the LCD panel type in the BIOS. The LCD type mapping is list below: BIOS panel type selection form Single channel Dual channel Output format Output format...
  • Page 26 FS-97B User’s Manual Hardware Setup 2.8.3 <DVI Display FS-97BDG/ DG2 Only > The board provides optional DVI-D interface with Intel Q965, compliant with DVI 1.0 standard. Connector: CN_DVI Connector type: 26-pin header connector (pitch = 2.0mm) Pin Number Assignment Pin Number...
  • Page 27 FS-97B User’s Manual Hardware Setup 2.9 <Audio Installation> The board integrates onboard audio interface with REALTEK ALC260 codec, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance.
  • Page 28 FS-97B User’s Manual Hardware Setup Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R ACZ_DET Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left...
  • Page 29 FS-97B User’s Manual Hardware Setup 2.11 <GPIO interface> The board provides a programmable 8-bit digital I/O interface for control panel application. Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm Description Description Ground Ground GP10 GP14 GP11 GP15 GP12 GP16...
  • Page 30 FS-97B User’s Manual Hardware Setup 2.12 <USB2.0 Interface> Based on Intel ICH8HDO , the board provides 6 USB2.0 ports. The USB2.0 interface provides up to 480Mbps of transferring rate. The Intel® ICH8DO contains two Enhanced Host Controller Interface (EHCI) and five Universal Host Controller Interfaces (UHCI), it can determine whether your connected device is for USB1.1 or USB2.0, and change the transfer rate automatically.
  • Page 31 FS-97B User’s Manual Hardware Setup 2.13 <Power and Fan Installation> The FS-97B provides a standard ATX power supply with 4-pin ATX connector and 8-pin additional 12V connector, and the board provides one 4-pin fan connector supporting smart fan for CPU cooler and two 3-pin cooler fan connectors for system and Northbridge chip.
  • Page 32 FS-97B User’s Manual Hardware Setup Connector: CN_12V Type: 8-pin ATX power connector PIN assignment +12V +12V +12V +12V Connector: DC_IN Type: 4-pin P-type connector for +5V/+12V input Description Description Description Description +12V Ground Ground Connector: CN_PS Type: 3-pin ATX function connector...
  • Page 33 FS-97B User’s Manual Hardware Setup Power and Fan Installation...
  • Page 34 FS-97B User’s Manual Hardware Setup 2.14 <Serial Port> The board supports one RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. Connector: CN_COM1/2 Type: 10-pin (5 x 2) 2.54mm x 2.54mm-pitch header for COM2...
  • Page 35 FS-97B User’s Manual Hardware Setup JCSEL1 JCSEL2 RS-422 RS-485 RS-232 Serial Port...
  • Page 36 FS-97B User’s Manual Hardware Setup 2.15 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header...
  • Page 37 FS-97B User’s Manual (This Page is Left for Blank)

  • Page 38: Sata Mode

    FS-97B User’s Manual System Configuration Chapter 3 <System Configuration> 3.1 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE mode or RAID mode. The RAID mode need more than one HDD is applied.
  • Page 39 FS-97B User’s Manual System Configuration 3.2 <SATA RAID Configuration> The board integrates Intel® ICH8DO with RAID function for Serial ATA II drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance.
  • Page 40 FS-97B User’s Manual System Configuration Please press <CTRL+I> to enter the RAID configuration menu. You can setup the RAID under operation system for Microsoft® Windows XP SP1 or Windows 2000 SP4 version, please install the Intel® Application Accelerator Ver.4.5 later to support RAID configuration with Intel®...
  • Page 41 FS-97B User’s Manual System Configuration 2. Select Actions to Create RAID Volume Rename the Volume name Select RAID Level as 0 Left as default SATA RAID Configuration...
  • Page 42 FS-97B User’s Manual System Configuration 3. Please select two hard drives to prepare to set the RAID volume 4. Specify the Volume size Tune this bar to specify the volume size, if you specify the volume size lower than maximum,...
  • Page 43 FS-97B User’s Manual System Configuration 3.3 <Audio Configuration> The board integrates Intel® ICH8DO with REALTEK® ALC260 codec. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver.
  • Page 44 FS-97B User’s Manual System Configuration 3.4 <Video Memory Setup> Based on Intel® Q965 chipset with GMA (Graphic Media Accelerator) 3000, the board supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would allow the video memory be triggered up to 256MB.
  • Page 45 FS-97B User’s Manual System Configuration Fixed + DVMT Memory Size: You can select the fixed amount and the DVMT amount at the same time for a guaranteed video memory and additional dynamic video memory, please check the table below for available setting.
  • Page 46 FS-97B User’s Manual System Configuration 3.5 <Display Properties Setting> Based on Intel Q965 GMCH with GMA3000 (Graphic Media Accelerator), the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices.
  • Page 47 FS-97B User’s Manual System Configuration 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Colors, Resolution and Refresh Rate Click Intel® Dual Display Clone setup dual display mode as same screen...
  • Page 48 FS-97B User’s Manual BIOS Setup Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers.
  • Page 49 FS-97B User’s Manual (This Page is Left for Blank)
  • Page 50 FS-97B User’s Manual I/O Port Pin Assignment Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: S_ATA1/2/3/4/5/6 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Port...
  • Page 51 FS-97B User’s Manual I/O Port Pin Assignment A.3 <VGA Port> Connector: CRT Type: 15-pin D-sub female connector on bracket Description Description Description Ground GREEN Ground DDC_DA BLUE Ground HSYNC VSYNC Ground Ground DDC_CLK A.4 <LAN Port> Connector: RJ451/2 Type: RJ45 connector with LED on bracket...
  • Page 52 FS-97B User’s Manual System Resources Appedix B <System Resources> B1.<I/O Port Address Map> I/O Port Address Map...
  • Page 53 FS-97B User’s Manual System Resources I/O Port Address Map...
  • Page 54 FS-97B User’s Manual System Resources B2.<Memory Address Map> Memory Address Map...
  • Page 55 FS-97B User’s Manual System Resources B3.<System IRQ Resources> System IRQ Resources...
  • Page 56 FS-97B User’s Manual Appedix C <Flash BIOS> C.1 BIOS Auto Flash Tool The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: h ttp://www.award.com...
  • Page 57 FS-97B User’s Manual System Resources Appendix D <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 4E 87 ;enter configuration -o 4E 87...
  • Page 58 FS-97B User’s Manual Watch Dog Timmer Appendix E <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program.
