PICO121 AMD G-Series Embedded SoC Pico-ITX Board

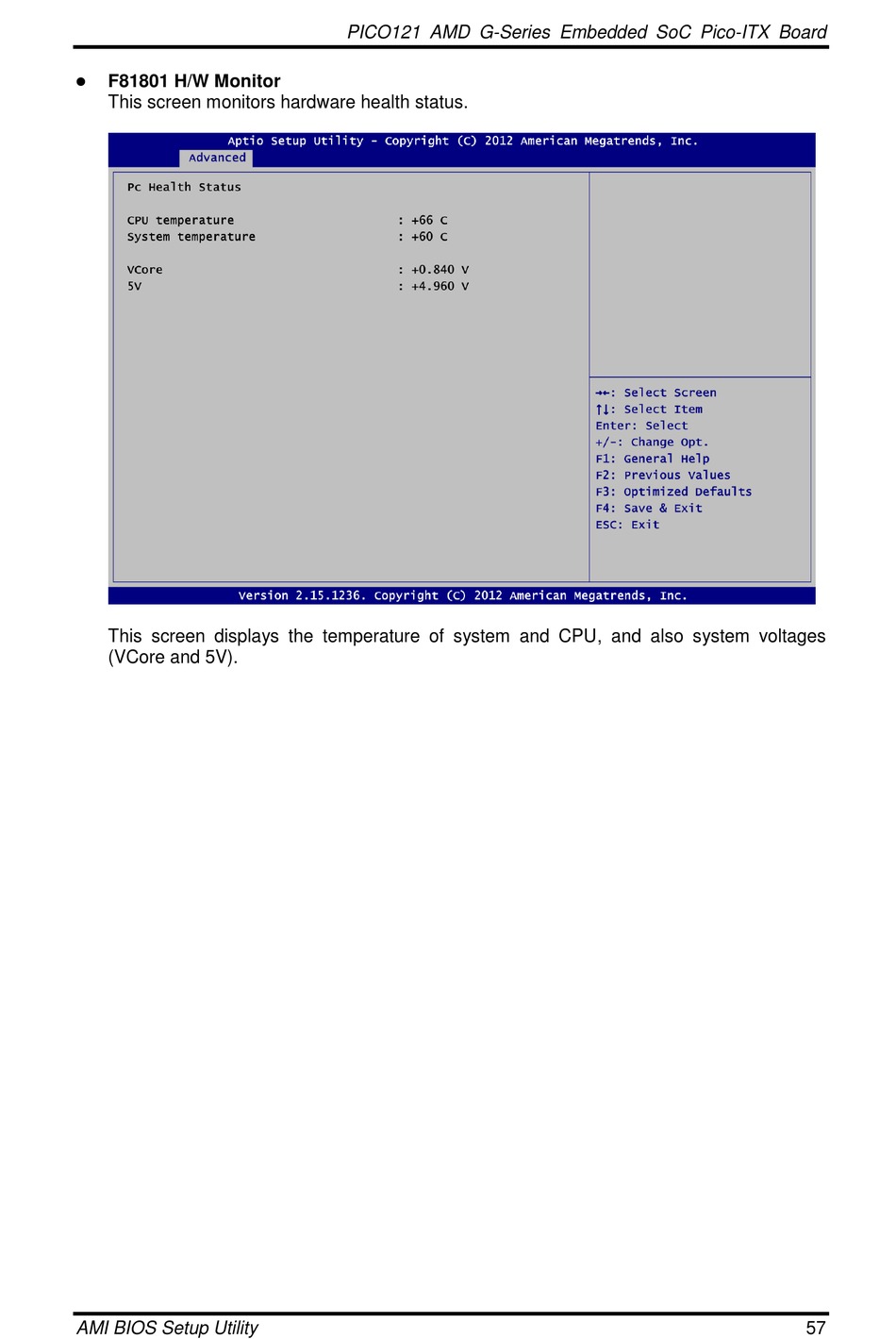

F81801 H/W Monitor
This screen monitors hardware health status.
This screen displays the temperature of system and CPU, and also system voltages
(VCore and 5V).
AMI BIOS Setup Utility
57
