PICO121 AMD G-Series Embedded SoC Pico-ITX Board
Installing Heatspreader and I/O Boards

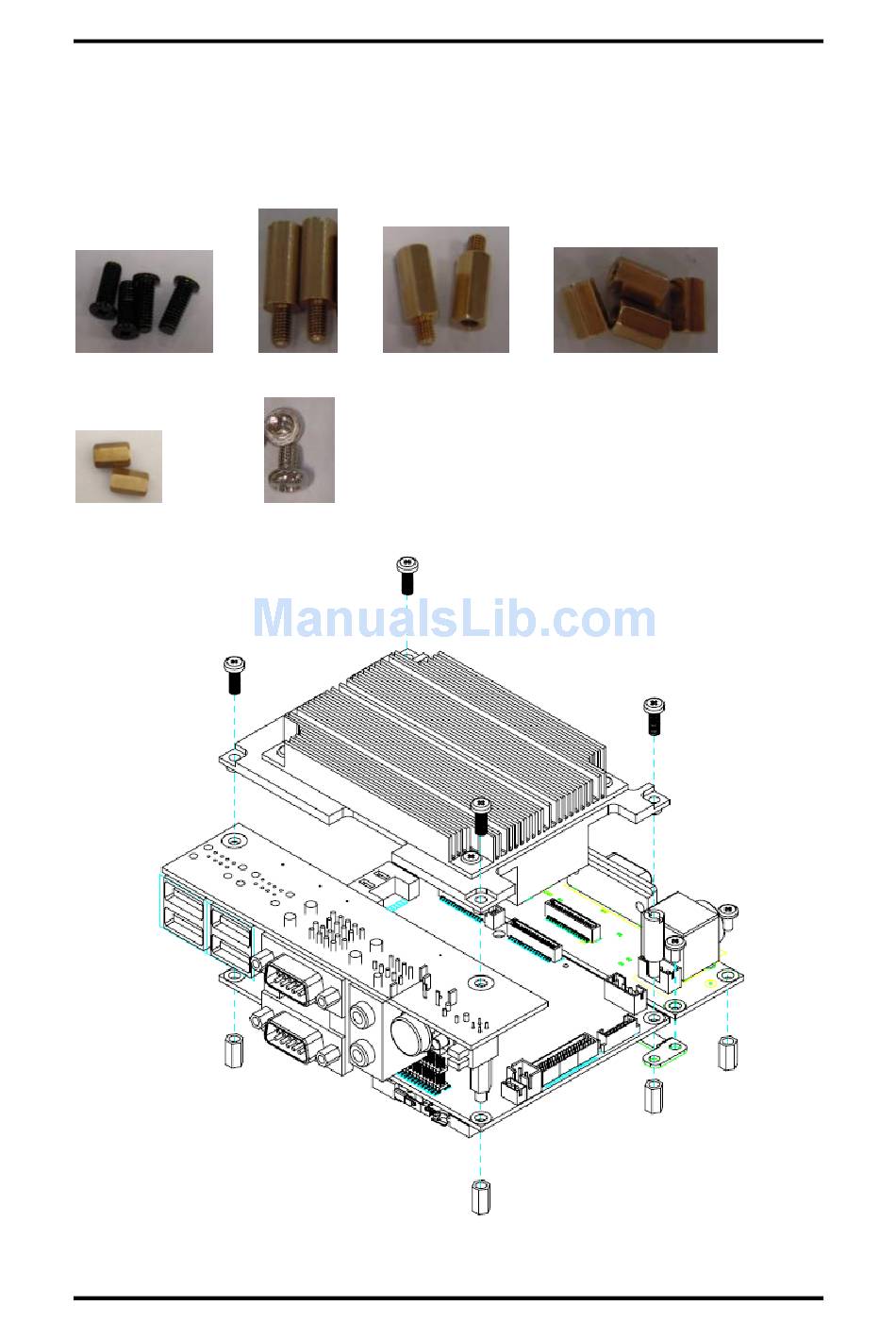

Gently connect AX93277 and AX93267 I/O boards to PICO121. Align assembly holes and
firmly secure the heatspreader plate and I/O boards to the PICO121, see image below. Be
careful not to over-tighten the screws. See chapter 3 and chapter 4 for details of AX93277 and
AX93267 I/O boards, respectively.
x4
x2
x2
x4 (8mm)
x2 (7mm)
x4
AX93277
AX93267
PICO121
Board and Pin Assignments
11
