PICO121 AMD G-Series Embedded SoC Pico-ITX Board
A.4

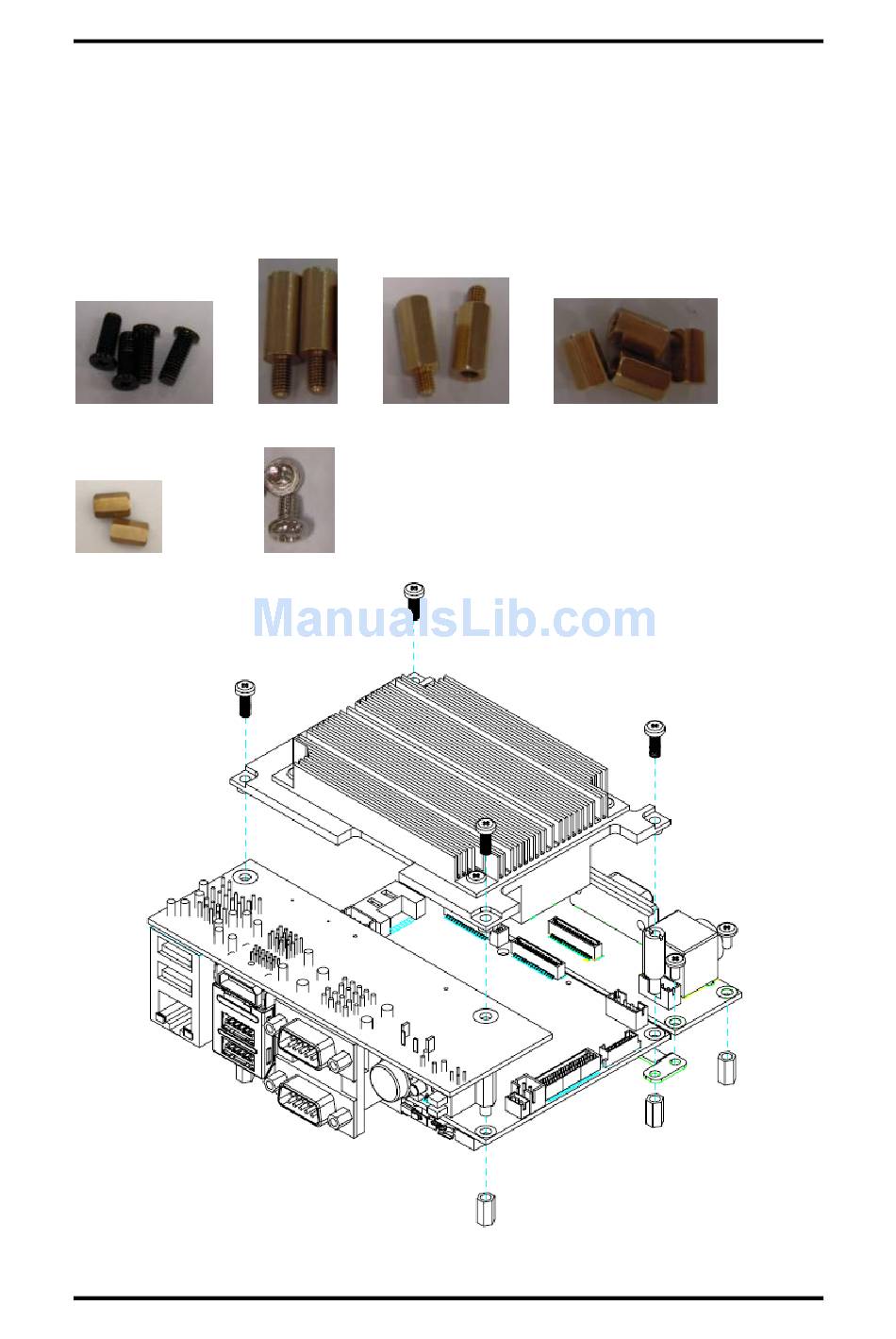

AX93278 Assembly Drawing
Installing Heatspreader and I/O Boards
Gently connect AX93278 and AX93267 I/O boards to PICO121. Align assembly holes and
firmly secure the heatspreader plate and I/O boards to the PICO121, see image below. Be
careful not to over-tighten the screws. See chapter 4 for details of AX93267 I/O board.
x4
x2
x2
x4 (8mm)
x2 (7mm)
x4
AX93278
AX93267
PICO121
94
AX93278 I/O Board (Optional)
