PICO121 AMD G-Series Embedded SoC Pico-ITX Board
4.4.5

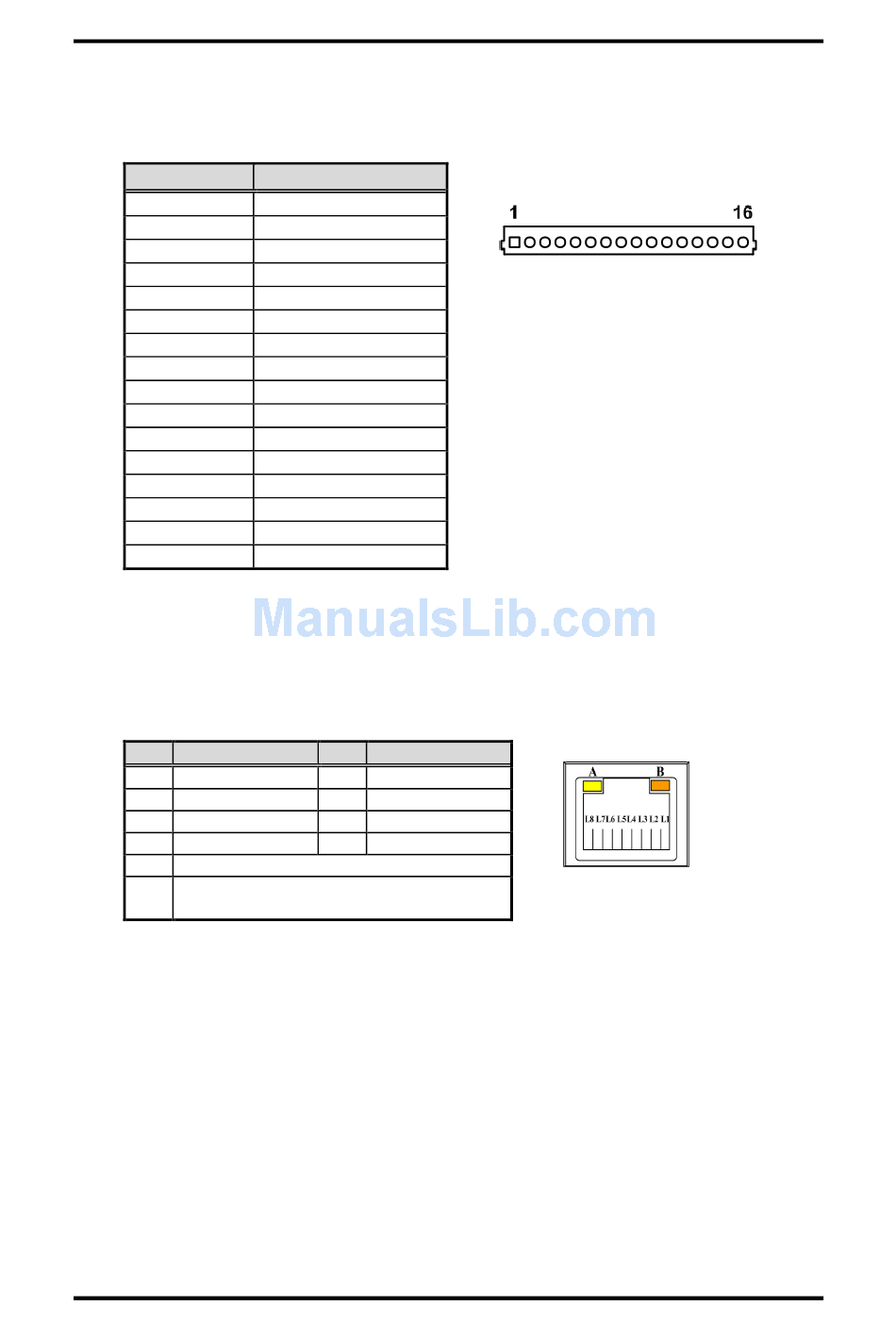

Ethernet Connector (CN5)

This is a 16-pin wafer connector for Ethernet interface. Gently connect this CN5 to
PICO121's LAN1.
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
4.4.6 RJ-45 Ethernet Port (CN6)
This board has one RJ-45 Ethernet connector. Connection can be established by
plugging one end of the Ethernet cable into this RJ-45 connector and the other end
(phone jack) to a 1000/100/10-Base-T hub.
Pin Signal
L1 MDI0P
L2 MDI0N
L3 MDI1P
L4 MDI1N
A Active LED (Yellow)
100 LAN LED (Green) / 1000 LAN LED
B
(Orange)
38
Signal
1000 LAN LED
100 LAN LED
GND
MDI3-
MDI3+
MDI1-
MDI2-
MDI2+
MDI1+
MDI0-
MDI0+
GND
LAN_VDD33
LAN_LINK_ACT
GND
GND
Pin Signal
L5 MDI2P
L6 MDI2N
L7 MDI3P
L8 MDI3N
AX93267 I/O Board
