CSLUX-300I
Multi-Format to HDMI Scaler
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSLUX-300I and is the answer not in the manual?

Questions and answers

Related Manuals for Cypress CSLUX-300I

Summary of Contents for Cypress CSLUX-300I

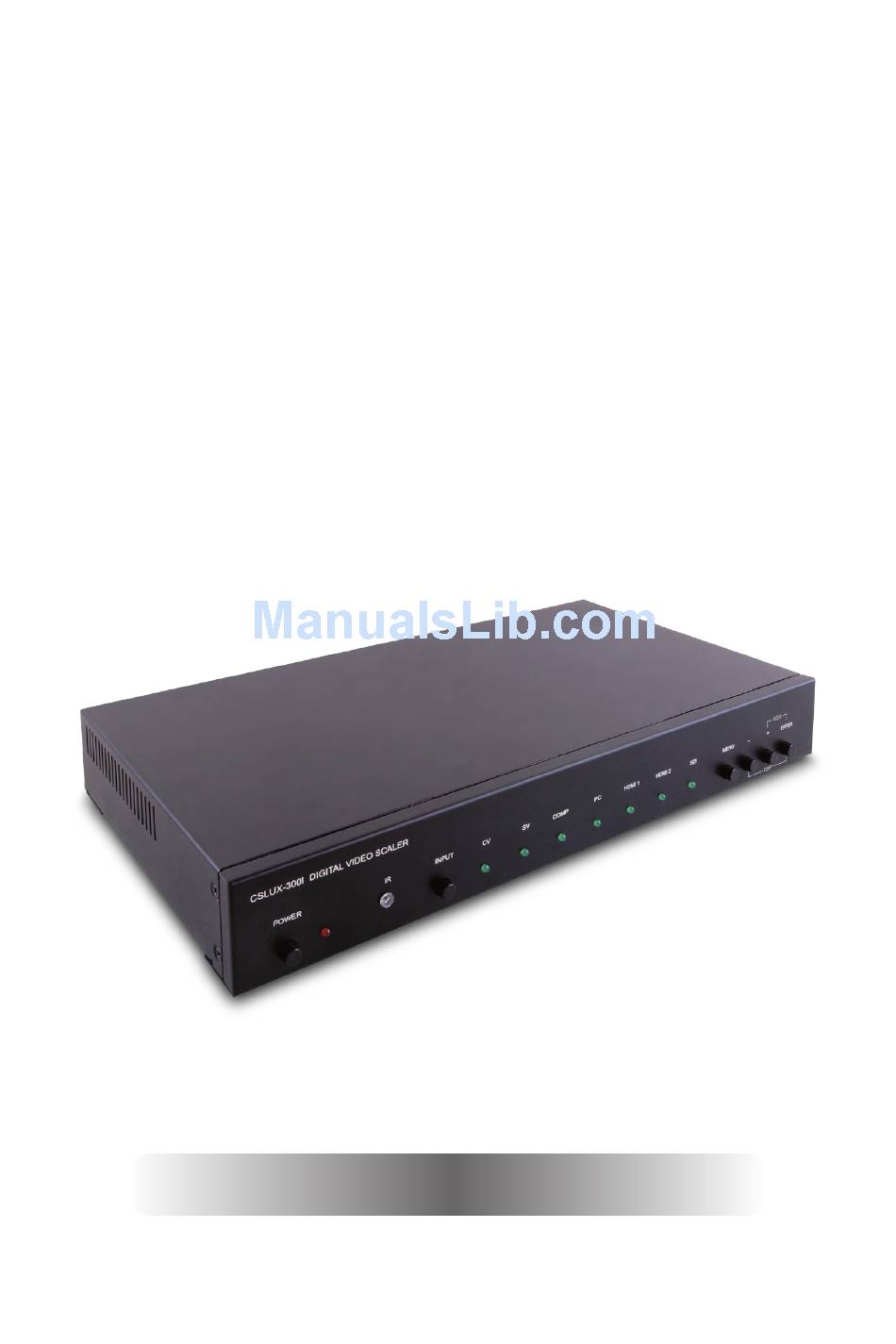

  • Page 1 CSLUX-300I Multi-Format to HDMI Scaler Operation Manual Operation Manual...

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons.

  • Page 3: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........4 6.3 Remote Control .........6 6.4 RS-232 Pin Assignment ......7 6.5 RS-232 Commands......8 6.6 OSD Menu ........11...

  • Page 4: Introduction

    1. INTRODUCTION This Multi-Format to HDMI Scaler is an advanced HDMI, PC, SDI, Composite, S-Video and Component switcher/scaler. This device can scale and switch input sources and display them to its HDMI and VGA/HD outputs simultaneously, with their associated audio signals, at a wide range of output resolutions (up to 1080p or WUXGA(RB)).

  • Page 5: Features

    5. FEATURES • Supports HDMI, Composite Video, S-Video, PC (VGA)/HD (Component) and SDI inputs • Supports HDMI and VGA/Component (with adaptor) outputs • Supports SDI loop through output • Supports analog stereo, optical and coaxial digital inputs and optical digital output, analog stereo output or embedding to HDMI output •...

  • Page 6: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CSLUX-300I DIGITAL VIDEO SCALER 720P POWER and LED Press this button to switch the device ON or to put the device into STANDBY mode. When the device is connected to an active power supply, the LED will illuminate and the device will switch ON automatically.

  • Page 7: Rear Panel

    6.2 Rear Panel RS232 OUTPUT INPUT OPTICAL OPTICAL DC 5V PC/HD LOOP OUTPUT HDMI HDMI 1 HDMI 2 Cr/Pr Cb/Pb OUTPUTS HDMI: Connect to an HDMI display or amplifi er for video and/or audio output. PC/HD: Connect to a monitor/display for video output. For HD (Component) output, use the supplied D-sub 15-pin to 3 RCA adaptor cable for HD resolutions from 480p~1080p.
  • Page 8 INPUTS SDI: Connect to an SDI camera or other SDI source for both video and audio signal conversion. HDMI 1: Connect to an HDMI source such as Blu-ray/DVD player for both video and audio signal conversion. HDMI 2: Connect to an HDMI source such as Blu-ray/DVD player for both video and audio signal conversion.

  • Page 9: Remote Control

    6.3 Remote Control POWER INPUT POWER Press this button to switch the device ON COMP or to put the device into STANDBY mode. HDMI 1 HDMI 2 INPUT Press to repeatedly select the required input. An LED will illuminate to indicate EXIT MENU the currently selected source.

  • Page 10: Rs-232 Pin Assignment

    6.4 RS-232 Pin Assignment MULTI-FORMAT TO REMOTE CONTROL HDMI SCALER Assignment Assignment ► ◄ Baud Rate: 9600bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...

  • Page 11: Rs-232 Commands

    6.5 RS-232 Commands COMMAND DESCRIPTION S SOURCE 0~6 0=SDI 4=VIDEO 1=HDMI1 5=S-VIDEO 2=HDMI2 6=PC 3=YPbPr R SOURCE Reports the numerical equivalent for SOURCE setting (as above) S OUTPUT 1~25 1=640×480 12=1600×1200 2=800×600 13=1920×1080 3=1024×768 16=1920×1200 4=1280×768 17=480p 5=1360×768 18=720p@60 6=1280×720 19=1080p@60 7=1280×800 20=1080i@60...
  • Page 12 COMMAND DESCRIPTION S HUE 0~60 Setups the numerical equivalent for HUE setting (as left) R HUE Reports the numerical equivalent for HUE setting S SATURATION 0~60 Setups the numerical equivalent for SATURATION setting (as left) R SATURATION Reports the numerical equivalent for SATURATION setting S SHARPNESS 0~30 Setups the numerical equivalent for...
  • Page 13 COMMAND COMMAND DESCRIPTION DESCRIPTION S POWER 0/1 S POWER 0/1 0=OFF 0=OFF 1=ON 1=ON R POWER R POWER Reports the numeric equivalent for POWER Reports the numeric equivalent for POWER setting (as above) setting (as above) S FREERUN COLOR 0/1 0=BLACK 1=BLUE Note:...

  • Page 14: Osd Menu

    6.6 OSD Menu 6.6 OSD Menu MAIN MENU MAIN MENU SUBMENU SUBMENU 3RD MENU 3RD MENU 4TH MENU 4TH MENU DISPLAY DISPLAY OUTPUT OUTPUT 640×480 60 640×480 60 800×600 60 800×600 60 1024×768 60 1024×768 60 1280×768 60 1280×768 60 1360×768 60 1360×768 60 1280×720 60...
  • Page 15 MAIN MENU MAIN MENU SUBMENU SUBMENU 3RD MENU 3RD MENU 4TH MENU 4TH MENU DISPLAY DISPLAY SIZE SIZE OVER SCAN OVER SCAN (For VIDEO input) (For VIDEO input) FULL* FULL* BEST FIT BEST FIT PAN SCAN PAN SCAN LETTER BOX LETTER BOX UNDER 2 UNDER 2...
  • Page 16 MAIN MENU SUBMENU 3RD MENU 4TH MENU COLOR COLOR R OFFSET G OFFSET B OFFSET CONTRAST 0~60 BRIGHTNESS 0~60 0~60 SATURATION 0~60 SHARPNESS 0~30 OFF* MIDDLE HIGH...
  • Page 17 MAIN MENU MAIN MENU SUBMENU SUBMENU 3RD MENU 3RD MENU 4TH MENU 4TH MENU AUDIO AUDIO VOLUME VOLUME 0~100 0~100 DELAY DELAY OFF* OFF* 40 ms 40 ms 110 ms 110 ms 150 ms 150 ms SOUND SOUND MUTE MUTE SDI AUDIO SDI AUDIO CH1 - CH2*...

  • Page 18: Input Resolution Support

    6.7 Input Resolution Support INPUT RESOLUTION CV/SV COMP HDMI NTSC/PAL  480i/576i   480p/576p   720p@50/60 Hz   1080i@50/60 Hz   1080p@50/60 Hz   VGA@60/72/75 Hz   SVGA@56/60/72/75 Hz   XGA@60/70/75 Hz  ...

  • Page 19: Output Resolution Support

    6.8 Output Resolution Support OUTPUT RESOLUTION PC/HD HDMI 480p/576p  720p@50/60 Hz  1080i@50/60 Hz  1080p@50/60 Hz  VGA@60 Hz   SVGA@60 Hz   XGA@60 Hz   SXGA@60 Hz   UXGA@60 Hz   1280×768@60 Hz ...

  • Page 20: Connection Diagram

    7. CONNECTION DIAGRAM HD Satellite Receiver HDMI, Optical Digital and SDI Camera Analog Audio Inputs Blu-ray/DVD Player PC or RS-232 Control System Input HDMI, Composite Video and Analog Audio Inputs RS-232 Set-top Box Power RS232 OUTPUT OPTICAL OPTICAL INPUT Supply DC 5V PC/HD LOOP OUTPUT...

  • Page 21: Specifi Cations

    8. SPECIFICATIONS Input Ports 1×SDI, 2×HDMI, 1×VGA, 1×Composite Video, 1×S-Video, 1×Component Video, 3×Analog Stereo (L/R), 1×Optical, 1×3.5mm Mini-jack, 1×RS-232, 1×USB (Service Only), 1×3.5mm Mini-jack (Service Only) Output Ports 1× SDI (Loop Through Output), 1×HDMI, 1×VGA, 1×Optical, 1×3.5mm Mini-jack Input Resolutions Up to 1080p &...

  • Page 22: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM COMP Component Video Composite Video Digital Visual Interface EDID Extended Display Identifi cation Data HDCP High-Bandwidth Digital Content Protection HDMI High-Defi nition Multimedia Interface Infrared Noise Reduction NTSC National Television System Committee On-screen Display (Menu) Phase Alternating Line Red Green Blue Serial Digital Interface...
