POC-W211 Quick Start Manual

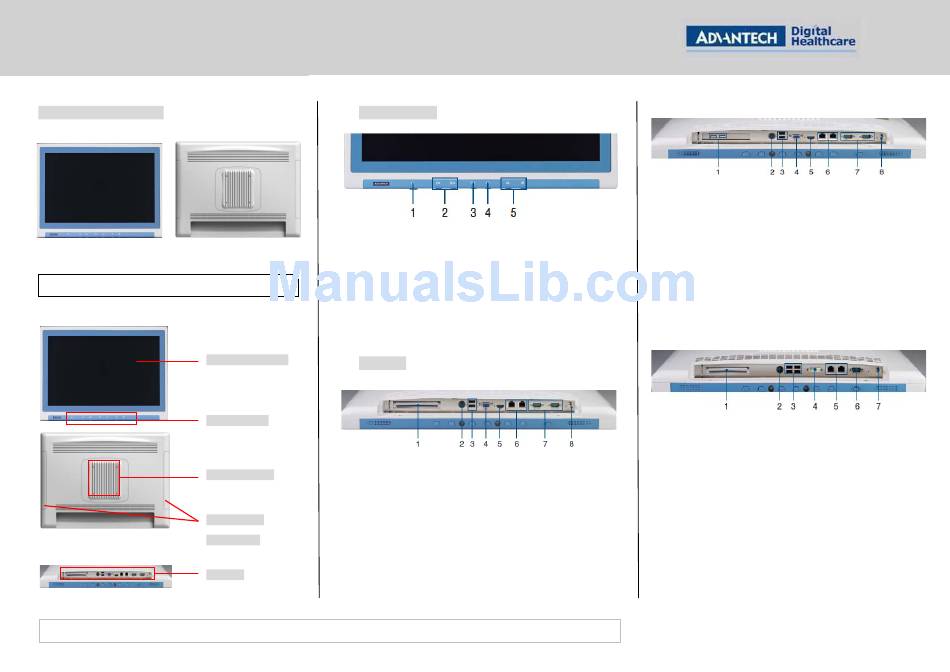

POC-W211 Appearance

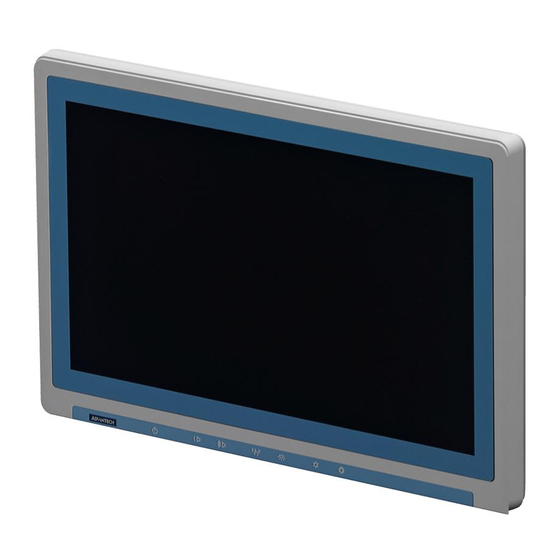

Front-view
* Please use only VESA compatible mounting.
Front Bezel Screen
Function Keys
VESA Mounting
Side
(If Available)
I/O Ports
The drawings and specifications in this document are property of Advantech and may not be reproduced, copied or used without prior written permission.
(1) Function Keys
Rear-view
(1) Power On/Off
(2) Volume Control
(3) Touchscreen Function Control
(4) Read Light Control
(5) Brightness Control
(2) I/O Ports
POC-W211-A01D-ATE & POC-W211-B01D-ATE Version
(1) PCIe Card Slot
(2) Power DC-IN
(3) 2 x USB 2.0 Ports
(4) VGA
(5) HDMI
Doors
(6) 2 x Gigabit Ethernet Interfaces (RJ-45)
(7) 1 x RS-232 and 1 x RS-232/422/485 (both isolated)
(8) Equipotential Terminal
POC-W211-A11D-ATE & POC-W211-B11D-ATE Version
(1) 2 x USB 2.0 Ports
(2) Power DC-IN
(3) 2 x USB 2.0 Ports
(4) VGA
(5) HDMI
(6) 2 x Gigabit Ethernet Interfaces (RJ-45)
(7) 1 x RS-232 and 1 x RS-232/422/485 (both isolated)
(8) Equipotential Terminal
POC-W211-C01D-ATE Version
(1) PCI Card Slot
(2) Power DC-IN
(3) 4 x USB 2.0 Ports
(4) DVI-I
(5) 2 x Gigabit Ethernet Interfaces (RJ-45)
(6) 1 x RS-232/422/485 (isolated)
(7) Equipotential Terminal
