PPC-415 15" Panel PC with TFT LCD and 11th Gen
Intel
Core
®
Startup Manual
Packing List
Before installation, ensure that the following items are
included with the product:
1. 1 x Panel PC
2. 1 x Startup manual
3. 1 x PCI riser card
4. 2 x Phoenix connector
5. 10 x Mount brackets
6. 10 x Mount screws
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
For more information about this product, visit the
Advantech website at
For technical support and customer service, visit the
Advantech support website at
This manual is for PPC-415 series, Rev. A0.
Part No. 2043041500
Printed in China
Series Processor
TM
Edition 1
February 2022
Layout

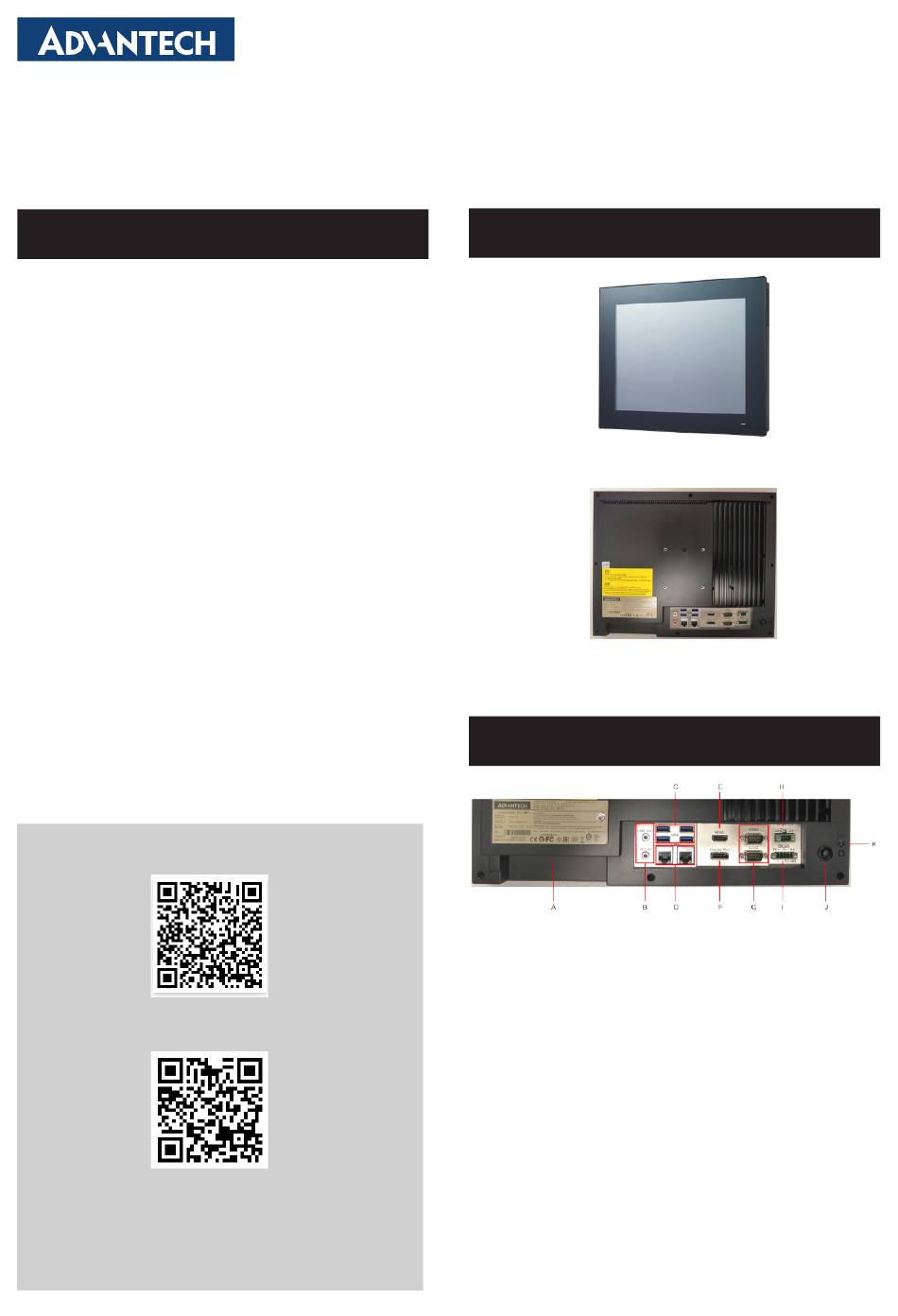

Front View
System I/O
A: 1 x PCI/PCIe expansion slot
B: 1 x Line-out/Mic-in
C: 4 x USB 3.0
D: 2 x 2.5 Gigabit Ethernet ports
E: 1 x HDMI
F: 1 x DP
G: 2 x RS-232
H: 1 x DC power connector (9 ~ 32V)
I: 1 x RS-422/485
J: 1 x Power switch
K: 1 x Grounding screw
Rear View
PPC-415 Startup Manual 1
