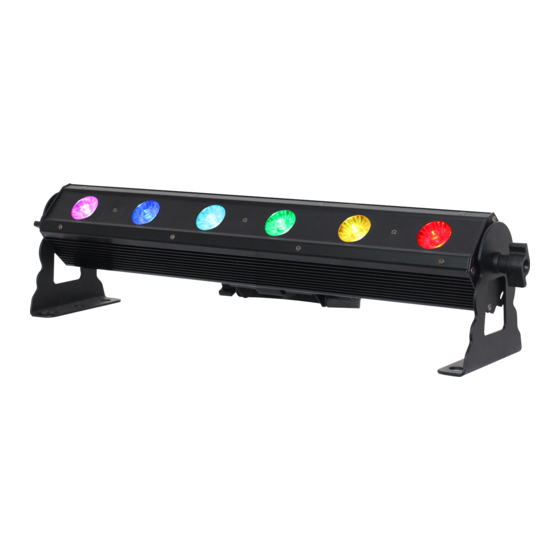

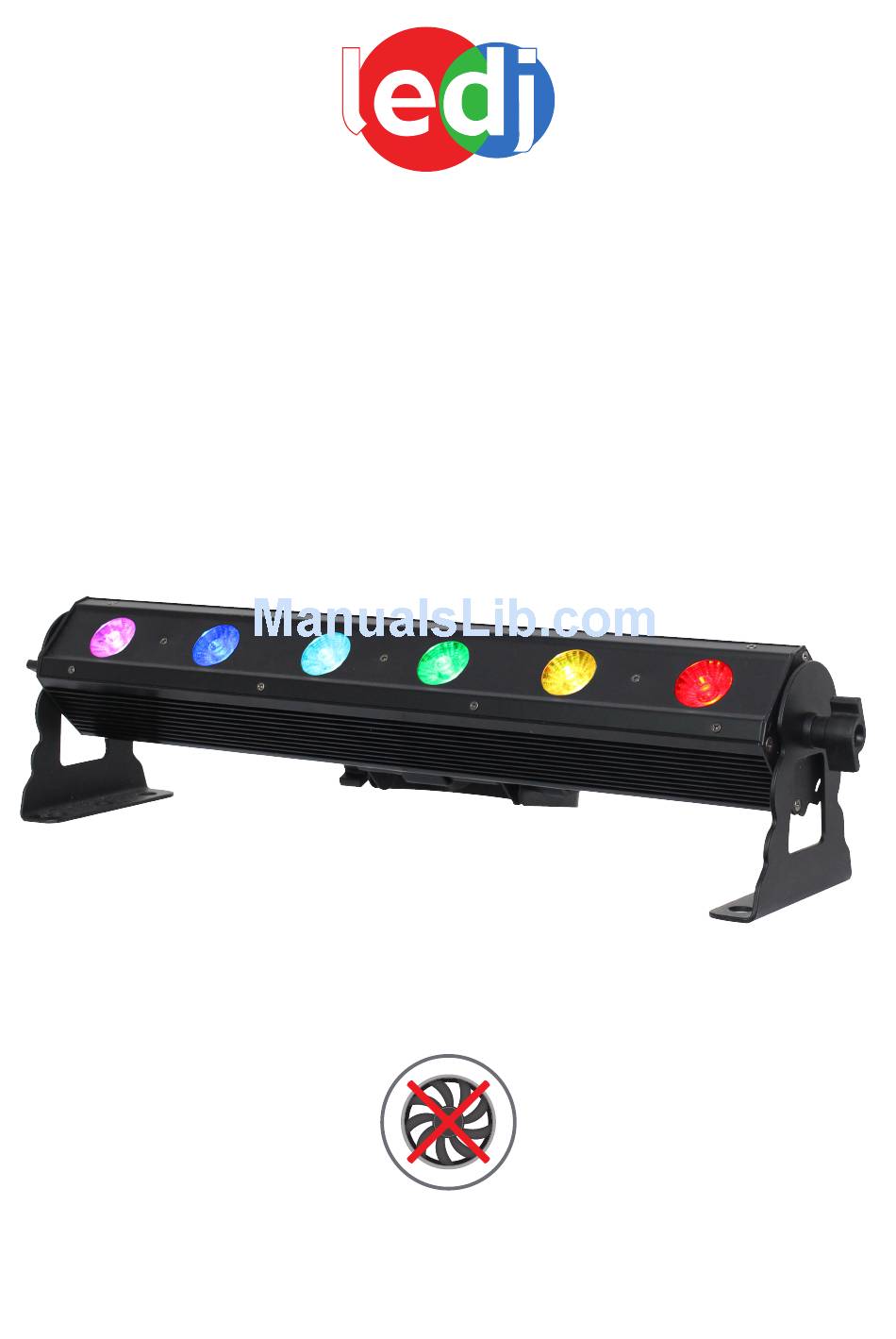

- Page 1 Pixel Storm 6 Tri Batten 6 x 3W tri-colour LEDs (RGB) User Manual Convection cooled, no fan! Order code: LEDJ290...
-
Page 2: Safety Advice
• If your product fails to function correctly, stop use • Do not expose to flammable sources, liquids or gases. immediately. Pack the unit securely (preferably in the original packing material), and return it to your Pro Light • Always disconnect the power from the mains when dealer for service. equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by • Only use fuses of same type and rating. pulling the power-cable. • Repairs, servicing and power connection must only be • Make sure that the available voltage is between carried out by a qualified technician. THIS UNIT CONTAINS 100~240V, 50/60Hz. NO USER SERVICEABLE PARTS. • Make sure that the power cable is never crimped or • WARRANTY: One year from date of purchase. damaged. Check the equipment and the power cable periodically. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Pixel Storm 6 Tri Batten User Manual... - Page 3 • 4 push button menu with LED display • IEC power in/out sockets • 3-pin XLR in/out sockets • Convection cooled • Extruded aluminium chassis (all metal construction) Specifications Pixel Storm 6 Tri Batten 25° - Lux 3238 1114 Power consumption Power supply 100~240V, 50/60Hz Fuse T1A 250V 25° Dimensions 135 x 575 x 125mm Weight 3.6kg Order code LEDJ290 575mm 125mm www.prolight.co.uk Pixel Storm 6 Tri Batten User Manual...
-
Page 4: Technical Specifications
DOWN DMX IN DMX OUT MODE FUSE: T1A 250V 01 - Hanging Bracket 05 - LED display 09 - IEC power in socket In the box: 1 x fixture, 02 - Bracket tightening knobs 06 - Function buttons 10 - IEC power out socket 1 x power cable & 03 - Floor Brackets 07 - DMX input socket 11 - Fuse T1A 250V 1 x user manual 04 - Earth point 08 - DMX output socket www.prolight.co.uk Pixel Storm 6 Tri Batten User Manual... -
Page 5: Operating Instructions
063-083 Macro 4 084-104 Macro 5 105-125 Macro 6 126-146 Macro 7 147-167 Macro 8 168-188 Macro 9 189-209 Macro 10 210-230 Macro 11 231-255 Sound 000-255 Speed (slow-fast) when channel 1 is 001-230 000-255 Sensitivity (low-high) when channel 1 is 231-255 000-255 Flash speed (slow-fast) when channel 1 is 001-230 000-084 Sound 1 when channel 1 is 231-255 085-169 Sound 2 when channel 1 is 231-255 170-255 Sound 3 when channel 1 is 231-255 www.prolight.co.uk Pixel Storm 6 Tri Batten User Manual... -
Page 6: Master/Slave Mode
. Now use the “UP” and “DOWN” r. 0 00 r. 2 55 buttons to select the brightness between . Press the “ENTER” button and repeat for green and blue. Value: 000 - 255 (000 = low, 255 = high) To exit out of any of the above options, press the “MODE” button. Master/slave mode: To set the master unit, press the “MODE” button on the rear of the master unit then select your desired program (sound active, auto, static colour or one of the built-in programs). SLAU To set the other units in slave mode, press the “MODE” button on the rear of the unit to show on the LED display and press the “ENTER” button to confirm the setting. The units will now run in sequence with the master unit. To exit out of any of the above options, press the “MODE” button. Please ensure that all slave units are set to the same DMX channel mode as the master unit. www.prolight.co.uk Pixel Storm 6 Tri Batten User Manual... - Page 7 0 00~b. 2 55 B Auto mode n. 0 01~n. 1 00 SP. 0 0~SP. 9 9 Slave mode SLAV Sound active mode SU. 0 0~SU. 3 1 DMX mode 3CH, 5CH, 18CH Address setting A. 0 01~A. 5 12 www.prolight.co.uk Pixel Storm 6 Tri Batten User Manual...
-
Page 8: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Pixel Storm 6 Tri Batten User Manual... -
Page 9: Line Termination
3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Pixel Storm 6 Tri Batten User Manual... -
Page 10: Weee Notice
Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Pixel Storm 6 Tri Batten User Manual... - Page 11 Pixel Storm 6 Tri Batten User Manual...
- Page 12 Pixel Storm 6 Tri Batten User Manual...
