Summary of Contents for Ledj STAGE WASH U.V. 18
- Page 1 STAGE WASH U.V. 18 (order code: LEDJ105) USER MANUAL...
-
Page 2: Safety Instructions
STAGE WASH U.V. SAFETY WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual... -
Page 3: Operating Determinations
STAGE WASH U.V. SAFETY IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 STAGE WASH U.V. INTRODUCTION Introduction CONTROL FEATURES • 2-channel DMX-Strobe • Blackout/Dimmer/Strobe Features • 18 ultra bright 1W Ultra Violet LEDs • Sound control via internal microphone • Master/Slave functions • Sound activated • 3-pin XLR in/out sockets • IEC power in/out sockets •...

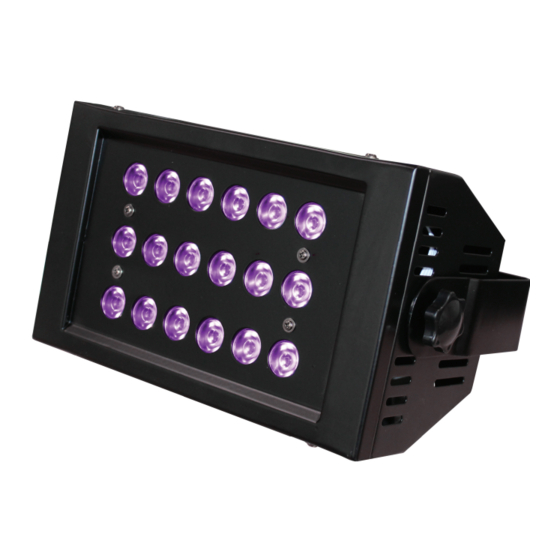

- Page 5 STAGE WASH U.V. OVERVIEW Product Overview Setup Operating Instructions The Stage Wash U.V. is a DMX-512 controllable, unit made up of high efficiency and super bright Ultra Violet LEDs. The Stage Wash U.V. will operate in stand-alone, Master/Slave, sound activated or via DMX-512 control.
-
Page 6: Sound Activation
STAGE WASH U.V. MASTER/SLAVE Master/Slave The Master/Slave mode will allow you to link up as many units as you want in a daisy chain fashion. In this mode, the first unit in the daisy chain will control the following units. 1) Connect all units in a daisy chain as described in the section following. -
Page 7: Control Options
STAGE WASH U.V. CONTROL OPTIONS Manual Control Options Dimmer • With Dip Switch 1 only set to ON you obtain 25% output • With Dip Switch 2 only set to ON you obtain 50% output • With Dip Switches 1, 2 and 3 only set to ON you obtain 75% output •... - Page 8 STAGE WASH U.V. CONTROL OPTIONS Set the start address using the group of dip switches located usually on the back of the fixture. Each dip switch has an associated value. Adding the value of each switch in the ON position will provide the start address.
- Page 9 STAGE WASH U.V. DMX SET UP DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
- Page 10 STAGE WASH U.V. DMX SET UP Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 11 STAGE WASH U.V. Dip Switch Reference Chart DMX Dip Switch Quick Reference Chart Dip Switch Position...
- Page 12 STAGE WASH U.V. DMX VALUES Technical Specifications Weight & Dimensions • Length…............260mm • Width..............145mm • Height……………………………………………..132mm • Weight………………………………………..2.6kgs Power • AC input……………………………………..240V/50hz Fuse • Main……………………………………………….20mm Glass 0.5A Fast Blow Control & Programming • Data input………………………………………...Locking 3-pin XLR male socket • Data output……………………………………….Locking 3-pin XLR female socket •...
