Load Vinyl Tape

**IMPORTANT**
1. With the Ribbon Mechanism still in upright position, center the Label Stock
on the Label Supply Roll Spindle using the Fixing Tabs. (See Figure 4)

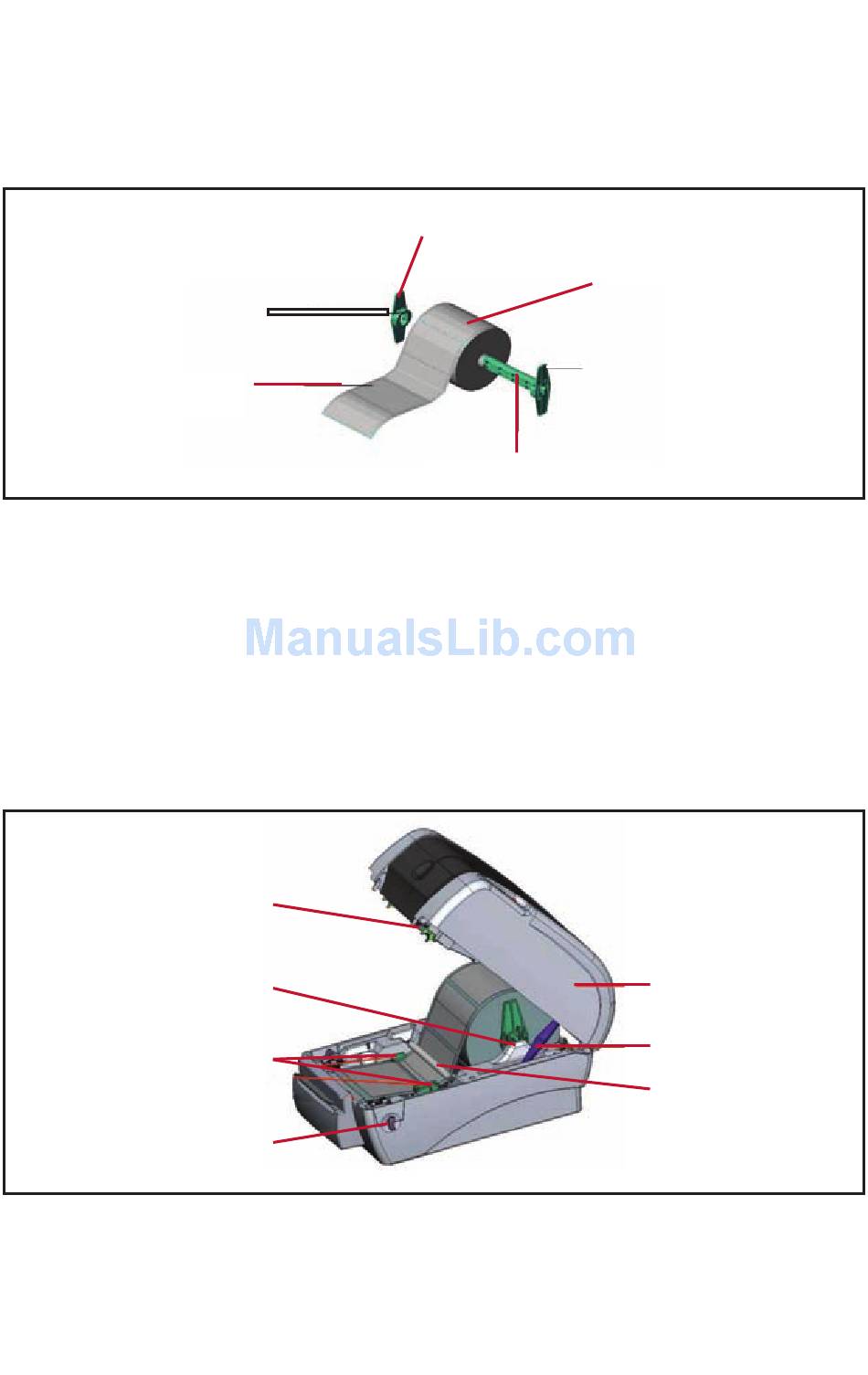

Figure 4
Printing Side
Face Up
2. Place the Label Supply Spindle with the Label Stock in the Label Roll Mount
slots. (See Figure 5)
3. Guide the Label Stock underneath the white Teflon Bar.
4. Secure the Label Stock in place by moving the Adjustable Label Guides to
hold the Label Stock in the center.
5. Thread the Label Stock through the Printed Label Opening, leaving about
1/2" Label Stock hanging out the opening.
Figure 5
Print Head
(metal bar underneath)
Label Roll Mount
Adjustable Label
Printer Cover
Release Lever
6. Close Printer Cover by lifting it all the way up, then gently press down until it
latches closed.
7. Close the Ribbon Mechanism Cover by pressing down until it latches.
-  -
Always turn OFF the power first!
Guides
Fixing Tab
Label Supply Spindle
Vinyl Tape
Printer Cover
Top Cover Support
White Teflon Bar
