BC-3000
Retail Scale
Operating Manual
44299
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rice Lake Weighing Systems BC-3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ISHIDA Rice Lake Weighing Systems BC-3000

Summary of Contents for ISHIDA Rice Lake Weighing Systems BC-3000

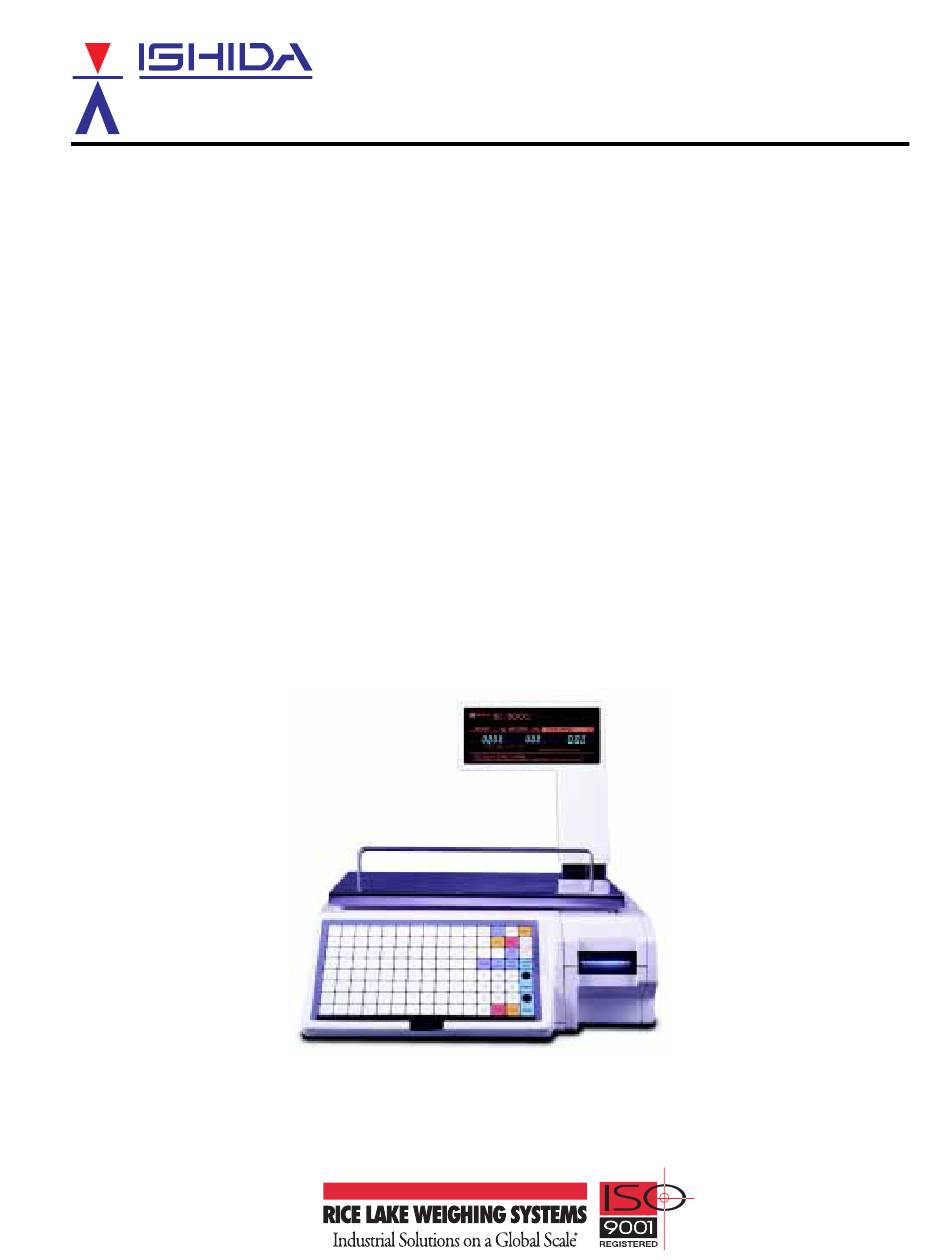

  • Page 1 BC-3000 Retail Scale Operating Manual 44299...
