Extron electronics DVCM 50 User Manual page 60

Software-based Confi guration and Control, cont'd

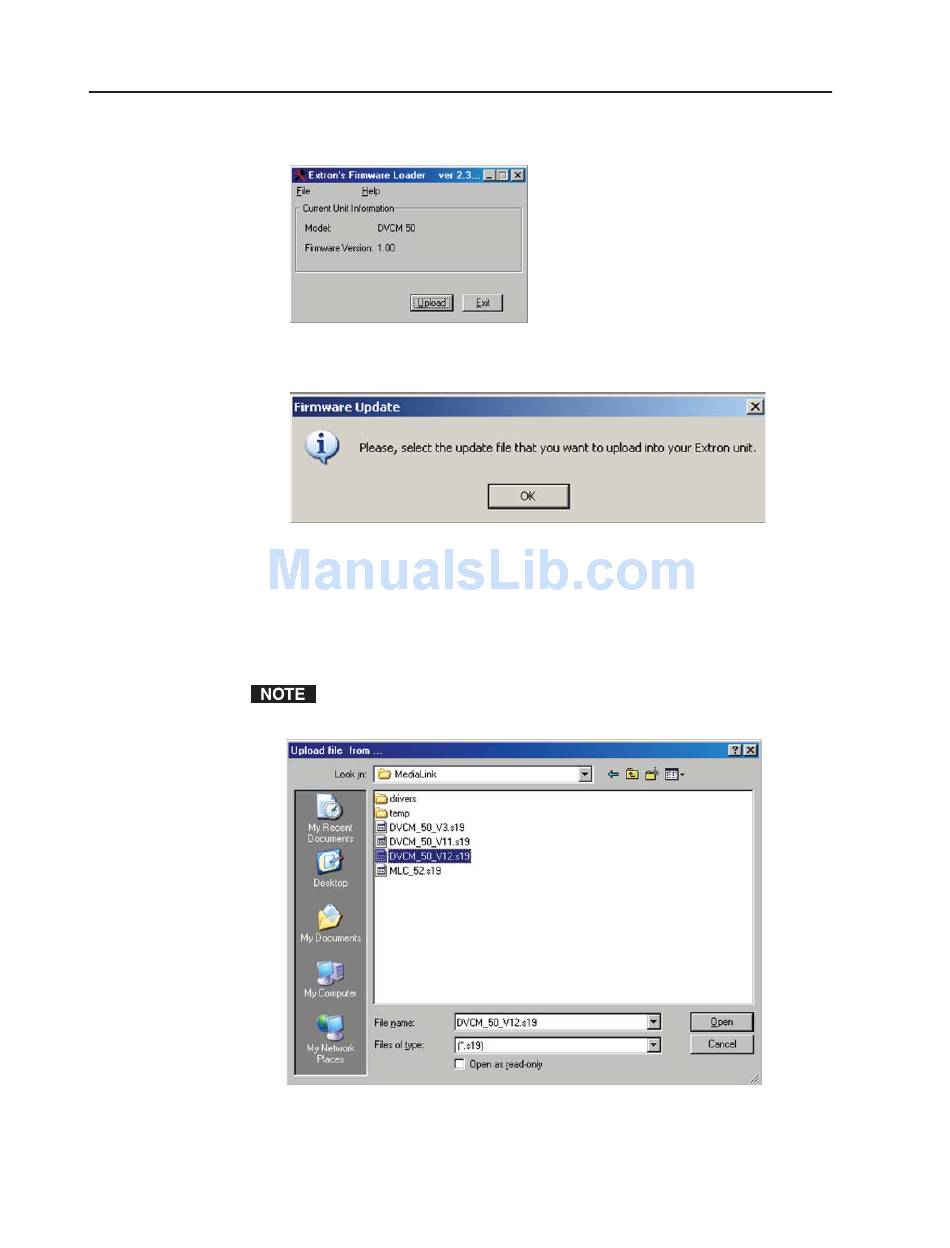

Extron's Firmware Loader window
3.
Firmware Update fi le selection prompt
4.
Upload fi le from... window
5.
DVCM 50 • Software-based Confi guration and Control
5-20
The following window opens:
Click Upload. The following prompt opens. Click OK.
On the Upload File from... window, locate and select the new fi rmware fi le.
Firmware fi les are extracted to the following location:
c:\Program Files\Extron\Firmware\DVCM 50\####vxxx.s19
where # is an alphanumeric character and vxxx is the fi rmware version
number.
Firmware update fi les have a .s19 extension; make sure that the "Files of type"
fi eld is set to *.s19.
Click Open. The fi rmware update fi le is uploaded to your MLC. During the
process, the Firmware Loader window indicates the progress of the upload.
