Special Application, cont'd
When the MLC 104 is connected to the DVCM 50, you can select between the VCR
and the DVD player by two methods:
•
•

Setting up buttons for DVD and VCR selection

On the MLC 104, you must specify one pair of input buttons that will be used to
select the VCR or the DVD player. You can select either buttons 1 and 2, or buttons
3 and 4 (you cannot use both pairs to select the DVD/VCR). Buttons 1 and 3 select
DVD mode, and buttons 2 and 4 select VCR mode. Pressing these buttons activates
the DVCM 50's DVD or VCR buttons, which select the input device.
To select the DVD/VCR pair of input buttons, set confi guration DIP switch #4 on
the DVCM 50 rear panel as follows:
•
•

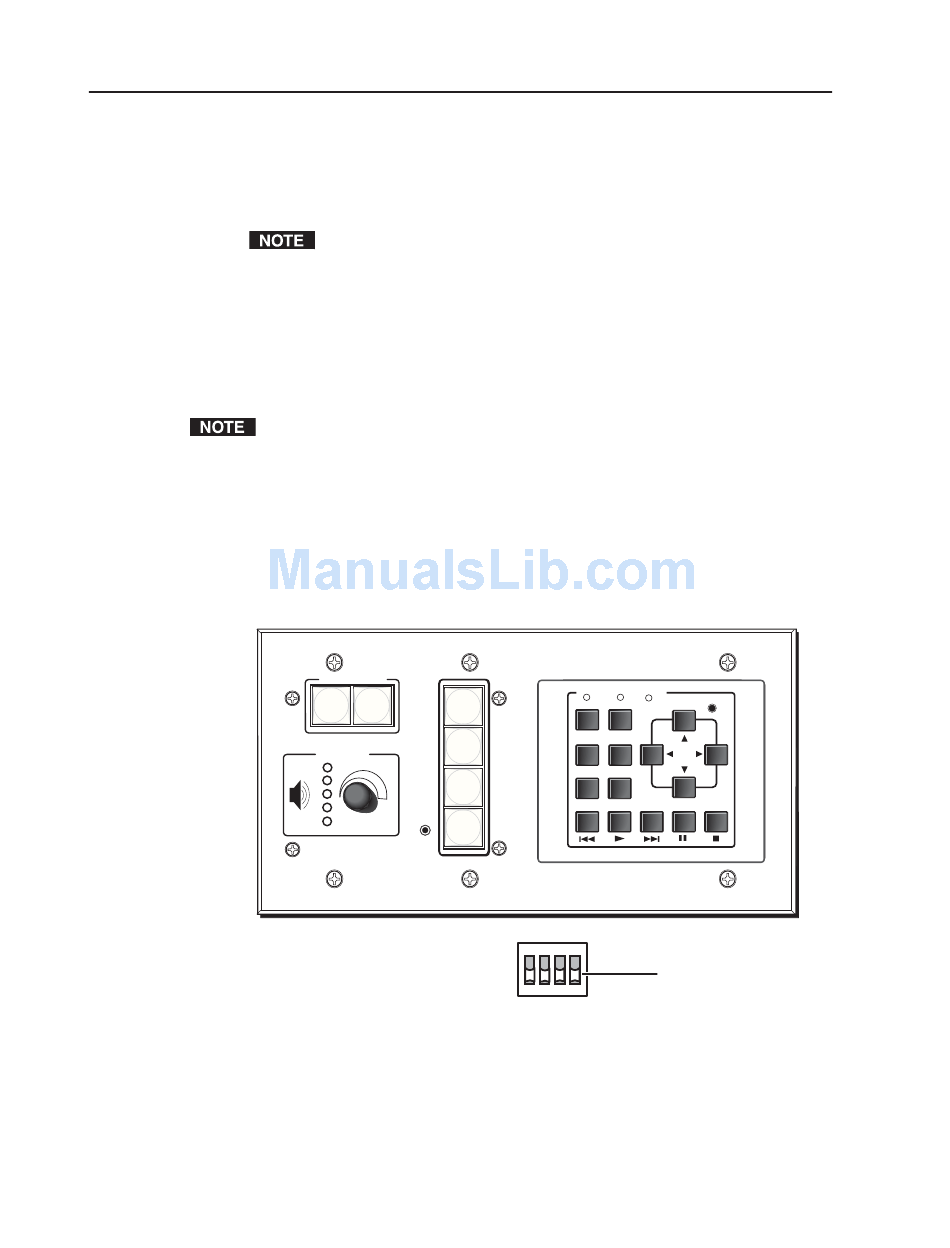

DVD and VCR mapped to input buttons 1 and 2 on the MLC 104
DVCM 50 • Special Application DVCM 50 • Special Applications
4-4 4-4
Pressing an input button on the MLC 104
Pressing the DVD or VCR button on the DVCM 50.
You do not need to press both an MLC 104 button and a DVCM button to
select the VCR or DVD player.
The DVD and VCR buttons on the DVCM 50 do not need to be specifi ed or programmed
to select the DVD or VCR. These buttons are preset to switch the system to DVD and
VCR mode when pressed, and their settings cannot be changed.
Place switch #4 in the Off (down) position to use button 1 to select the DVD
and button 2 to select the VCR.
Place switch #4 in the On (up) position to use button 3 to select the DVD and
button 4 to select the VCR.
PROJECTOR
ON
OFF
VCR
VOLUME
CONFIG
Extron
DVD & VCR CONTROL
DVD VCR
DVD
1
TITLE MENU
2
ENTER TV/VCR
3
PREV/REW PLAY NEXT/FWD PAUSE
4
ON
1 2 3 4
CONFIG
Tx
TUNER
STOP
DVCM 50
MLC 104 IP AAP
DVCM 50 switch #4 is set
to Off (down) position,
selecting buttons 1 and 2.
