Extron electronics AC 100 Installation Manual

AC 100, AC + USB 200, and AC + USB 300
Power Module Series for the
Cable Cubby Series/2 • Installation Guide

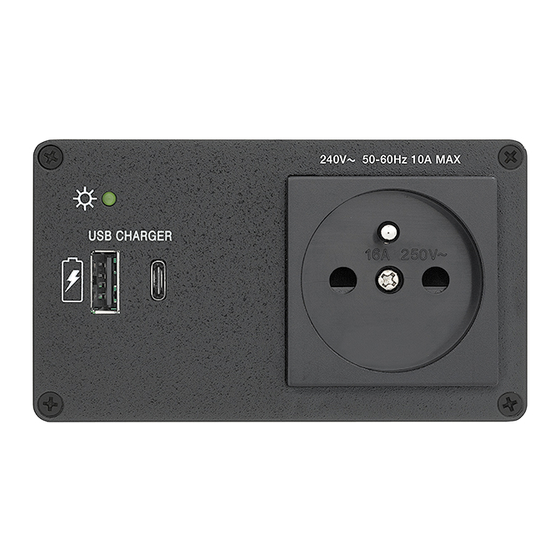

The AC 100, AC + USB 200, and AC + USB 300 Power Modules feature powered sockets for powering and charging compatible
mobile devices. Some models may have an external power supply. Where applicable, follow the steps to install and secure the
power module to, but not limited to, a Cable Cubby enclosure (see the ATTENTION below before installing the power module).

NOTE:

To view the power specifications pertaining to these products, see www.extron.com.

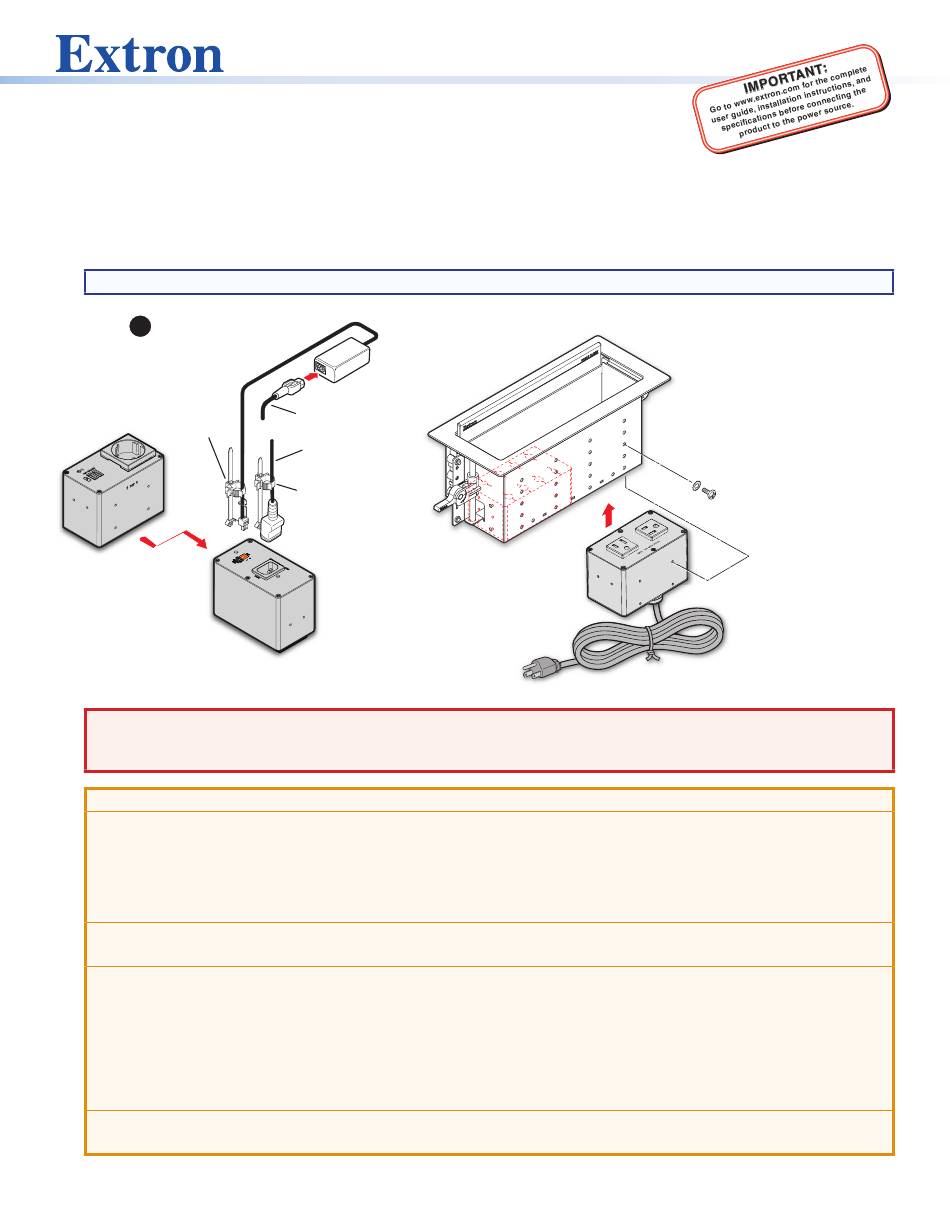

1
In models with external power
supplies, secure the AC
and external power supply
cords with the included
cable retainers (2).
Cable Retainer
Top View
AC+USB 200 EU

WARNING:

To ensure proper electrical grounding, use the provided #6-32 grounding screws and star washers.
AVERTISSEMENT : Afin d'assurer une mise à la terre correcte, utilisez les fixations de mise à la terre #6-32 et les rondelles en
étoile fournies.

ATTENTION:

• In models with external power supplies, always use a power supply provided by or specified by Extron. Use of an
unauthorized power supply voids all regulatory compliance certification and may cause damage to the supply and the
end product.
• Utilisez toujours une source d'alimentation fournie ou recommandée par Extron. L'utilisation d'une source d'alimentation
non autorisée annule toute conformité réglementaire et peut endommager la source d'alimentation ainsi que le produit
final.
• Always consult with a professional installer.
• Toujours consulter un installateur professionnel.
• Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities. The
external power supply that is included in selected models is to be located within the same vicinity as the Extron AV
processing equipment in an ordinary location, Pollution Degree 2, secured to the equipment rack within the dedicated
closet, podium, or desk.
2 2
• Sauf mention contraire, les adaptateurs CA/CC ne conviennent pas à une utilisation dans les espaces d'aération ou dans
les cavités murales. La source d'alimentation doit être placée à proximité de l'équipement Extron dans un emplacement
Slide the modules under
the Cable Cubby.
ordinaire soumis à un degré de pollution de catégorie II, solidement fixé au rack d'équipement d'une baie technique,
d'un pupitre, ou d'un bureau.
• Follow all national and local building and electrical codes that apply to the installation site.
• Respectez tous les codes électriques et du bâtiment, nationaux et locaux, qui s'appliquent au site de l'installation.
External Power
Supply
AC Power Cord for
Power Supply
AC Power Cord for
Power Module
Cable Retainer
2
Bottom View
AC+USB 200 EU
3
Secure the modules using
the provided mounting
screw, & star washer (4).
AC 100 EU

IMPORTANT:

Refer to www.extron.com for the complete
user guide, installation instructions, and
specifications before connecting the
product to the power source.
Insert the modules
into the Cable Cubby.
3
Secure the modules
using four of the provided
pan-head mounting screws
and star washers.
AC 100 US
1
