Accessing The Configuration Web Pages - Dedicated Micros SD Unit Quick Start Manual

How to navigate the web pages

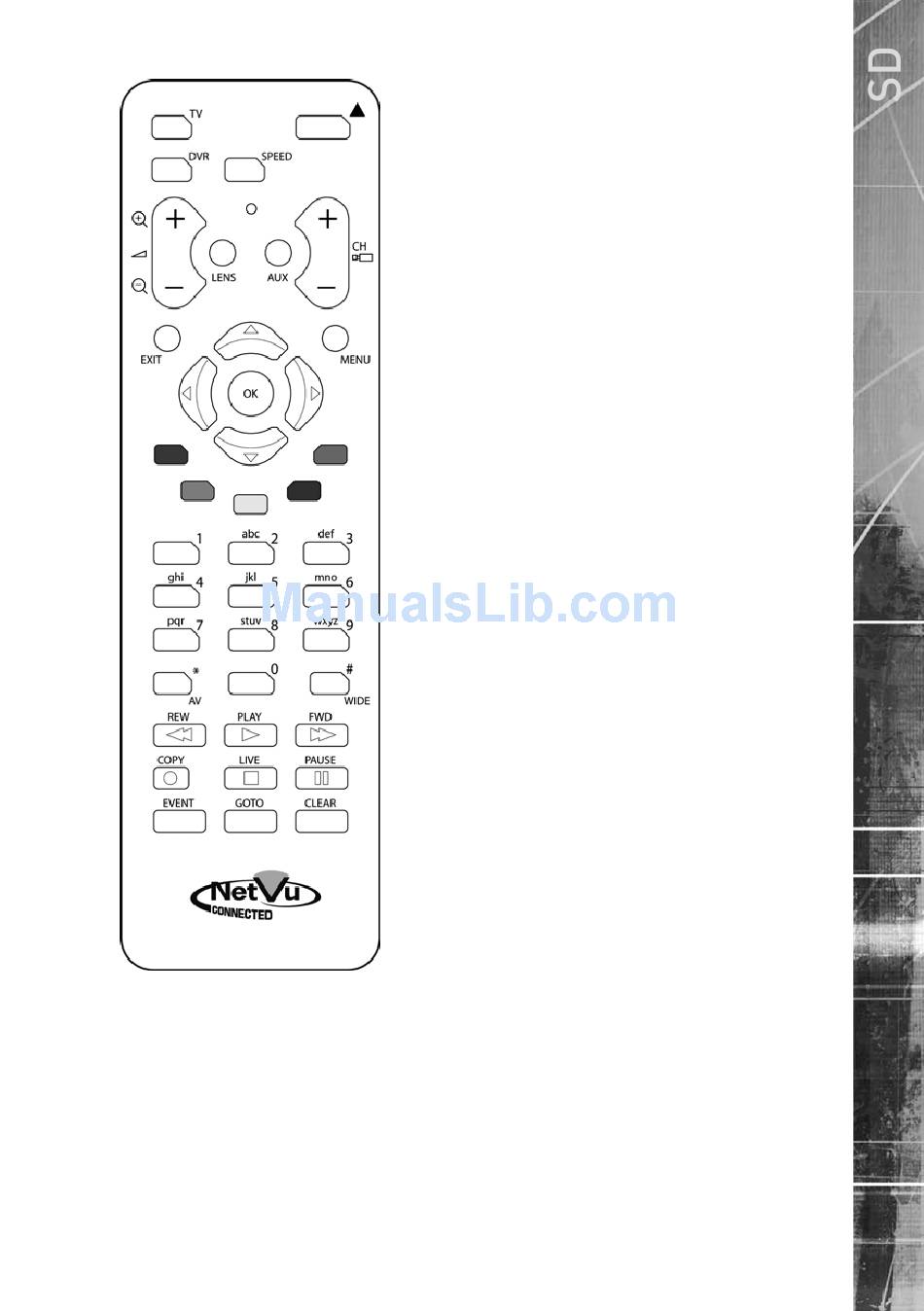

Using the IR Remote Control
Press the Menu button to access configuration menus. The menu will have a red indicator highlighting the first
option. Press the Down Directional button to highlight the next menu item, press OK to open the highlighted
menu item.
Press the Right Directional button to highlight the first editable parameter on the screen.
Use the Left/Right/Up/Down Directional buttons to move between fields.
Select OK to start editing an editable field. The field turns green.
Use the Up/Down Directional buttons to change the settings within an editable field.
dedicated micros ©2007
To control PTZ dome cameras
When a dome or PTZ camera is selected, the directional
buttons will control the dome movements, putting the unit
in Telemetry mode. There are two speeds supported on the
Ir remote control and these can be selected via the speed
key.
Note: To zoom in with the camera, use the Zoom IN button.
accessing the menus on a local monitor
The Configuration pages can be displayed on the local
monitor by pressing the MENU button on the Remote
control.
Note: If the IR Remote Control does not open the menu,
press the DVR button on the Remote to make sure it is in
DVR mode, then press the MENU button again.
Accessing the menus on a PC web
browser
Locating the Unit IP address
The IP address of the unit is required to access these pages.
The SD unit's IP address can be identified from the local
menu pages. Using the local monitor, press the MENU button
and then navigate to the Network menu to find the DHCP
assigned IP address.
If DNS is not to be used, it is important to set a fixed IP
address so that the same URL can be entered to contact the
unit every time.
If a permanent IP address is not assigned to the unit, it will
attempt to contact the DHCP server every time it starts up. If
for any reason, a DHCP server cannot allocate an IP address
to the unit, the encoder will use a default IP address. It is
recommended that dns (domain name server) be used as
assigning a name makes it easier for a remote user to locate
the unit.

Accessing the Configuration Web Pages

The unit can be configured using on the on-board web
pages. To access these:
1. Launch Internet Explorer (or other web browser package).
2. Type the URL for the unit (IP address or domain and unit
name).
3. The main menu page will be displayed.
