OWC Mercury Elite Pro Assembly Manual page 9

Chapter 2 - System Setup
OWC Mercury Elite Pro
2 SYSTEM SETUP
2.1 Hard Drive Assembly & Installation
(concluded)
➄

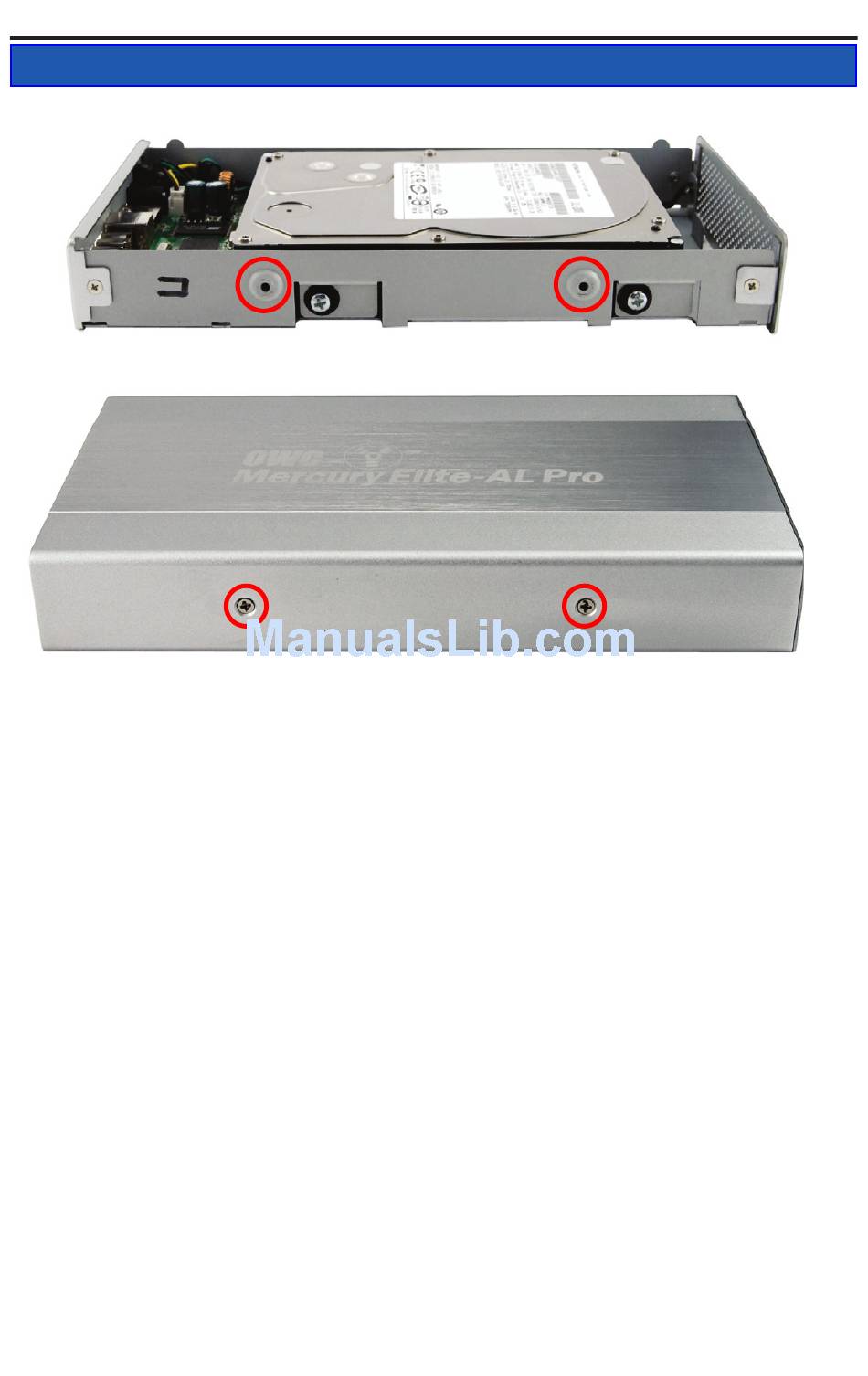

Screw holes on bottom
Once you have completed installation of your drive, turn the chassis so that the
ports are on your left as shown in the above picture. You can see the 2 screw
holes that the drive enclosure outer shell screws into circled. Slide the outer shell
onto the inner chassis from the rear and insert the 2 Phillips screws you removed
to start the assembly process. The enclosure is now fully assembled.
2.2 Computer Connections
The OWC Mercury Elite Pro requires external power to operate. Insert the power
adapter into a wall outlet and plug it in to the back of the OWC Mercury Elite Pro.
To use the OWC Mercury Elite Pro, connect any interface cable to the drive and
the computer. Then, turn the power switch to the ON position, and verify the blue
LED on the front of the drive is illuminated.
Your drive should mount on your computer's desktop, or a dialog box will appear
if you have a new, unformatted drive installed.
