OWC Mercury Elite Pro
Chapter 2 - System Setup
2 SYSTEM SETUP
2.1 Hard Drive Assembly & Installation
)
(continued

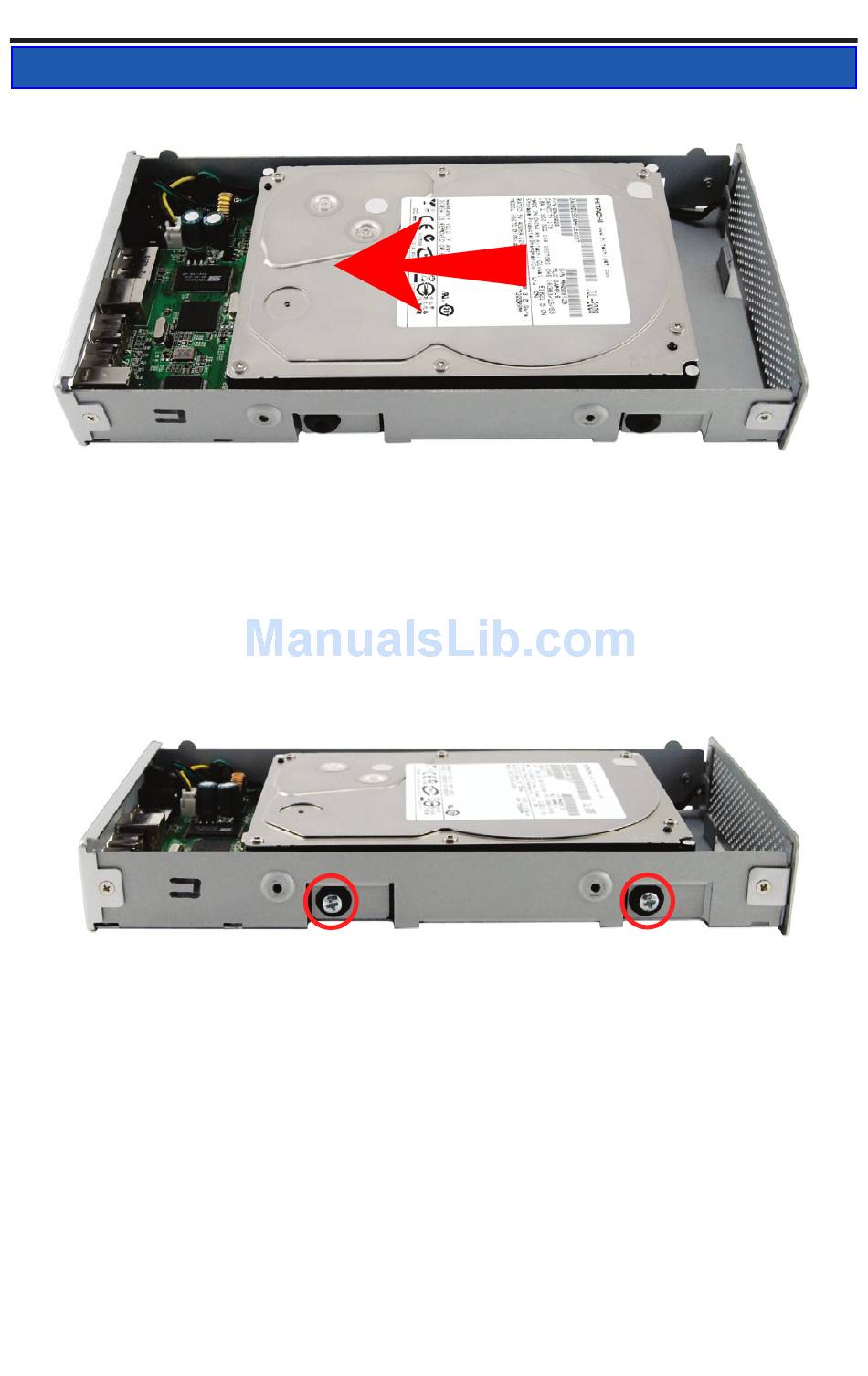

Place your drive mechanism into the chassis and onto the bridge card, and press
the drive towards the ports to firmly affix the drive into the SATA connector. You
may need to wiggle the drive from side to side to fit it in between the rubber
grommets that the drive is secured with. Be sure to not tear them when inserting
the drive into the chassis.
Insert (but not fully tighten) 2 of the included Phillips screws into the drive
mechanism through the rubber grommets on the side of the enclosure. Repeat
on the other side of the enclosure - there are 4 screws total. Once you have
inserted all 4 screws into the drive you can fully tighten them.
