1.4 Port View & Cable Connections
➀ ➁

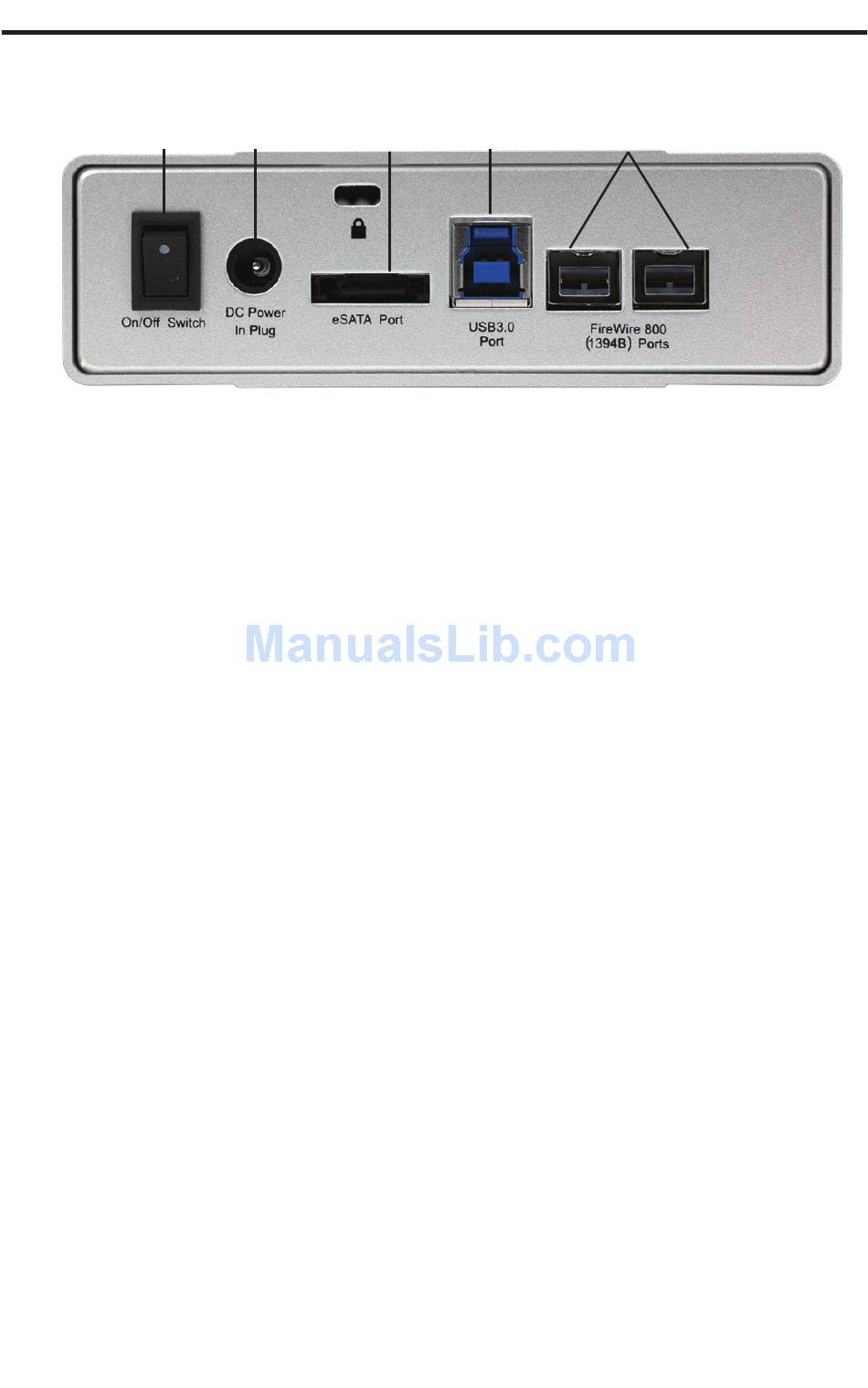

Cable Connections:
The OWC Mercury Elite Pro has multiple interfaces to work with any computer
system.
➀
On/Off Switch - Turn the OWC Mercury Elite Pro on and off here.
➁
DC IN port - Attach the included 12V external power supply here.
➂
eSATA Port - The utmost in speed. If you're trying to make your OWC Mercury
Elite Pro the fastest it can be, attach an eSATA cable to this port.
➃
USB 3.0 Port - Connect one of your computer's USB ports to the OWC Mercury
Elite Pro here using the included cable. Great for cross platform use or to connect
to systems that do not have an eSATA or FireWire interface.
➄
FireWire 800 (1394B) Ports - Connect one FireWire 800 port to your
computer using the included cable and have an extra FireWire 800 port to daisy
chain to additional peripherals with!

1.5 Detailed View

1.5.1 LED Indicator

The OWC Mercury Elite Pro has a single cool blue LED at the front of the hard
drive enclosure. It will illuminate blue when powered on, and flash on drive
activity (both reading and writing).
➃
➂
