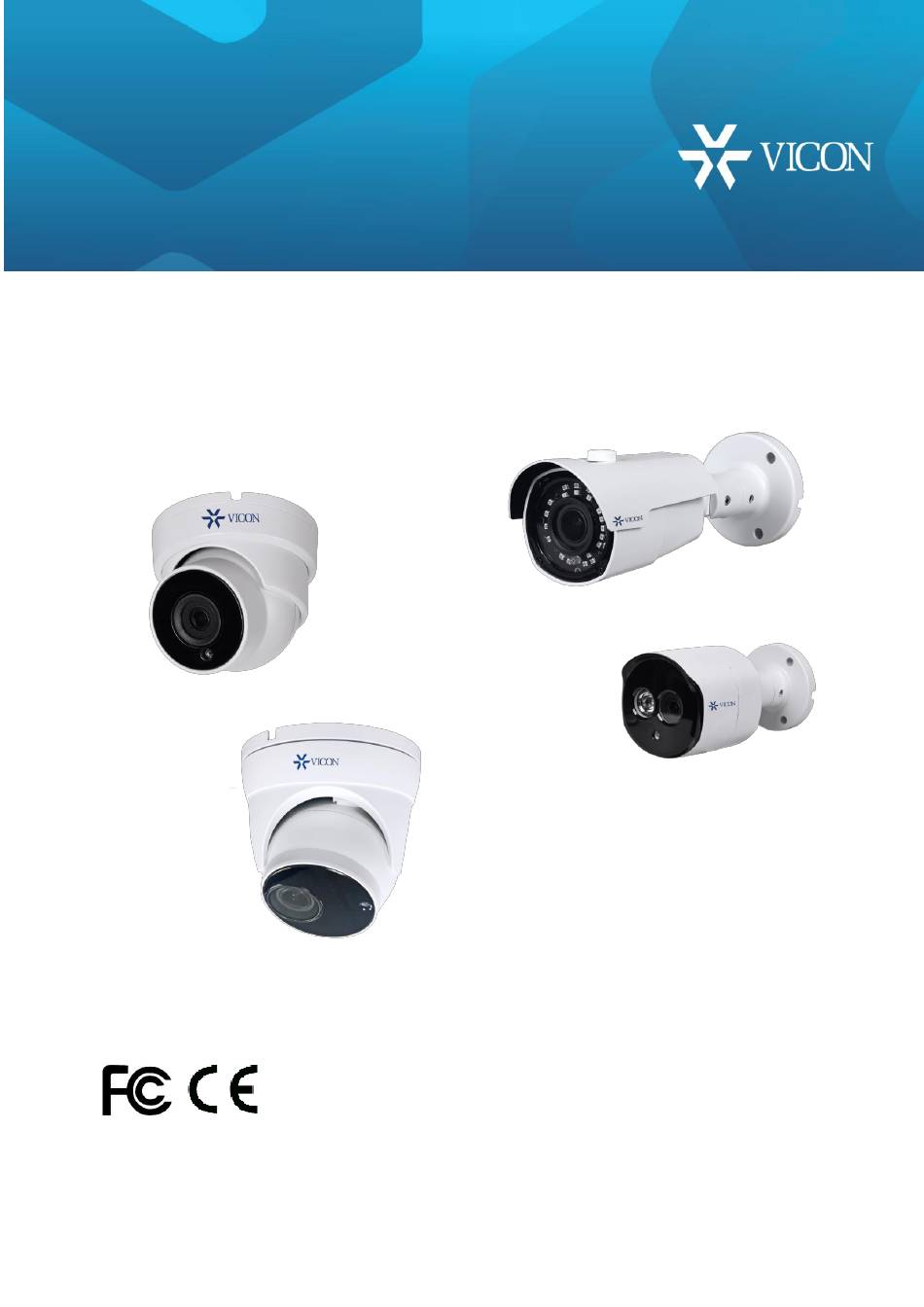

Quick Guide
V810B Network Outdoor Bullet Camera

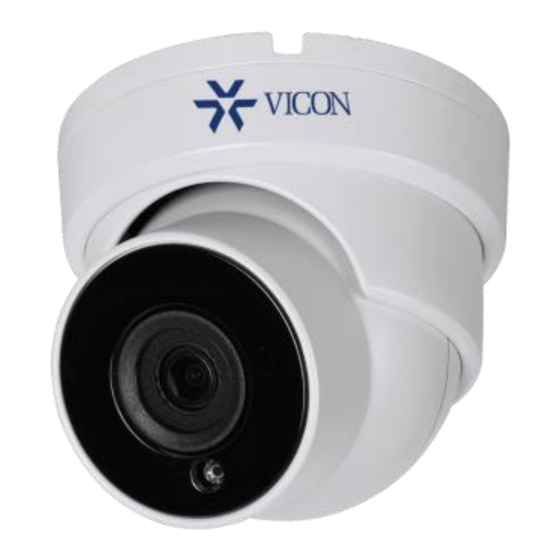

V930D/V9501D Network Outdoor Turret Camera
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform
precisely as described in the documentation. This system has not been designed to be
used in life-critical situations and must not be used for this purpose.
Document Number: 8009-8296-20-02 Product specifications subject to change without
notice. Issued: 3/19 Copyright © 2019 Vicon Industries Inc. All rights reserved.
XX296-20-02
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
(800-348-4266) UK: 44/(0) 1489-566300
www.vicon-security.com
Advertisement
Table of Contents
Related Manuals for Vicon V810B
Summary of Contents for Vicon V810B
- Page 1 XX296-20-02 Vicon Industries Inc. Tel: 631-952-2288) Fax: 631-951-2288 Vicon Industries Inc. does not warrant that the functions contained in this equipment will Toll Free: 800-645-9116 meet your requirements or that the operation will be entirely error free or perform 24-Hour Technical Support: 800-34-VICON precisely as described in the documentation.
-
Page 2: Explanation Of Graphical Symbols
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 3: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 5 Introduction The information in this manual provides quick installation and setup procedures for the V810B series and V930D/V9501D series network cameras. These units should only be installed by a qualified technician using approved materials in conformance with federal, state, and local codes. Read these instructions thoroughly before beginning an installation.
-
Page 6: Installation
Installation For the network camera to operate, it is necessary to connect a network cable for data transmission and power connection from a power adapter. 2.1 Installation Carefully remove the contents from the box. • Fixed Bullet Camera To mount the bullet camera, fix the base of the camera with the three screws provided in the accessory kit. - Page 7 • MVF Bullet Camera 1) To mounting the bullet camera, fix the base of the camera 2) Adjust the camera angle and tighten with the three screws provided in the accessory kit. the mount using the L-wrench. Plastic Anchor Mounting Screw L-wrench 3) Adjust sun-shield position.
- Page 8 • Fixed Turret Camera 1) Secure the template sheet in place at the 2) Remove the collar of the camera by proper position. rotating it counterclockwise. Collar Template sheet 3) Fix the base of the camera with the three 4) Mount the collar back by rotating it screws provided in the accessory kit.
- Page 9 1) Secure the template sheet in place at the 2) Remove the collar of the camera by rotating proper position. it counterclockwise. Collar Template sheet 3) Fix the base of the camera with the three 4) Mount the collar back by rotating it clockwise. screws provided in the accessory kit.
-
Page 10: Extension Cable
Extension Cable Item Description Ethernet, RJ-45 port compatible RJ-45 with 10/100Mbps PoE Modular Jack DC Jack Main Power, DC Jack, 12 VDC Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub. -
Page 11: Network Connection And Ip Assignment
2.2 Network Connection and IP assignment The network camera is designed for use on an Ethernet network and requires an IP address for access. Most networks today have a DHCP server that automatically assigns IP addresses to connected devices. By the factory default, your camera is set to obtain the IP address automatically via DHCP server. -
Page 12: Operation
Operation The network camera can be used with Windows® operating system and browsers. The recommended browsers are Internet Explorer®, Safari®, Firefox®, Opera® and Google® Chrome® with Windows. Note: To view streaming video in Microsoft® Internet Explorer, set your browser to allow ActiveX controls. Note: Some screens may appear different (i.e., color scheme) depending on the firmware version, but the functionality is the same or similar. -
Page 13: Access From The Internet
3.2 Access from the Internet Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT-traversal feature, which will attempt to automatically configure the router to allow access to the network camera. -
Page 14: General Controls
1) General controls Live View Page Setup Page Help Page The video drop-down list allows the selection of a customized or pre-programmed video stream on the Live View page. Stream profiles are configured under Setup > Basic Configuration > Video &... -
Page 15: Video Streams
3) Video Streams The network camera provides several image and video stream formats. Your requirements and the properties of your network will determine the type you use. The Live View page of the network camera provides access to H.264, H.265 and Motion JPEG video streams and to the list of available video streams. -
Page 16: Network Camera Setup
3.5 Network Camera Setup This section describes how to configure the network camera and is intended for product Administrators, who have unrestricted access to all the Setup tools, and Operators, who have access to the settings for Basic, Live View, Video & Image, Event, and System Configuration. The network camera is configured by clicking Setup in the top right-hand corner of the Live View page.
